MARS

SERIES 28

Thông số kỹ thuật sản phẩm

• Van bi 2 mảnh chống cháy (Fire safe)

• Lưu lượng toàn phần, thiết kế hàn kín

• Kích thước: từ 1/4" đến 3"

• Áp suất tối đa: 1000 PSI

• Tiêu chuẩn chống cháy: API 607

• Thân van: CF8M (Inox) / WCB (Thép carbon đúc)

• Đệm ghế: PTFE / RTFE tiêu chuẩn hoặc tùy chọn theo yêu cầu

• Đầu nối: NPT, BST, BSPT

• Tùy chọn: theo tiêu chuẩn NACE MR0175 (chống ăn mòn – theo yêu cầu)

• Tùy chọn: khoảng cách mặt bích theo tiêu chuẩn DIN 3202 M3 (nếu yêu cầu)

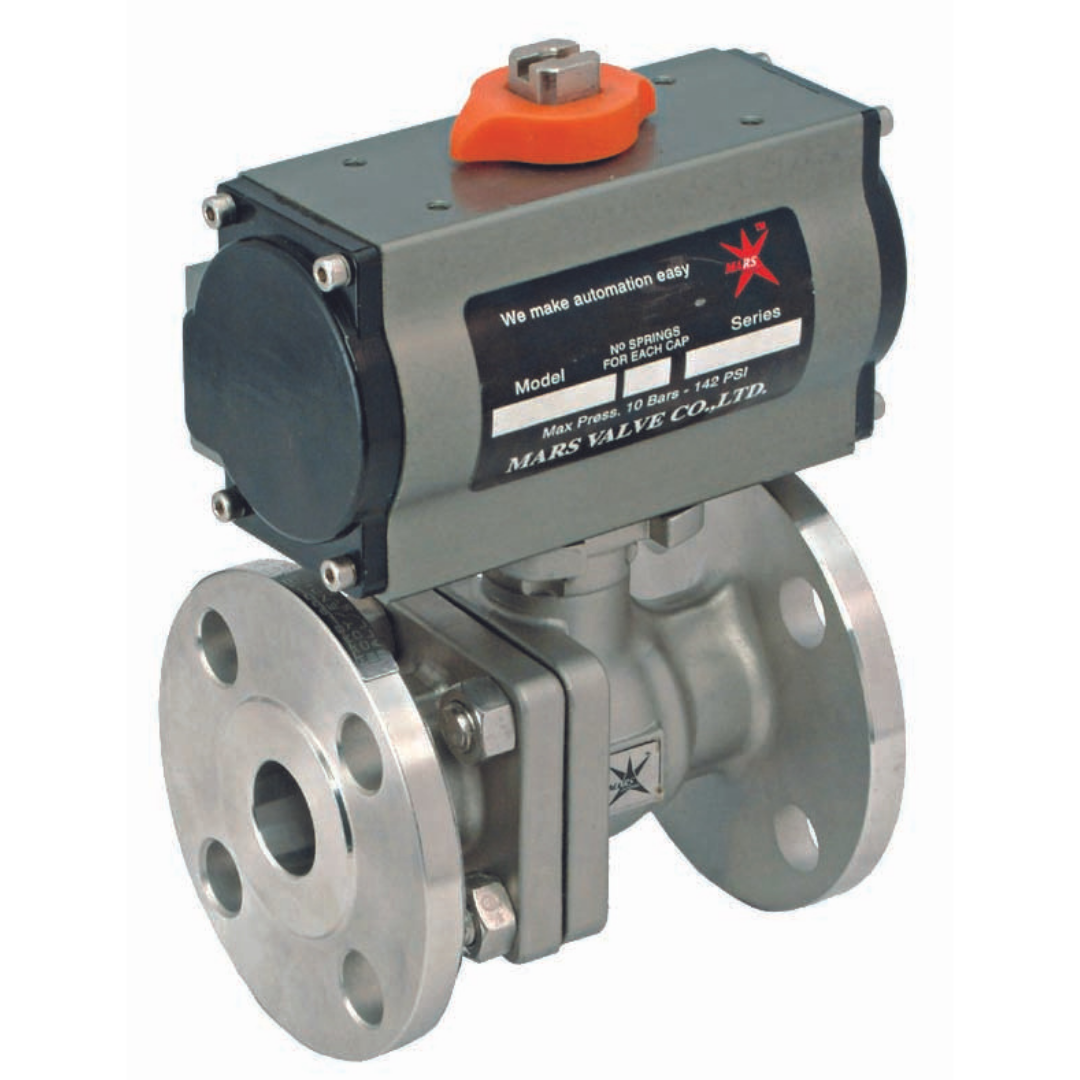

SERIES 90D / 90DX with Air Mars

Product specification

2-piece Fire safe Flanged Ball Valve
ANSI Class 150, Class 300, PN16/40, JIS 10K, JIS 20K
Full port
Face to face: ANSI B16.10, EN 558-1, GR.1/GR.27 (DIN 3202-F1, F4/F5)
Size: 1/2"~12"
API 607
Body: CF8M/ WCB/ Special Alloy based on request
Seats: PTFE/RTFE standard or other options based on request
Available in Double body gasket design
Available with 30/60/90 degree V-port ball for flow control
Optional NACE MR0175 based on request

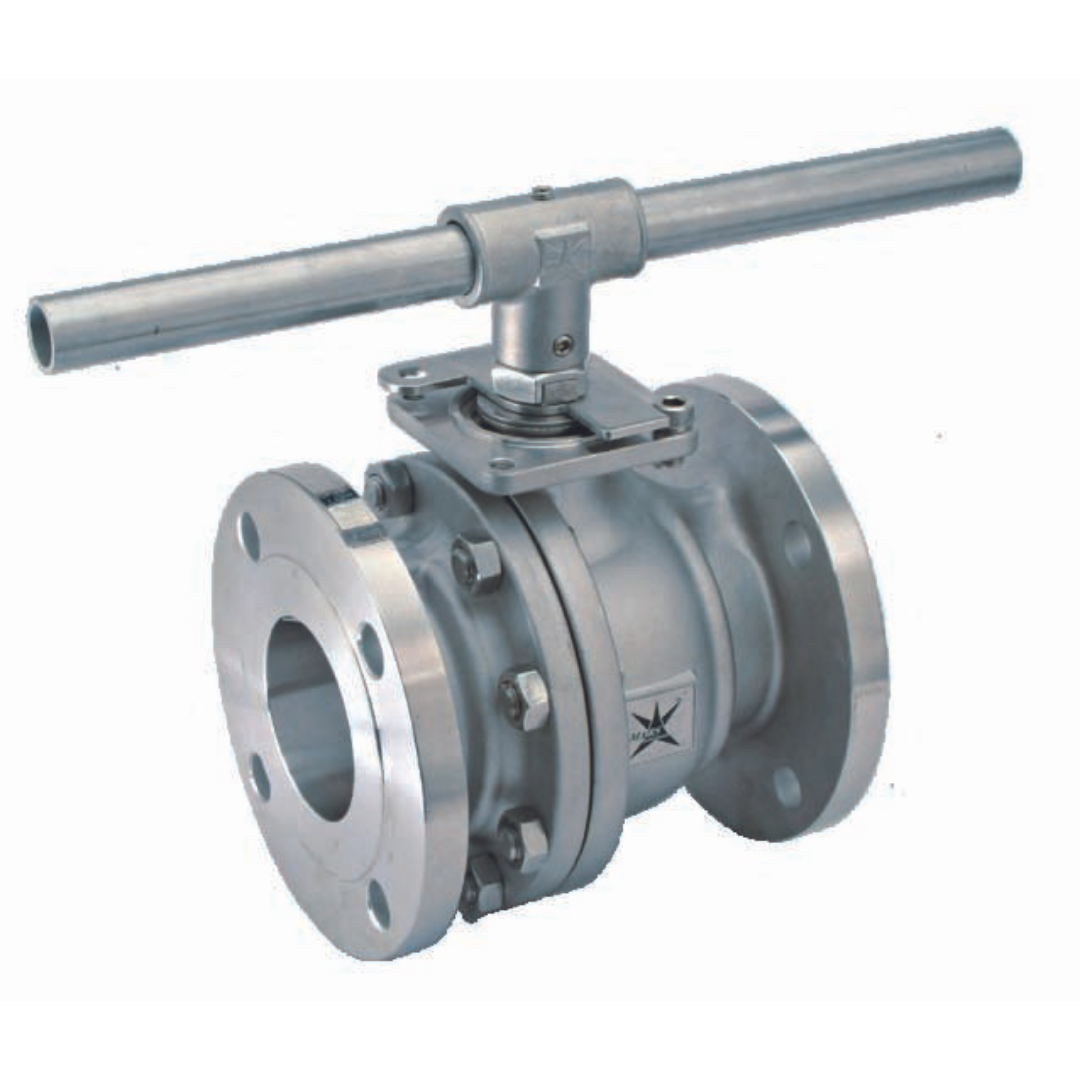

SERIES 90 / 90X

Product specification

2-piece Fire safe Flanged Ball Valve
ANSI Class 150, PN16/40, JIS 5K
Full port
Face to face: ANSI B16.10, EN 558-1, GR.1/GR.27 (DIN 3202-F1, F4/F5)
Size: 1/2"~4"
API 607
Body: CF8M/ WCB/ Special Alloy based on request
Seats: PTFE/RTFE standard or other options based on request
Available in Double body gasket design
Available with 30/60/90 degree V-port ball for flow control
Optional NACE MR0175 based on request

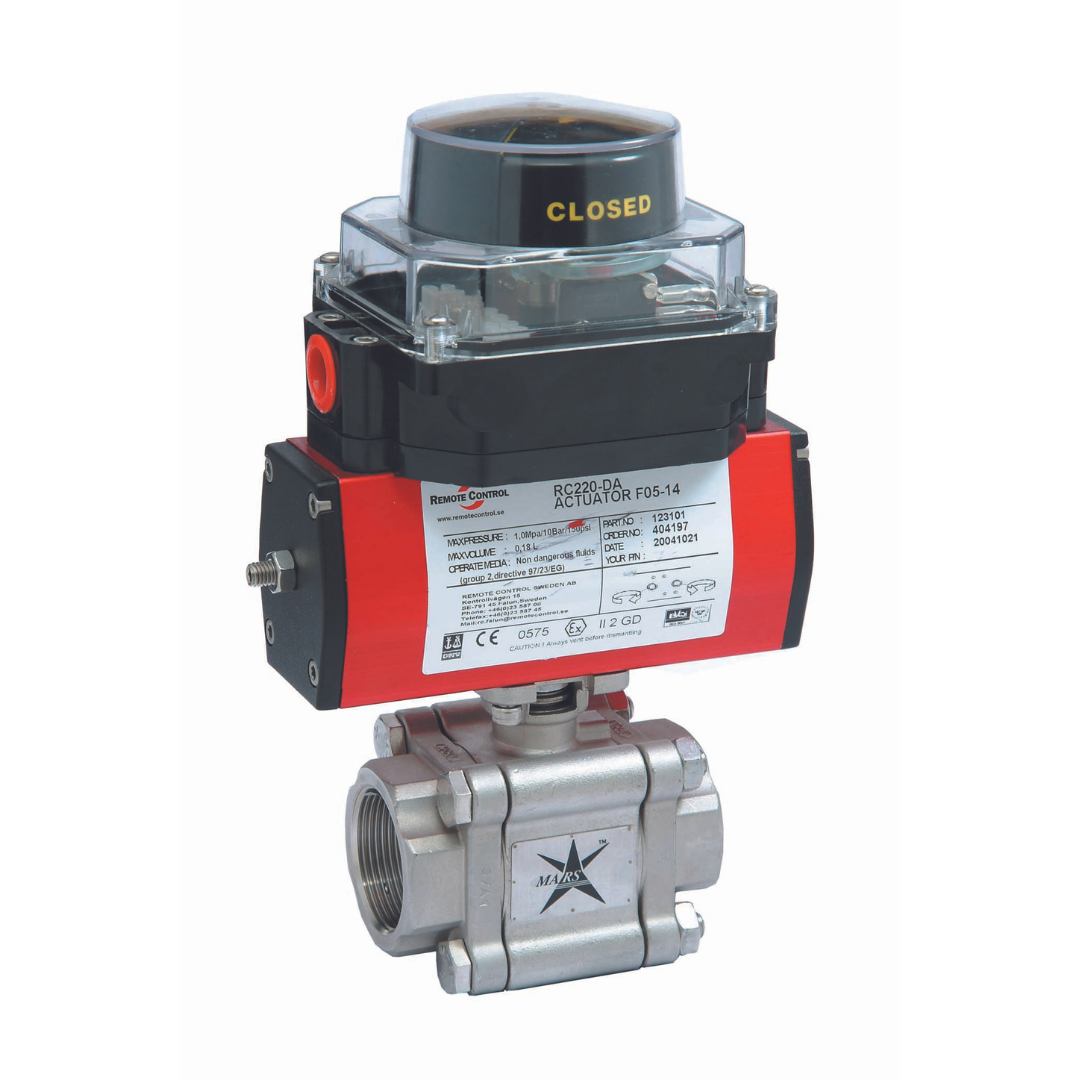

SERIES 88 / 88X with Air Mars

Product specification

3-piece Fire safe Ball Valve
Full & Reduced port
Direct mount design
Size: 1/4"~4"
Pressure rating: 2000 PSI max.
API 607
Body: CF8M/ WCB
Seats: PTFE/RTFE standard or other options based on request
Ends: Threaded, Butt weld, Socket weld, Flanged, Extended BW, ISO orbital welding
Available in Double body gasket design
Available with 30/60/90 degree V-port ball option for flow-control requirement
Optional NACE MR0175 based on request

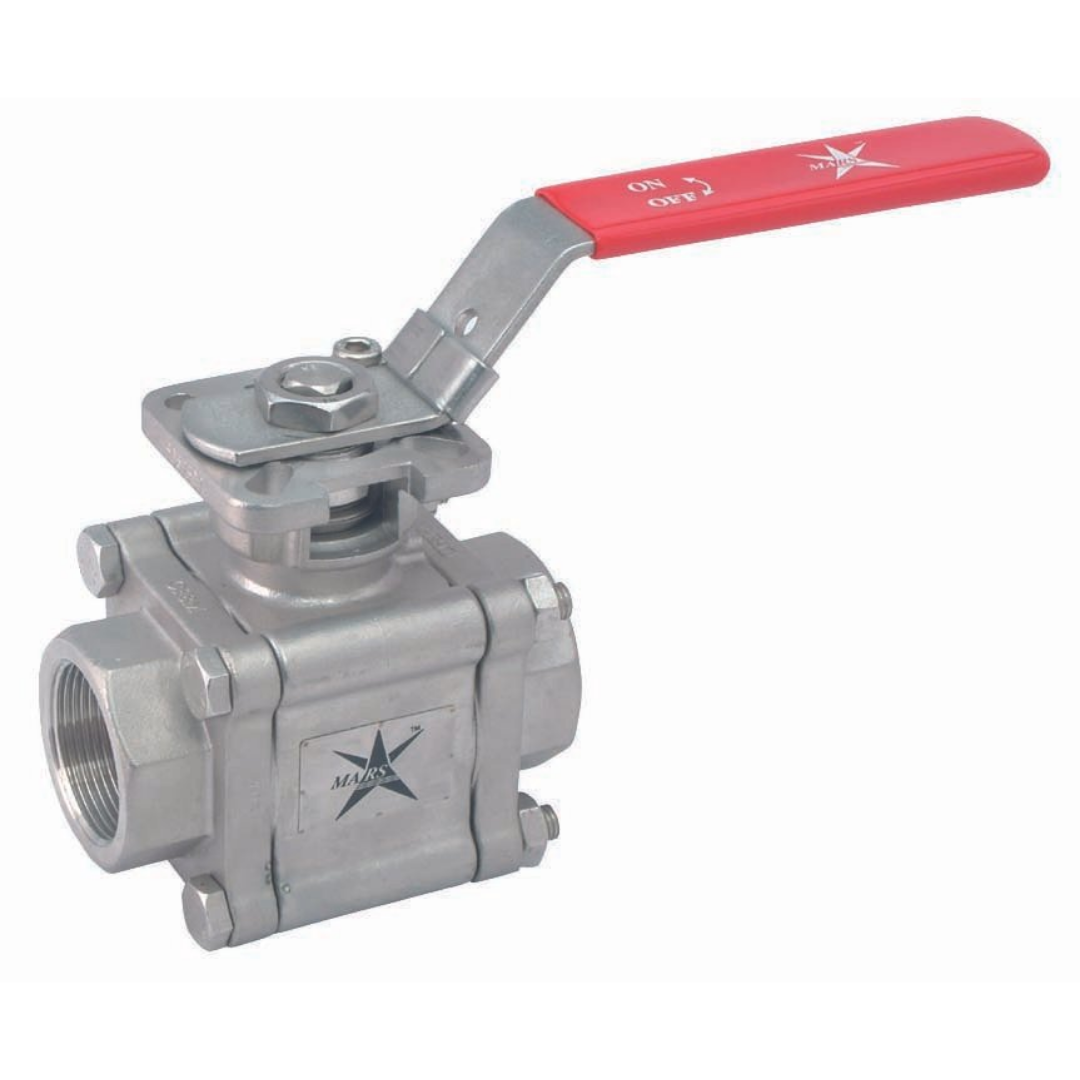

SERIES 88 / 88X

Product specification

3-piece Fire safe Ball Valve
Full & Reduced port
Direct mount design
Size: 1/4"~4"
Pressure rating: 2000 PSI max.
API 607
Body: CF8M/ WCB
Seats: PTFE/RTFE standard or other options based on request
Ends: Threaded, Butt weld, Socket weld, Flanged, Extended BW, ISO orbital welding
Available in Double body gasket design
Available with 30/60/90 degree V-port ball option for flow-control requirement
Optional NACE MR0175 based on request

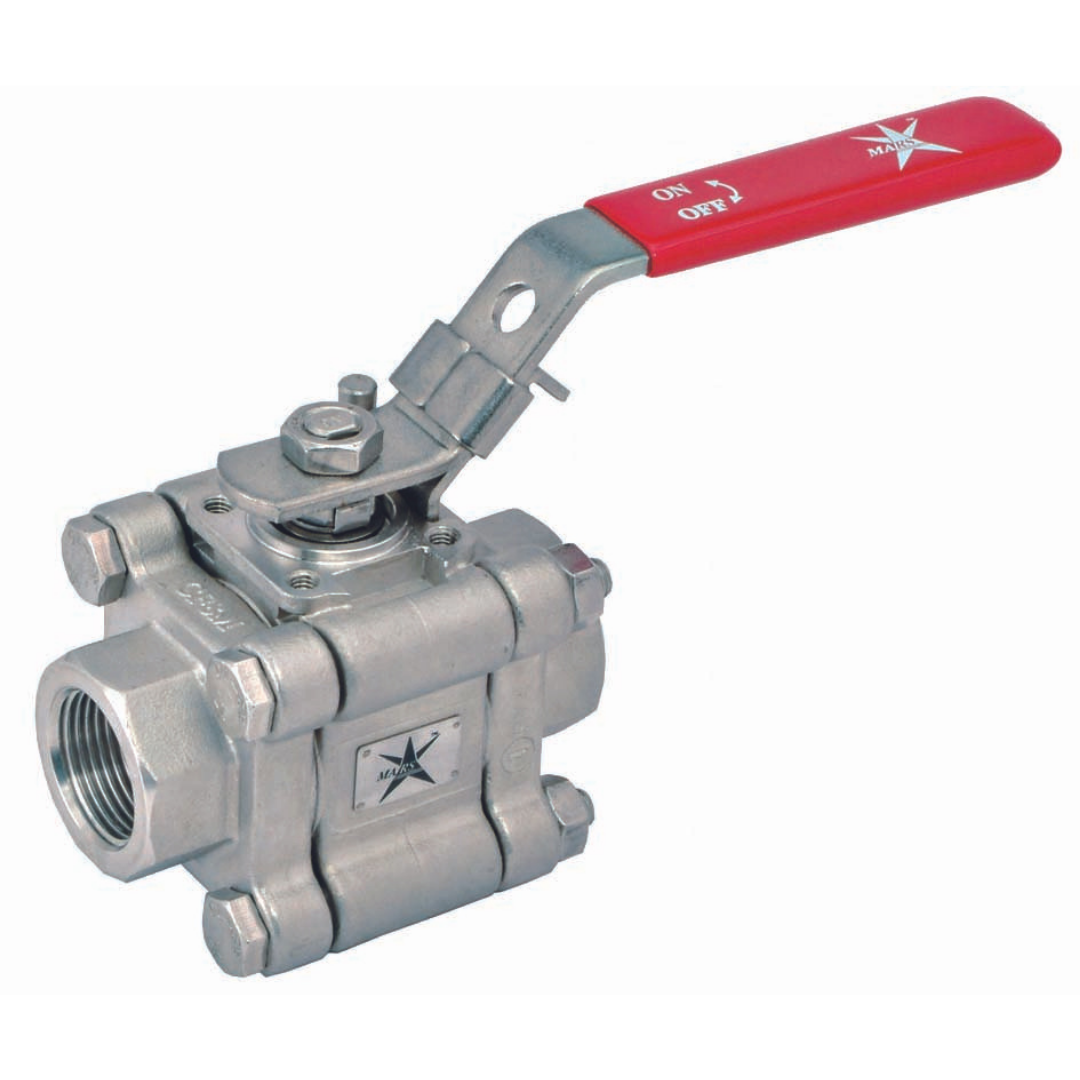

SERIES 83

Product specification

3-piece Fire safe Ball Valve
Full & Reduced port
Non-direct mount design
Size: 1/4"~2"
Pressure rating: 2000 PSI max.
API 607
Body: CF8M/ WCB
Seats: PTFE/RTFE standard or other options based on request
Ends: Threaded, Butt weld, Socket weld, Flanged, Extended BW, ISO orbital welding
Optional NACE MR0175 based on request
Available with 30/60/90 degree V-port ball option for flow-control requirement

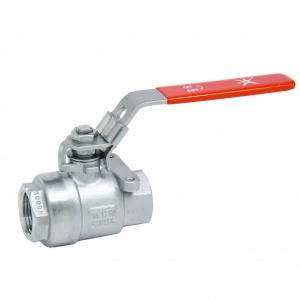

SERIES 28

Product specification

2-piece Fire safe Ball Valve
Full port, seal welding design
Size: 1/4"~3"
Pressure rating: 1000 PSI max.
API 607
Body: CF8M/ WCB
Seats: PTFE/RTFE standard or other options based on request
Ends: NPT, BST, BSPT
Optional NACE MR0175 based on request
Optional FACE TO FACE ACC. TO DIN 3202 M3
