Vacuum Conveyor type HopperVac - VTS

Vacuum Conveyor type HopperVac combines the capabilities of a Vacuum Transfer System with a storage unit, offering versatile functionality in industrial settings. With its increased capacity to accumulate products within its body, the HopperVac provides a comprehensive solution for conveying, storing, and dosing powders.

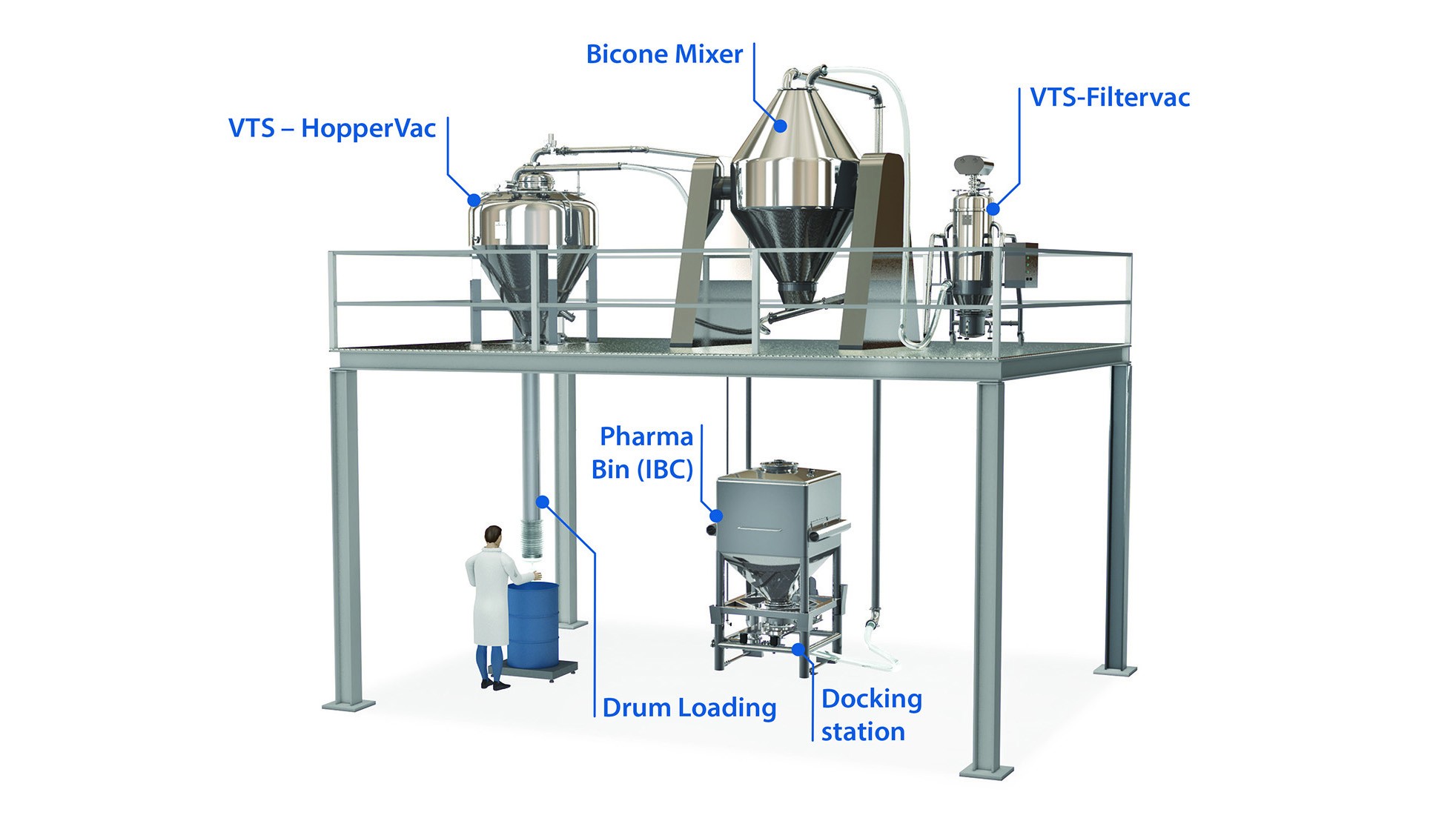

Applications: The image above represents the system for conveying, blending, and dosing powders. The process starts by loading the Bicone from the Bin using a FilterVac Conveyor, which creates negative pressure inside the Bicone. It causes powder suction from one container into another due to the pressure difference.

After the Double Cone Mixer blends the powder, it goes into the HopperVac Conveyor, which plays the role of a Controlled Dosing System for charging material into the Drums. All described operations are carried out through a closed system (Continuous Liner and Docking Station), preserving product integrity and eliminating contamination risks.
