SERIES 28
Product specification
2-piece Fire safe Ball Valve Full port, seal welding design Size: 1/4"~3" Pressure rating: 1000 PSI max. API 607 Body: CF8M/ WCB Seats: PTFE/RTFE standard or other options based on request Ends: NPT, BST, BSPT Optional NACE MR0175 based on request Optional FACE TO FACE ACC. TO DIN 3202 M3

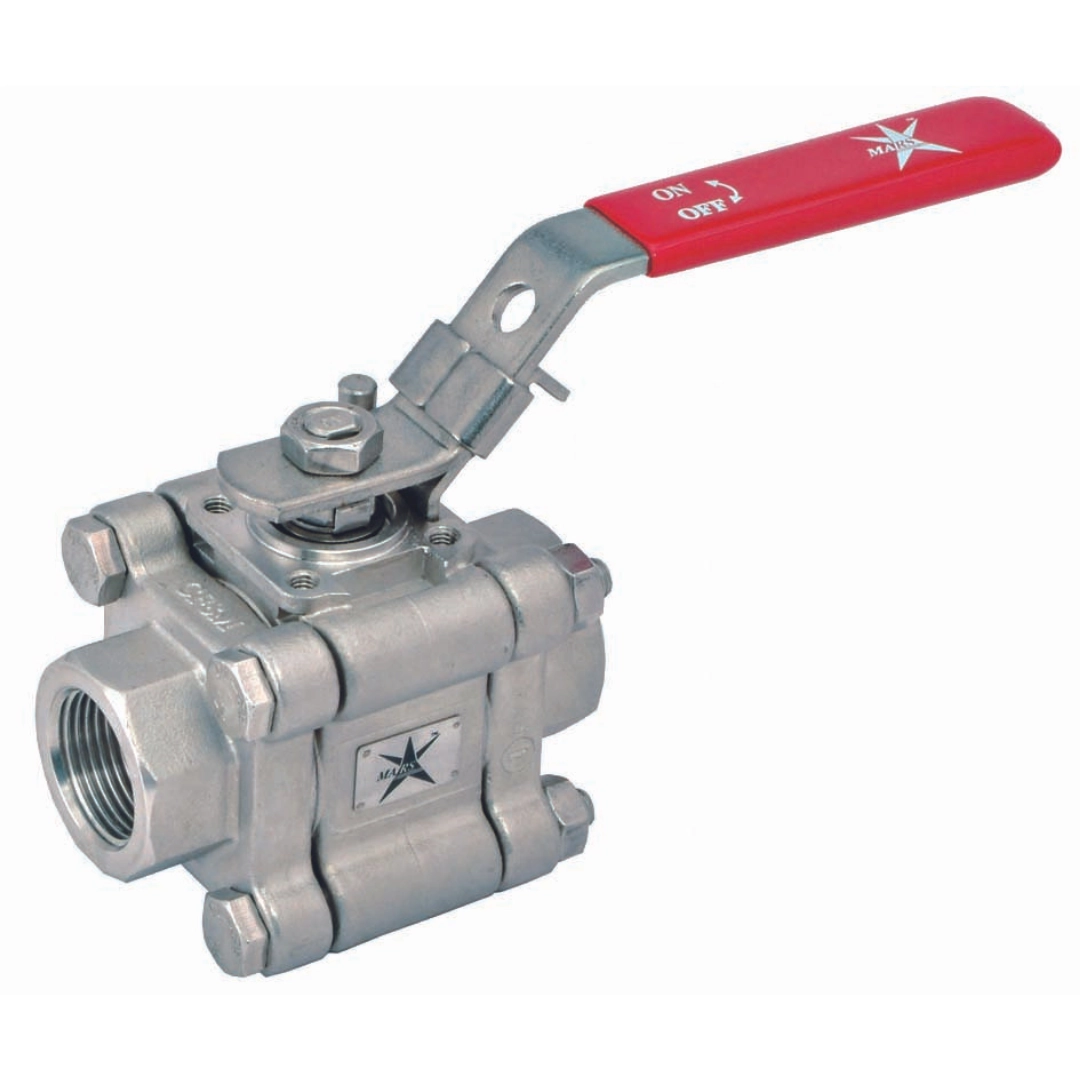

SERIES 83
3-piece Fire safe Ball Valve Full & Reduced port Non-direct mount design Size: 1/4"~2" Pressure rating: 2000 PSI max. API 607 Body: CF8M/ WCB Seats: PTFE/RTFE standard or other options based on request Ends: Threaded, Butt weld, Socket weld, Flanged, Extended BW, ISO orbital welding Optional NACE MR0175 based on request Available with 30/60/90 degree V-port ball option for flow-control requirement

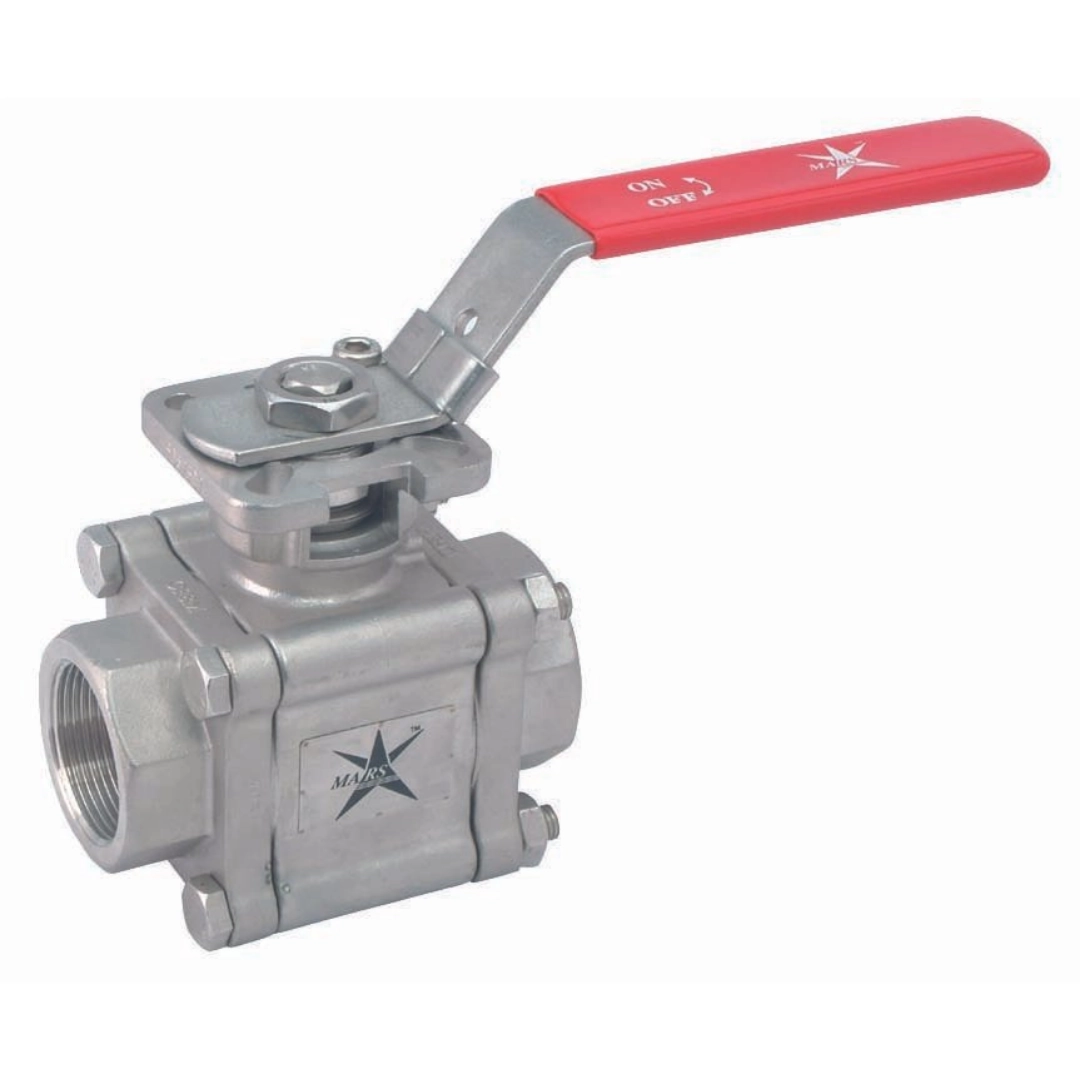

SERIES 88 / 88X
3-piece Fire safe Ball Valve Full & Reduced port Direct mount design Size: 1/4"~4" Pressure rating: 2000 PSI max. API 607 Body: CF8M/ WCB Seats: PTFE/RTFE standard or other options based on request Ends: Threaded, Butt weld, Socket weld, Flanged, Extended BW, ISO orbital welding Available in Double body gasket design Available with 30/60/90 degree V-port ball option for flow-control requirement Optional NACE MR0175 based on request

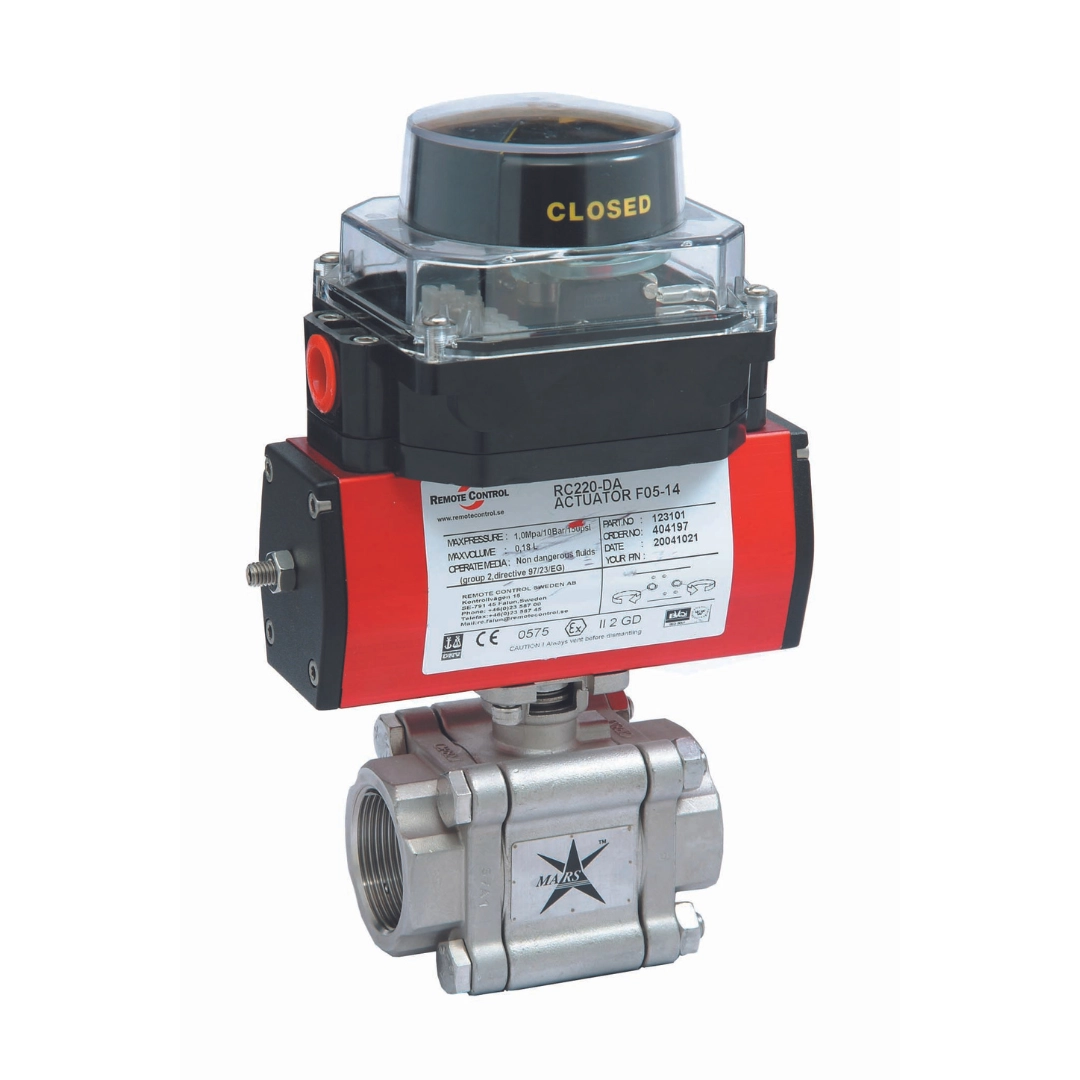

SERIES 88 / 88X with Air Mars

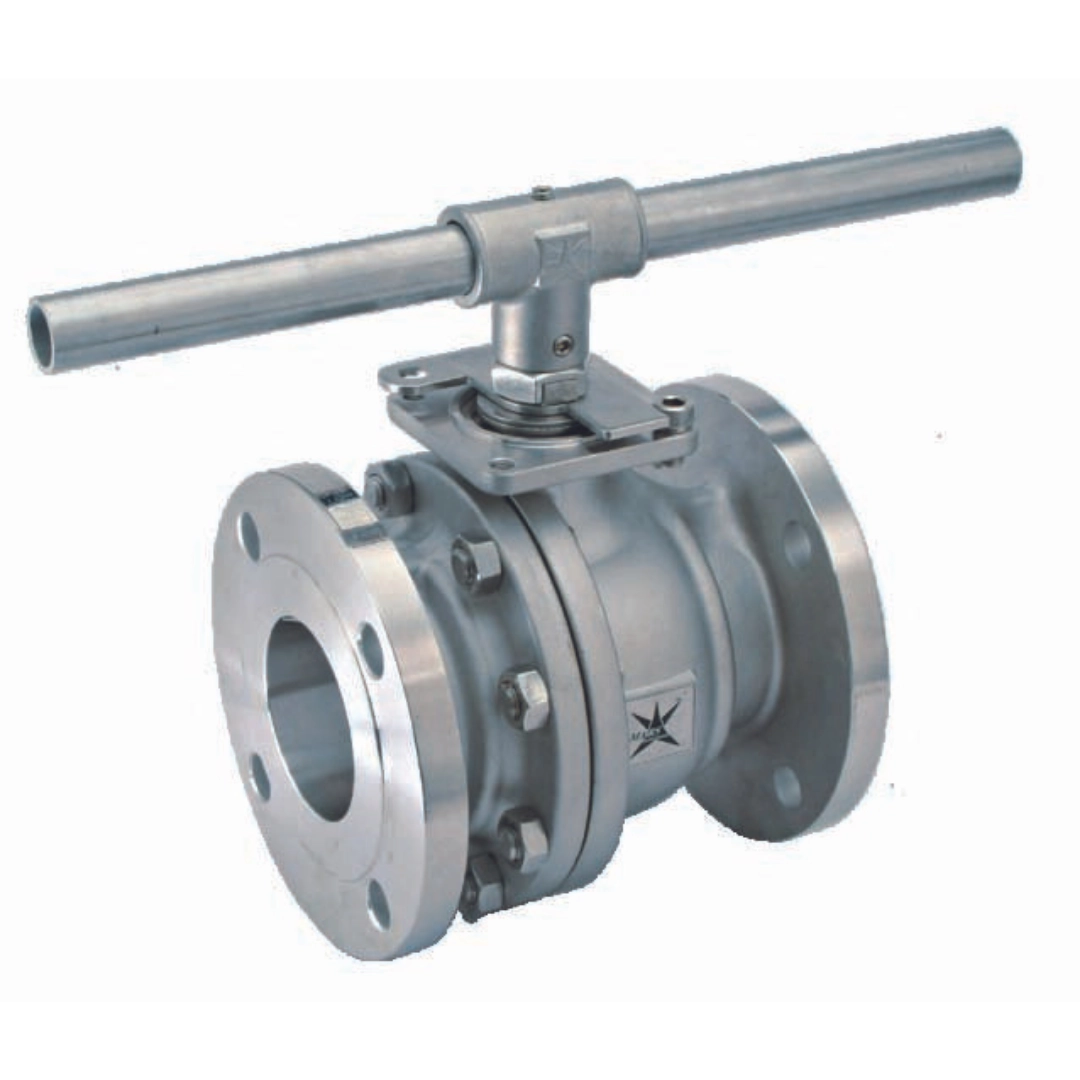

SERIES 90 / 90X
2-piece Fire safe Flanged Ball Valve ANSI Class 150, PN16/40, JIS 5K Full port Face to face: ANSI B16.10, EN 558-1, GR.1/GR.27 (DIN 3202-F1, F4/F5) Size: 1/2"~4" API 607 Body: CF8M/ WCB/ Special Alloy based on request Seats: PTFE/RTFE standard or other options based on request Available in Double body gasket design Available with 30/60/90 degree V-port ball for flow control Optional NACE MR0175 based on request
SERIES 90D / 90DX with Air Mars
2-piece Fire safe Flanged Ball Valve ANSI Class 150, Class 300, PN16/40, JIS 10K, JIS 20K Full port Face to face: ANSI B16.10, EN 558-1, GR.1/GR.27 (DIN 3202-F1, F4/F5) Size: 1/2"~12" API 607 Body: CF8M/ WCB/ Special Alloy based on request Seats: PTFE/RTFE standard or other options based on request Available in Double body gasket design Available with 30/60/90 degree V-port ball for flow control Optional NACE MR0175 based on request
Thông số kỹ thuật sản phẩm
Van bi 2 mảnh chống cháy (Fire safe)
Lưu lượng toàn phần, thiết kế hàn kín
Kích thước: từ 1/4" đến 3"
Áp suất tối đa: 1000 PSI
Tiêu chuẩn chống cháy: API 607
Thân van: CF8M (Inox) / WCB (Thép carbon đúc)
Đệm ghế: PTFE / RTFE tiêu chuẩn hoặc tùy chọn theo yêu cầu
Đầu nối: NPT, BST, BSPT
Tùy chọn: theo tiêu chuẩn NACE MR0175 (chống ăn mòn – theo yêu cầu)
Tùy chọn: khoảng cách mặt bích theo tiêu chuẩn DIN 3202 M3 (nếu yêu cầu)
Product Details:
Valve size: 1/4"-4" Body material: CF8/CF8M/CF3/CF3M/WCB Seal material: Dakin/PTFE seal End connection: BSP/BSPT/NPT/G Pressure/temperature: ASME B 16.34 Design: ASME B 16.34 Test: API 598 Application: Water、Steam、Oil、Gas
