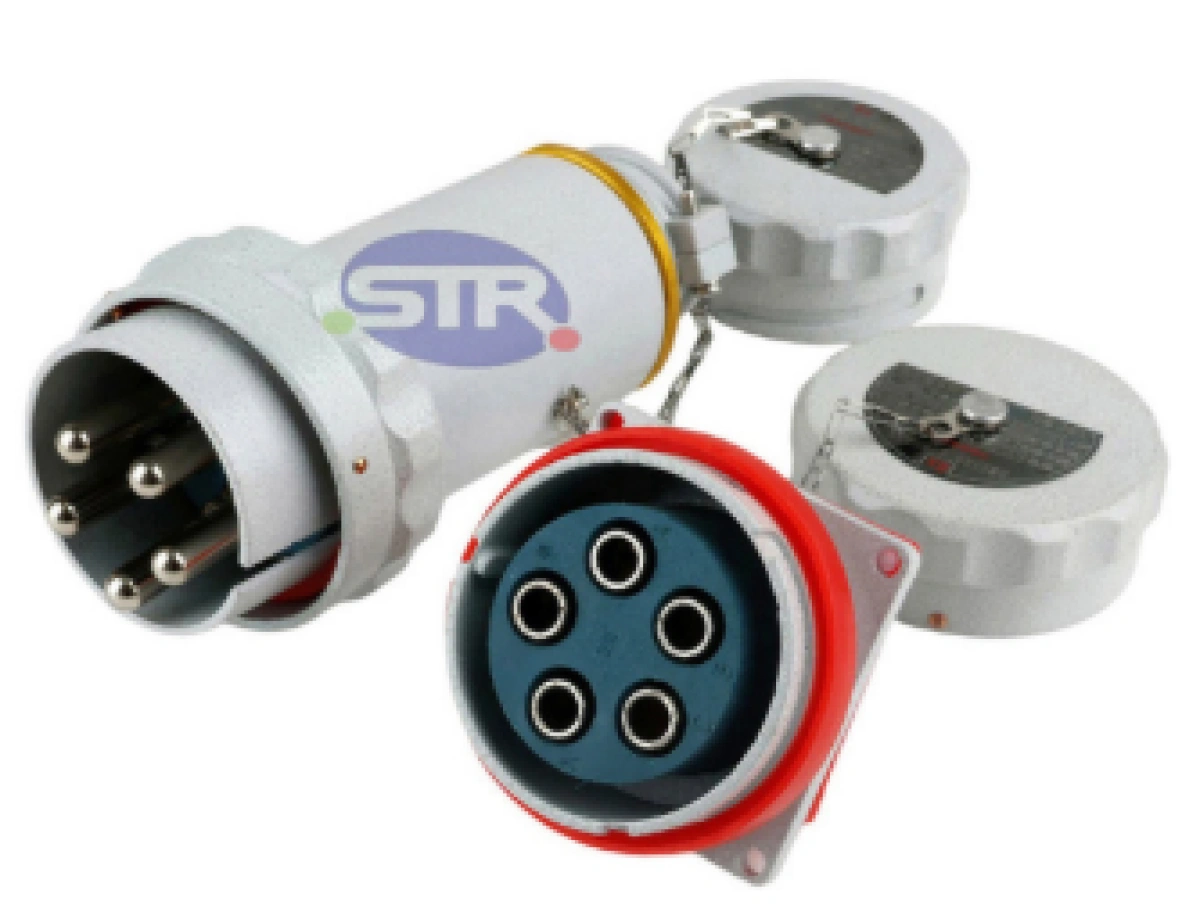

Explosion-Proof Non-Sparking Plug And Socket YZ/YT
| Scope of Application | Explosion-Proof Marking | Rated Voltage | Rated Current | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|---|
| Zone 1 & 2 zone 20, 21 & 22 |
Ex nA IIC T4 Gc | 220V/380V | 15-400A | IP65 | WF1*WF2 |
| Naming Convention | Model | Rated Voltage | Rated Current | Number of Poles | Applicable Cable Specifications |
|---|---|---|---|---|---|
| Single-phase, three-pole | 15YT/GT/YZ | 250V | 15A | 1P+N+PE | 3*1.5/3*2.5 |
| 25YT/GT/YZ | 25A | 3*2.5/3*4 | |||
| 60YT/GT/YZ | 60A | 3*6/3*10 | |||
| Three-phase, four-pole | 15YT/GT/YZ | 400V/500V | 15A | 3P+N | 4*1.5/4*2.5 3*2.5/1*1.5 |
| 25YT/GT/YZ | 25A | 4*2.5/4*4 3*4/1*2.5 |
|||
| 60YT/GT/YZ | 60A | 4*6/4*10 3*10+1*6 |
|||
| 100YT/GT/YZ | 100A | 4*16/4*25 3*25+1*10 |
|||
| 150YT/GT/YZ | 150A | 3*35+1*10 3*35+1*16 |
|||
| 200YT/GT/YZ | 150A | 3*50+1*16 3*50+1*25 |
|||
| 300YT/GT/YZ | 300A | 3*70+1*35 3*90+1*50 |
|||
| Three-phase, five-pole | 20YT/GT/YZ | 400V/500V | 20A | 3P+N+PE | 5*2.5/5*4 |
| 60YT/GT/YZ | 60A | 5*6/5*10 | |||
| 100YT/GT/YZ | 100A | 5*16/5*25 | |||
| 150YT/GT/YZ | 150A | 5*25 3*35+2*10 |
|||
| 200YT/GT/YZ | 200A | 5*50 3*35+2*16 |
GTZ-15-300 YT/GZ-4 Series Three-Phase Spark-Free Connectors are suitable for power distribution connections in petroleum exploration, drilling platforms, electrical circuits, and MCC rooms.
They feature reliable contact, excellent sealing performance, and provide rainproof, shockproof, and dustproof capabilities.
The connector consists of a plug and a socket. The plug is movable (YT), while the socket offers three configurations:
1. Panel-mounted fixed type (GZ)
2. Removable (YZ)
3. Tilted Fixed (XGZ)
The plug and socket utilize a bayonet-style quick-connect mechanism. Contact terminals are crimped onto cable ends for secure attachment. Contacts are positioned and supported by elastic tooth rings. The plug features a detachable structure for easy assembly and disassembly. Plug contacts are silver-plated, and the housing is manufactured from die-cast aluminum alloy.
| Specifications/Dimensions | 15A | 25A | 60A | 100A | 150A | 200A | 300A |
|---|---|---|---|---|---|---|---|
| L1 | 130 | 144 | 153 | 166 | 177 | 195 | 200 |
| L2 | 55 | 64 | 72 | 85 | 92 | 100 | 100 |
| L3 | 132 | 142 | 145 | 173 | 188 | 199 | 199 |
| L4 | 8 | 18 | 22 | 30 | 32 | 32 | 42 |
| D1 | φ49 | φ61 | φ64 | φ79 | φ84 | φ90 | φ90 |
| D2 | φ33 | φ42 | φ48 | φ61 | φ65 | φ71 | φ71 |
| D3 | φ35 | φ51 | φ51 | φ65 | φ70 | φ73.5 | φ73.5 |
| φd±0.07 | 13 | 15.6 | 18 | 24 | 27 | 30 | 34.5 |
| φd1 | 3 | 3.5 | 5.5 | 7 | 8.5 | 10 | 12 |
| φd2 | 4.5 | 4.5 | 4.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| P | 42.5 | 51 | 56 | 70 | 75 | 80 | 80 |
| Q±0.2 | 34 | 42 | 47.5 | 60 | 64 | 70 | 70 |
YT – Portable Plug, GZ – Fixed Socket, Y2 – Portable Socket.
Digits before letters: Rated current; Digits after letters: Number of pins.
J: Pin; K: Socket; Number of pins/sockets at the end of the letter indicates three-phase four-pole.
Example: 60YT/GZ represents a 60A three-phase four-pole plug and socket.
100YT-5J/GZ.5K indicates a 100A three-phase five-pole plug and socket.
Reverse marking: 100YT-5K/GZ.5J.
1. Suitable for Zone 1 and Zone 2 explosive gas environments;
2. Suitable for Zone 21 and Zone 22 combustible dust environments;
3. Suitable for IIA, IIB, and IIC explosive gas environments;
4. Suitable for T1 to T6 temperature classes;
5. Suitable for hazardous locations including oil extraction, refining, chemical processing, gas stations, offshore oil platforms, tankers, and metal fabrication.
