Explosion-Proof Air Conditioner BKFR
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31
| Model | BKFR-26GW | BKFR-35GW | BKFR-50GW | BKGR-50GW | BKGR-72GW | BKGR-120GW |
|---|---|---|---|---|---|---|
| Cooling Capacity (W) | 2600 | 3500 | 5000 | 5200 | 7200 | 12000 |
| Heating Capacity (W) | 2880 | 3900 | 5700 | 5730 | 8000 | 12500 |
| Refrigerant & Charge | R410a/1.6kg | R410a/2.0kg | R410a/2.5kg | R410a/1.8kg | R410a/3.0kg | R410a/3.4kg |
| Rated Power (Cooling/Heating) (W) | 742/798 | 1015/1190 | 1432/1690 | 1.5/1.7 | 2.4/2.6 | 3.8/4.0 |
| Rated Voltage (V) | AC 220V | AC 220V | AC 220V 、AC 380V | AC 380V | ||
| Noise Level (Indoor/Outdoor) dB(A) | ≤35/≤50 | ≤37/≤50 | ≤43/≤53 | |||
| Climate Class | T1 | |||||
| Electrical Shock Protection Category | I | |||||
| Protection Rating | IPX4 | |||||
| Weight (Indoor/Outdoor) (kg) | 10/40 | 11/42 | 13/53 | 40/54 | 40/67 | 63/112 |
| Dimensions (Indoor) | 265×790×170 | 275×845×180 | 298x940x200 | 274×1715×492 | 302×1762×506 | 340×1890×600 |
| Dimensions (Outdoor) | 540×848×320 | 596×899×378 | 700x955x396 | 340×1250×950 | 340×690×890 | 340×690×890 |
1. Wall-mounted and floor-standing explosion-proof air conditioners are primarily based on standard air conditioners, with explosion-proof treatment applied separately to the outdoor and indoor units as follows:

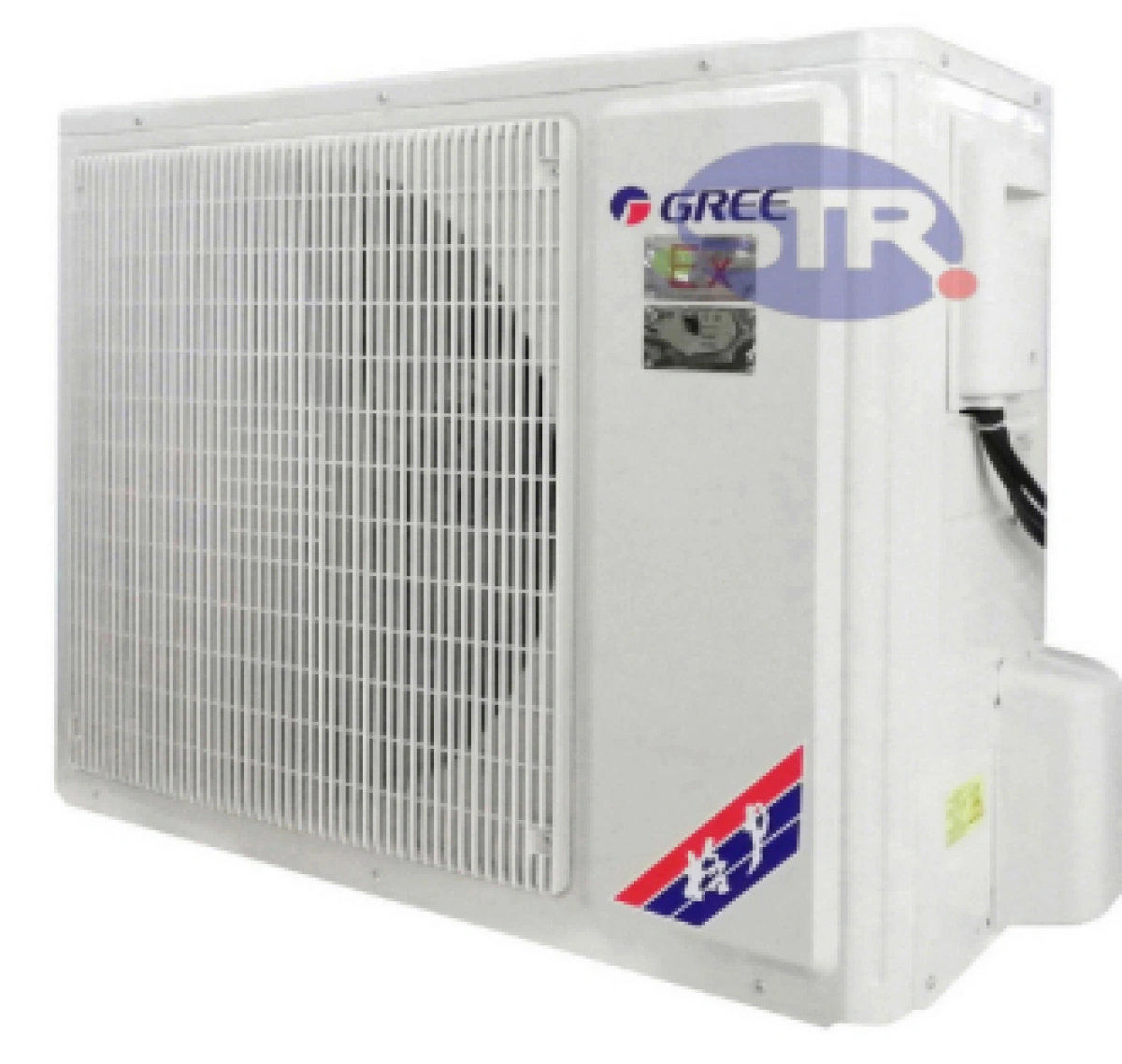

(1) Outdoor Unit: Specialized processing techniques and manufacturing methods are applied to the internal electrical controls, compressor, outdoor fan, protection system, heat dissipation system, and refrigeration system to achieve explosion-proof performance. Its external dimensions match those of standard wall-mounted air conditioner outdoor units, and its installation method is identical to that of standard wall-mounted outdoor units.
(2) Indoor Unit: The internal electrical control components are disassembled and undergo specialized processing and manufacturing techniques to achieve explosion-proof design and construction. This creates an independent explosion-proof control box with manual control functionality. Its dimensions match those of a standard wall-mounted indoor unit, and it is installed in the same manner. However, the explosion-proof indoor unit incorporates an additional wall-mounted explosion-proof control box, whose dimensions are shown in the figure.
2. Both explosion-proof indoor and outdoor units incorporate multiple explosion-proof designs externally. The low-voltage control sections utilize intrinsically safe explosion-proof circuits.
1. Explosion proof air conditioner is made of explosion-proof treatment on the basis of ordinary air conditioner, with reliable explosion-proof performance and no impact on the performance of the original air conditioner.
2. Explosion proof air conditioners can be divided into: split wall mounted type and floor mounted type according to structure, and can be divided into: single cold type and cold and warm type according to function.
3. The connection of explosion-proof air conditioner pipeline is consistent with that of ordinary air conditioner. The electrical connection must be in accordance with the requirements of explosion-proof electrical installation process. The power supply must be introduced into the explosion-proof control box first, and then divided from the explosion-proof control box.
Do not introduce the indoor unit and outdoor unit.
4. The explosion-proof control box is equipped with a power switch.
5. Steel pipe or cable wiring is acceptable.
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for temperature classes T1 to T6;
4. Suitable for hazardous environments such as petroleum extraction, refining, chemical processing, military applications, offshore oil platforms, oil tankers, and metal fabrication;
5. Used for temperature regulation in workshops, control rooms, laboratories, and similar facilities.
