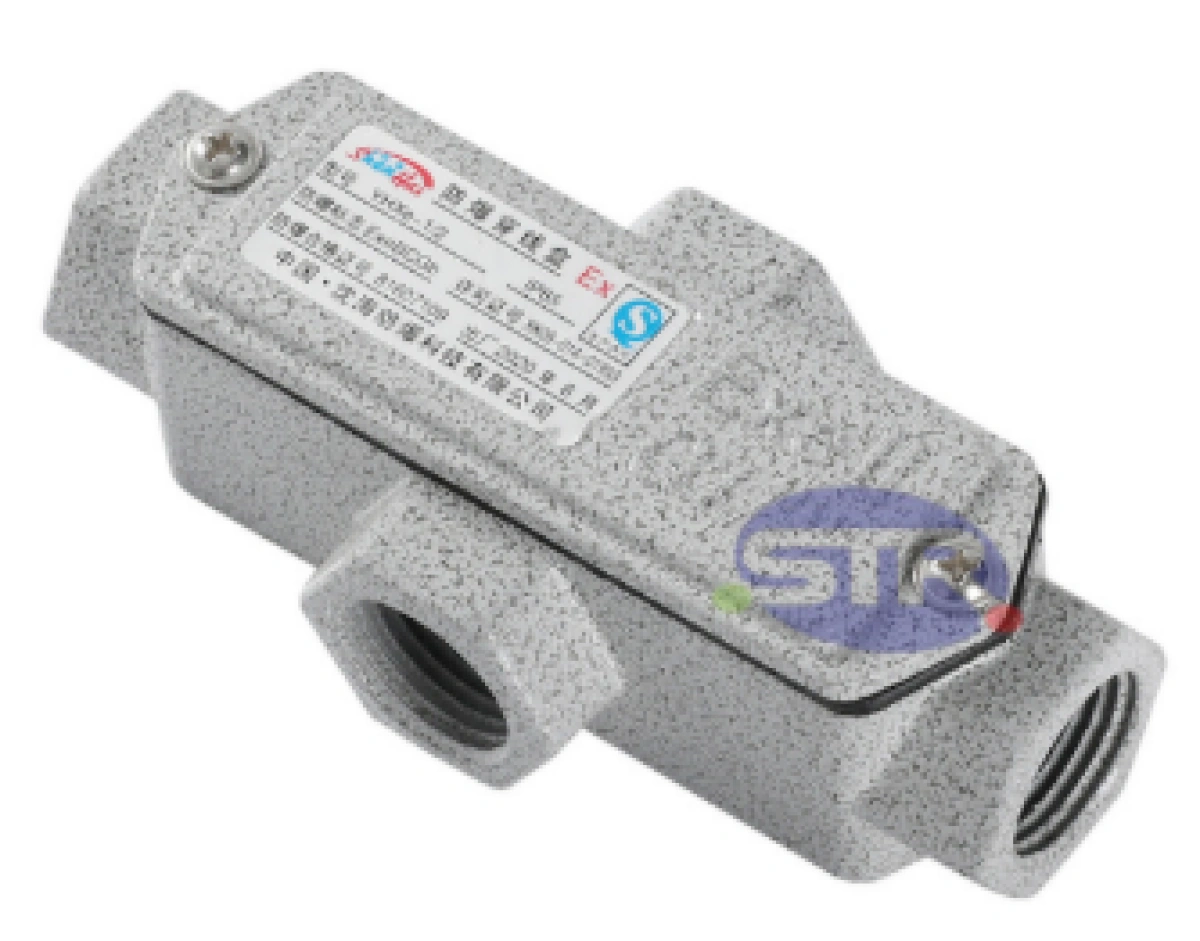

Explosion-Proof Conduit Outlet Box YHXE-IV

Model Meaning

Implementation Standard

GB/T3836.1、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC60079-7、IEC60079-31

Technical Parameter

Product Features

1. Aluminum alloy die-cast housing with high-speed shot blasting followed by high-pressure electrostatic powder coating;

2. Stainless steel exposed fasteners for superior corrosion resistance;

3. Multiple configurations and specifications for cable entry/exit ports.

Model Specifications	Type	Product Images	Pipe Inner Diameter (Φmm)	Pipe Thread (G)	Schematic Diagram	Overall Dimensions (mm)
						L	B	H
YHXe-A□ Straight	Type A		15	1/2"		110	33	44
			20	3/4"		130	38	48
			25	1"		155	45	54
			32	1 1/4"		188	58	68
			40	1 1/2"		200	60	78
			50	2"		248	76	96
			70	2 1/2"		200	94	116
			80	3"		260	108	128
			100	4"		300	120	135
YHXe-B□ Tee	Type B		15	1/2"		110	50	44
			20	3/4"		130	55	48
			25	1"		155	67	54
			32	1 1/4"		188	78	68
			40	1 1/2"		200	80	78
			50	2"		248	96	96
			70	2 1/2"		200	114	116
			80	3"		260	131	128
			100	4"		300	145	135
YHXe-C□ Cross	Type C		15	1/2"		110	67	44
			20	3/4"		130	72	48
			25	1"		155	89	54
			32	1 1/4"		188	98	68
			40	1 1/2"		200	100	78
			50	2"		248	116	96
			70	2 1/2"		200	134	116
			80	3"		260	154	128
			100	4"		300	180	135
YHXe-D□ Right Elbow	Type D		15	1/2"		101	50	44
			20	3/4"		121	55	48
			25	1"		141	67	54
			32	1 1/4"		170	78	68
			40	1 1/2"		182	80	78
			50	2"		228	96	96
			70	2 1/2"		240	114	116
			80	3"		243	134	128
			100	4"		275	145	135
YHXe-E□ Left Elbow	Type E		15	1/2"		101	50	44
			20	3/4"		121	55	48
			25	1"		141	67	54
			32	1 1/4"		170	78	68
			40	1 1/2"		182	80	78
			50	2"		228	96	96
			70	2 1/2"		240	114	116
			80	3"		243	131	128
			100	4"		275	145	135
YHXe-F□ Rear Cover Elbow	Type F		15	1/2"		101	33	59
			20	3/4"		121	38	65
			25	1"		141	45	77
			32	1 1/4"		170	58	88
			40	1 1/2"		182	60	98
			50	2"		228	76	116
			70	2 1/2"		240	94	136
			80	3"		243	108	151
			100	4"		275	120	160
YHXe-G□ Rear Cover Tee	Type G		15	1/2"		101	33	59
			20	3/4"		121	38	65
			25	1"		141	45	77
			32	1 1/4"		170	58	88
			40	1 1/2"		182	60	98
			50	2"		228	76	116
			70	2 1/2"		240	94	136
			80	3"		243	108	151
			100	4"		275	120	160
YHXe-H□ Corner Elbow	Type H		15	1/2"		101	30	58
			20	3/4"		121	35	73
			25	1"		141	42	83
			32	1 1/4"		170	50	100
			40	1 1/2"		182	60	108
			50	2"		228	72	122
			70	2 1/2"		240	86	136
			80	3"		243	102	139
			100	4"		275	120	142

Applicable Scope

1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;

4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;

5. Suitable for use in hazardous environments such as petroleum extraction, refining, chemical processing, military manufacturing, offshore oil platforms, oil tankers, and metal fabrication for connecting and redirecting steel conduit wiring.
