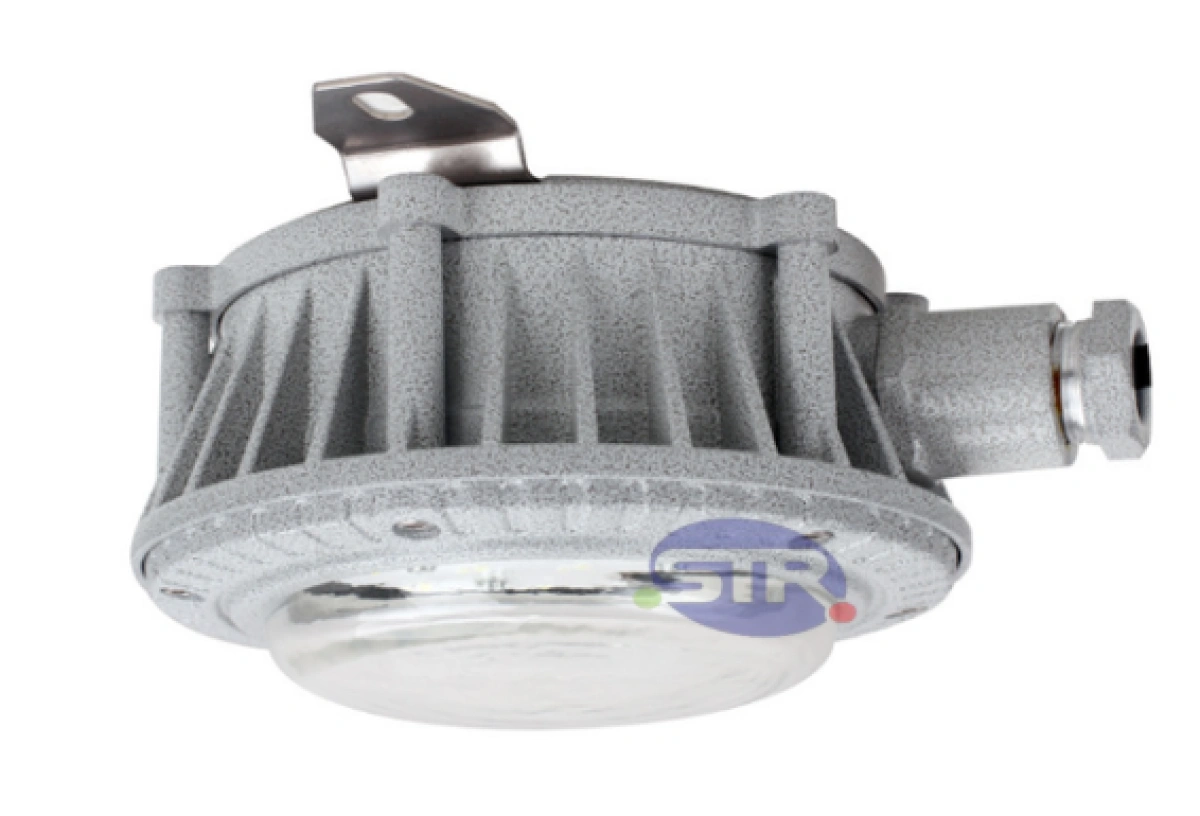

Explosion-Proof Light BED60-IAS
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31
 |
Premium brand chips, rationally arranged, unidirectional light emission, uniform and soft illumination, luminous efficacy ≥120lm/W, high color rendering index Ra＞70, extended service life, eco-friendly, color temperature 3000K~5700K. |  |
High-strength transparent anti-glare glass cover with excellent impact resistance and thermal shock resistance, featuring high light transmittance. |
 |
Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink. This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of the LED explosion-proof light. |  |
Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink. This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of the LED explosion-proof light. |
| Model and Specifications | Luminaire Type | Light Source | Power (W) | Luminous Flux (lm) | Color Temperature (K) | Explosion-Proof Marking | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BED60-□ | I | LED | 10~30 | 1200~3600 | 3000~5700 | Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
1.87 |
| II | 40~60 | 4800~7200 | 3.1 | ||||
| III | 70~100 | 8400~12000 | 4.75 | ||||
| IV | 120~150 | 14400~18000 | Ex db IIC T5 Gb, Ex tb IIIC T95°C Db |
5.86 |
| Rated Voltage/Frequency | Protection Rating | Corrosion Resistance Rating | Inlet Thread | Cable Outer Diameter |
|---|---|---|---|---|
| AC 220V DC 36V, 24V |
IP66 | WF1 WF2* |
G3/4" | Φ10~Φ14mm |
| Emergency Response Time (s) | Charging Time (h) | Emergency Power (W) | Light Source Power (W) | Emergency Lighting Duration (minutes) |
|---|---|---|---|---|
| ≤0.3 | 24 | 5~20 | 10~30 | ≥60min、≥90min Optional |
| 10~50 | 40~150 |
1. Radiator designed with special die-cast aluminum alloy, featuring high-pressure electrostatic powder coating;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Flanged explosion-proof joint surface, pure explosion-proof structure for enhanced reliability;
4. Multi-point light emission with high luminous efficiency, delivering uniform illumination without glare;
5. Constant-current power supply with wide voltage input and constant-current output, featuring protection against shunt current, surge, overcurrent, open circuit, short circuit, high temperature, and electromagnetic interference;
6. Microwave-sensing dimming system for energy efficiency and environmental protection;
7. Power factor cosφ ≥ 0.95;
8. Compatible with modular emergency kits for automatic switchover to emergency lighting during power outages;
9. Suitable for conduit or cable wiring.
