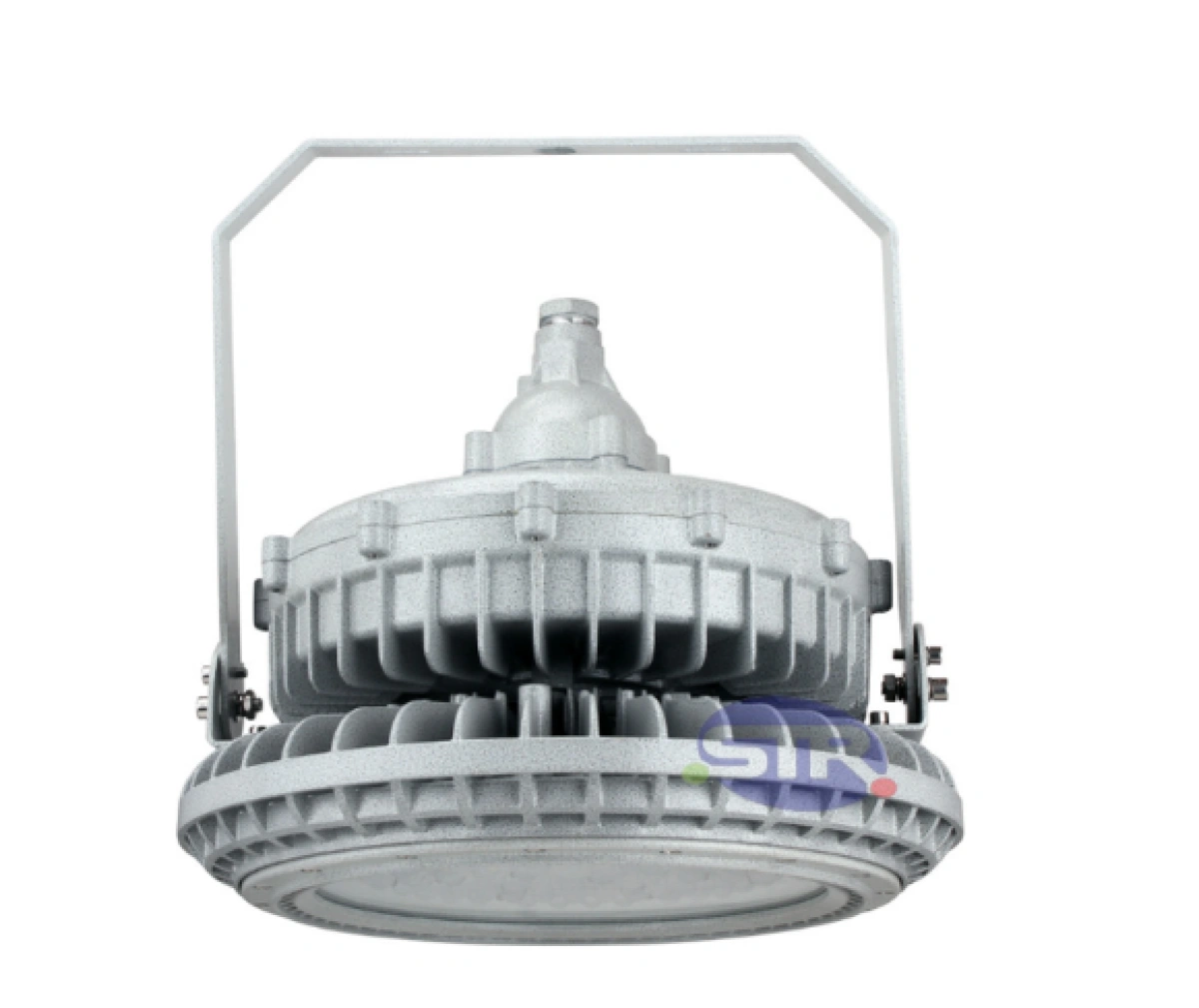

Explosion-Proof Light BED80-I
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC 60079-0、IEC 60079-1、IEC 60079-31
 |
Premium brand chips, rationally arranged, unidirectional light emission, uniform and soft illumination, luminous efficacy ≥120lm/W, high color rendering index Ra＞70, extended service life, eco-friendly, color temperature 3000K~5700K. |  |
Natural ventilation convection heat dissipation technology utilizes airflow to dissipate heat through heat dissipation channels and thermal flow pathways to the surface of the luminaire's heat sink . This effectively dissipates heat from the LED light source, ensuring the long-term operational reliability of explosion-proof LED lights. |
| Model and Specifications | Explosion-Proof Marking | Light Source | Luminaire Type | Power (W) | Luminous Flux (Lm) | Color Temperature (K) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BED80-□ | Ex db IIC T6 Gb Ex tb IIIC T80°C Db |
LED | I | 30~60 | 3720~7500 | 3000~5700 | 5.2 |
| II | 70~100 | 8600~12500 | 7.3 | ||||
| III | 110~150 | 13500~18500 | 8.3 | ||||
| IV | 160~240 | 19500~28800 | 11.9 | ||||
| V | 250~320 | 30000~38400 | 13.9 |
| Rated Voltage/Frequency | Protection Rating | Corrosion Resistance Rating | Inlet Thread | Cable Outer Diameter |
|---|---|---|---|---|
| AC 220V, 36V, 24V DC 36V, 24V |
IP66 | WF1 WF2* |
G3/4" | Φ10~Φ14mm |
| Emergency Response Time (s) | Charging Time (h) | Emergency Power (within 100W) | Emergency Power (within 200W) | Emergency Lighting Duration (min) |
|---|---|---|---|---|
| ≤0.3 | 24 | ≤20W | 20W~50W Optional | ≥60min、≥90min Optional |
1. PLC (Power Line Carrier) technology;
2. Utilizes broadband power line carrier communication technology to transmit data over existing power lines without additional wiring, reducing installation costs; features high communication speeds with a physical layer peak rate of up to 0.507 Mbit/s; employs OFDM modulation for strong interference resistance;
3. Supports automatic rapid networking, completing setup within 10 seconds; accommodates up to 15-level relays for extended communication range;
4. Achieves over 99.9% first-attempt network connection success rate;
5. Enables data collection and reporting for input/output current/voltage, active power, apparent power, energy consumption, power factor, temperature, and lighting status;
6. High-precision data acquisition solution compliant with national electricity meter measurement standards;
7. Supports controller temperature detection for real-time monitoring of operating environment temperature;
8. Features overcurrent/overvoltage/undervoltage protection, overload protection, lighting status and line detection, default lighting functions;
9. Supports various customizable network analysis data acquisition functions;
10. Embeds lightweight RTOS system, supports concurrent data fault tolerance, cell reselection, and multi-frequency networking;
11. Supports zero-crossing detection for lighting control;
12. Automatically executes cloud configuration policies locally during network anomalies or outages;
13. Supports scheduled power cycling and time-controlled operation modes.
