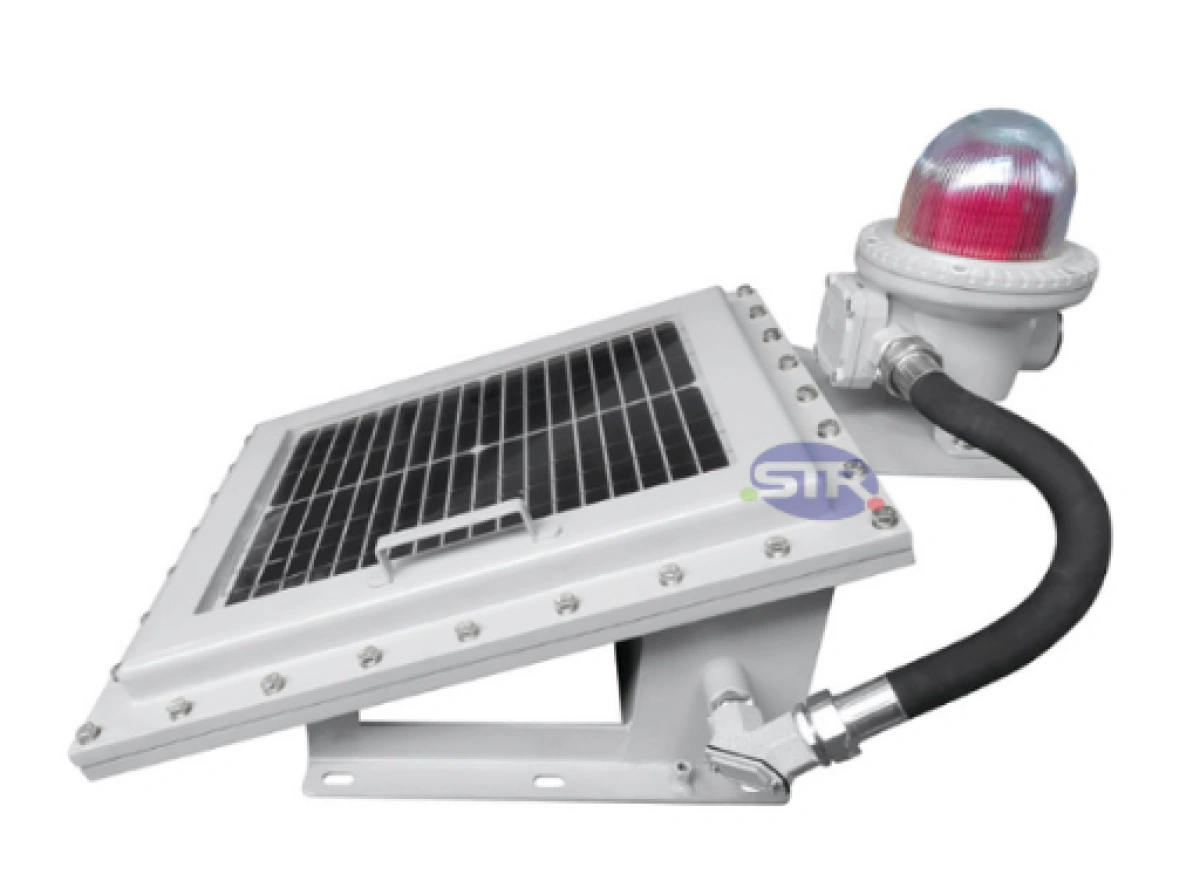

Explosion-Proof Solar Aviation Obstruction Light SHBZ-II
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-31
1. LED light source with unidirectional light emission, no lateral light leakage, and high light utilization efficiency;
2. Excellent energy-saving performance, high luminous efficacy, and environmentally friendly;
3. Wide voltage input range with constant luminous flux output and extended service life;
4. Constant-current power supply featuring low power consumption and stable output power, equipped with open-circuit, short-circuit, and overheat protection to ensure reliable operation of the LED light source.
| Model and Specifications | Explosion-Proof Marking | Rated Voltage | Light Source | Power (W) | Flicker Frequency (times/min) | Average Lifespan (h) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SHBZ-□ | Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
AC 220V | LED | Low Light Intensity: 8 Medium Light Intensity: 10, 20, 30, 40 |
16~120 | 50000 | 3.04 |
| AC 220V, 36V, 24V DC 36V, 24V |
Hernia | ≤50 | 10~120 | 42 |
| Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|
| G3/4" | Φ10~Φ14mm | IP66 | WF1, WF2* |
1. Die-cast aluminum alloy housing with high-pressure electrostatic coating for corrosion and aging resistance;
2. Transparent components made from imported engineering resin with UV resistance and anti-glare treatment, providing soft lighting to effectively prevent discomfort and fatigue caused by light exposure;
3. Stainless steel exposed fasteners with high corrosion resistance;
4. All removable external components feature anti-disengagement measures;
5. High-temperature silicone rubber gaskets at joints provide IP66 protection for indoor/outdoor use;
6. Dedicated internal terminals ensure reliable wiring connections and facilitate maintenance;
7. New energy-efficient and environmentally friendly LED light source with minimal lumen depreciation and a lifespan of up to 100,000 hours;
8. Custom constant-current power supply with low power consumption and stable output power, featuring open-circuit, short-circuit, and overheat protection, with a high power factor exceeding 0.9;
9. This series of luminaires comes with an integrated cable clamping and sealing device, compatible with both steel pipe and cable wiring.
