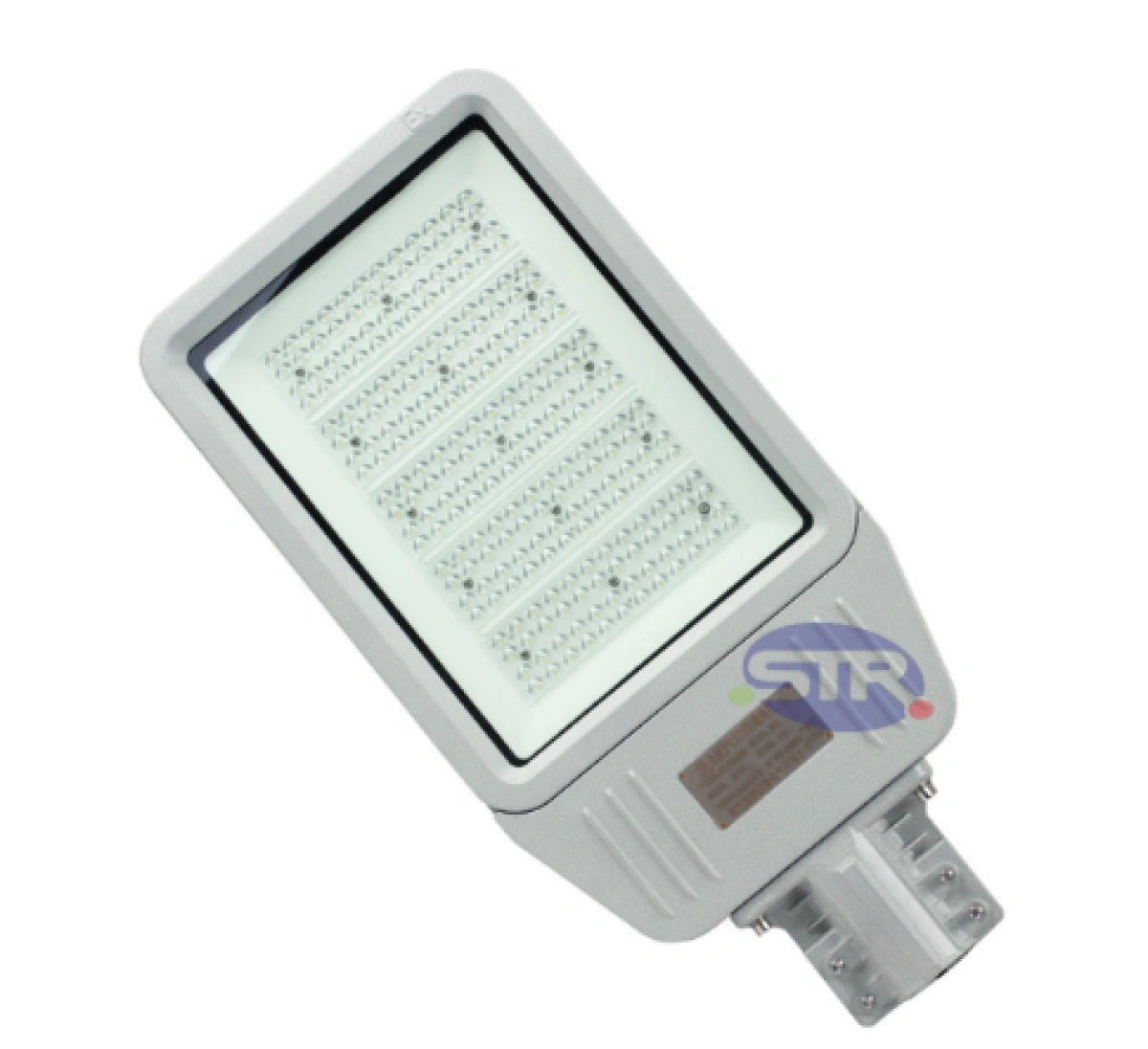

Explosion-Proof Street Light BED62-II
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.9、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC 60079-18、IEC 60079-31
| Model and Specifications | Explosion-Proof Marking | Light Source | Luminaire Type | Power (W) | Luminous Flux (Lm) | Color Temperature (K) |
|---|---|---|---|---|---|---|
| BED62-□ | Ex db eb mb IIC T6 Gb, Ex tb IIIC T80°C Db |
LED | I | 40~100 | 4800~12000 | 3000~5700 |
| II | 100~180 | 12000~21600 | ||||
| Ex db eb mb IIC T5 Gb, Ex tb IIIC T95°C Db |
180~240 | 21600~28800 |
| Rated Voltage/Frequency | Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|
| AC 220V/50Hz | G3/4" | Φ10~Φ14mm | IP66 | WF1, WF2* |
1. Radiator designed with special die-cast aluminum alloy, featuring high-pressure electrostatic powder coating;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structures for light source and power supply compartments;
4. Professionally designed optical system with high light utilization, optimized distribution, uniform illumination, and glare-free performance;
5. Maze-type junction box with silicone rubber gasket for secure adhesion and high protection rating;
6. High-strength tempered glass with superior impact resistance, thermal shock tolerance, and high light transmittance;
7. Constant-current power supply with wide voltage input and constant-current output, featuring protection against shunt current, surge, overcurrent, open circuit, short circuit, high temperature, and electromagnetic interference;
8. Power factor cosφ ≥ 0.95;
9. Can be equipped with a modular emergency device based on usage requirements, automatically switching to emergency lighting mode during power supply failure;
10. Cable wiring.
