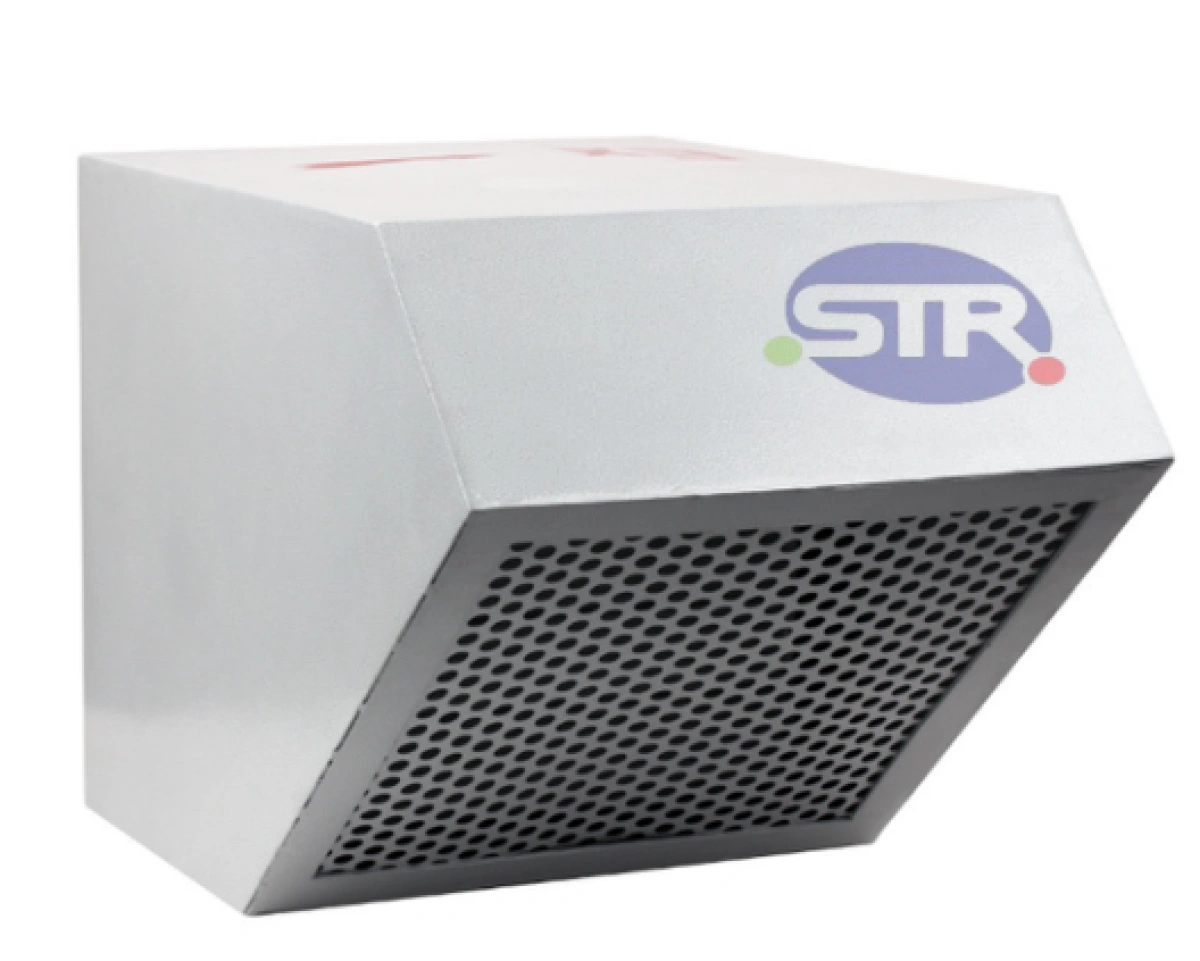

Explosion-Proof Side-Wall Fan BWEXD
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC 60079-1、IEC 60079-31
| Explosion-Proof Marking | Protection Rating | Cable Outer Diameter | Entry Thread |
|---|---|---|---|
| Ex db IIC T4 Gb Ex tb IIIC T135°C Db |
IP54 | Φ10~Φ14 | M26×1.5 or G3/4" |
| Model and Specifications | Impeller Diameter (mm) | Rated Voltage (V) | Rated Speed (r/min) | Impeller Angle | Airflow (m³/h) | Total Pressure (Pa) | Installed Power (kW) |
|---|---|---|---|---|---|---|---|
| BWEXD-2# | 200 | 380/220 | 2800 | 43° | 1230 | 112 | 0.09 |
| 1450 | 43° | 618 | 64 | 0.06 | |||
| BWEXD-2.8# | 280 | 2800 | 35° | 2921 | 190 | 0.25 | |
| 1450 | 1510 | 105 | 0.18 | ||||
| BWEXD-3.15# | 315 | 2800 | 3074 | 218 | 0.37 | ||
| 1450 | 1998 | 141 | 0.25 | ||||
| BWEXD-3.55# | 355 | 2800 | 3367 | 246 | 0.37 | ||
| 1450 | 2188 | 160 | 0.25 | ||||
| BWEXD-4.# | 400 | 3560 | 260 | 0.37 | |||
| BWEXD-4.5 # | 450 | 38° | 3450 | 142 | 0.37 | ||
| 42° | 4644 | 150 | 0.55 | ||||
| BWEXD-5 # | 5500 | 380 | 38° | 7655 | 116 | 0.55 | |
| 43° | 8316 | 123 | 0.75 | ||||
| BWEXD-5.6 # | 560 | 9581 | 173 | 0.75 | |||
| 48° | 11682 | 186 | 1.1 | ||||
| BWEXD-6.3 # | 630 | 41° | 10739 | 154 | 1.1 | ||
| 45.2° | 14454 | 169 | 1.5 | ||||
| BWEXD-7.1 # | 710 | 40° | 13400 | 178 | 1.1 | ||
| 960 | 43.5° | 16160 | 189 | 1.5 | |||
| 46° | 14498 | 123 | 1.1 | ||||
| BWEXD-8 # | 800 | 44° | 31325 | 180 | 2.2 | ||
| 37073 | 248 | 4.0 | |||||
| BWEXD-9 # | 900 | 46° | 35227 | 200 | 3.0 | ||
| 39800 | 230 | 4.0 | |||||
| BWEXD-10 # | 1000 | 48300 | 247 | 5.5 | |||
| 54300 | 268 | 7.5 | |||||
| BWEXD-11.2 # | 1120 | 42° | 56460 | 353 | 7.5 | ||
| 46° | 67892 | 415 | 11 |
1. This series of ventilators is designed based on the three-dimensional flow theory of impeller mechanics, with meticulously engineered test data ensuring excellent aerodynamic performance. They feature low noise, high efficiency, minimal vibration, and low energy consumption.
2. The product consists of an explosion-proof motor, impeller, air duct, protective cover, rain cover, gravity-type check valve, and insect screen.
3. Rain covers are available in 45°, 60°, or 90° configurations. Gravity-operated check valves ensure workshop isolation from outdoor air when the fan is off.
4. Installation type: Wall-mounted.
5. Cable or steel pipe wiring.
| Machine Number | L1×L2 (mm) | L (mm) | I (mm) | L3 (mm) | L4 (mm) | □L5 (mm) |
|---|---|---|---|---|---|---|
| BWEXD-2.8# | 420×340 | 480.5 | 240 | 268 | 390 | 340×340 |
| BWEXD-3.15# | 455×375 | 505 | 303 | 425 | 375×375 | |
| BWEXD-3.55# | 495×415 | 533.5 | 338 | 465 | 415×415 | |
| BWEXD-4# | 540×460 | 565 | 388 | 510 | 460×460 | |
| BWEXD-4.5# | 590×510 | 600.5 | 438 | 560 | 510×510 | |
| BWEXD-5# | 640×560 | 636 | 488 | 610 | 560×560 | |
| BWEXD-5.6# | 700×620 | 731 | 300 | 558 | 670 | 620×620 |
| BWEXD-6.3# | 770×690 | 788 | 628 | 740 | 690×690 | |
| BWEXD-7.1# | 850×770 | 844.5 | 699 | 820 | 770×770 | |
| BWEXD-8# | 940×860 | 880 | 798 | 910 | 860×860 |
| Machine Number | L1×L2 (mm) | L (mm) | L3 (mm) | L4 (mm) | □L5 (mm) |
|---|---|---|---|---|---|
| BWEXD-2.8# | 420×340 | 240 | 268 | 390 | 340×340 |
| BWEXD-3.15# | 455×375 | 303 | 425 | 375×375 | |
| BWEXD-3.55# | 495×415 | 338 | 465 | 415×415 | |
| BWEXD-4# | 540×460 | 388 | 510 | 460×460 | |
| BWEXD-4.5# | 590×510 | 438 | 560 | 510×510 | |
| BWEXD-5# | 640×560 | 488 | 610 | 560×560 | |
| BWEXD-5.6# | 700×620 | 300 | 558 | 670 | 620×620 |
| BWEXD-6.3# | 770×690 | 628 | 740 | 690×690 | |
| BWEXD-7.1# | 850×770 | 699 | 820 | 770×770 | |
| BWEXD-8# | 940×860 | 798 | 910 | 860×860 |
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas environments;
3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;
5. Suitable for temperature classes T1 to T4;
6. Widely used in hazardous environments such as refining, chemical processing, textiles, and military industries, as well as offshore oil platforms and oil tankers;
7. Indoor and outdoor use.
