1-2125-23-28 ETTAS Constant Temperature Dryer (Timer Type/Forced Convection Type) Windowless Type Left Door With Pre-shipment Validation OF-600V

SKU: OF-600V

Đặc trưng

  • Forced Convection
  • Selectable 3 Sizes
  • Basic Model Changed
  • Digital Safety Equipment Standard
  • Brilliant Large LCD Screen
  • Uses a highly visible color LCD display for improved operability.
  • In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.

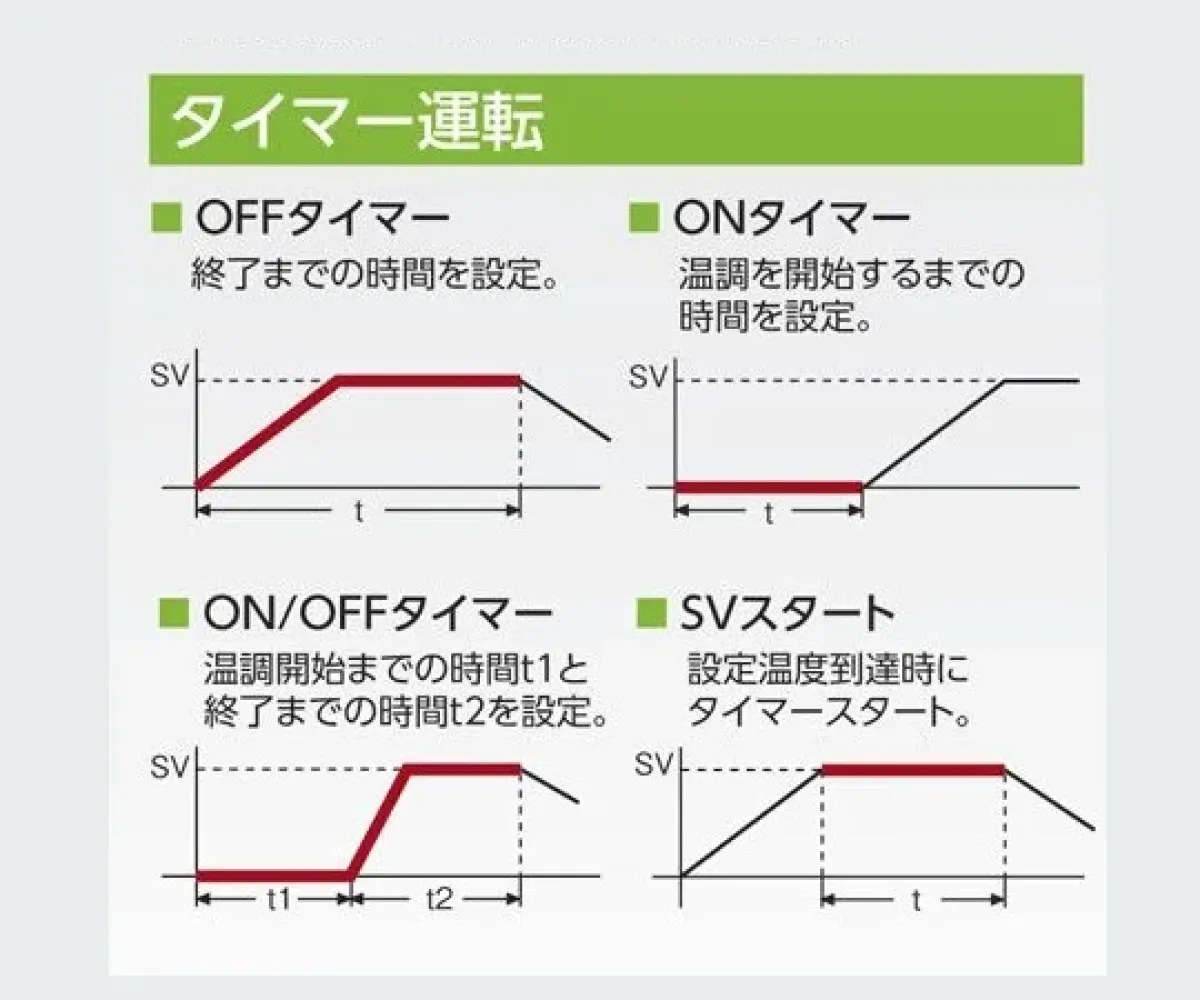

  • Four timer functions (ON/OFF/ON/OFF/SV start) are provided as standard equipment, and you can select from four types according to the quantity and size of the sample.
  • The temperature control uses PID control, which enables stable temperature control with high accuracy.
Chia sẻ:

Thông số kỹ thuật

  • Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
  • Validate (FAT) before shipping.
  • After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
  • Appendix: FAT report/Calibration Certificate of used measuring instrument copied
  • *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
  •
  • Temperature points: 9 points at 270 degrees Celsius
  •
  • External dimensions (mm): 700 x 617 x 810
  • Interior dimensions (mm): 600 x 497 x 500
  • Door: Left
  • Temperature control range: room temperature + 20 ~ 270 degrees C
  • Maximum temperature reach time: approximately 55 minutes
  • Temperature distribution (JTM K05): +/- 8 degrees C (at 270 degrees C)
  • Temperature variation (JIS): +/- 1.5 degrees C (at 270 degrees C)
  • Temperature Gradient (JIS): 25 degrees C (at 270 degrees C)
  • Temperature control method: PID control, SSR output
  • Additional functions: Timer specification -- > ON Timer, OFF Timer, SV start, ON/OFF Timer
  • Safety device: Digital setting type overrise prevention function/Overcurrent breaker/burnout mechanism (Heater OFF when sensor is disconnected)
  • Heater capacity: 1400 W
  • Temperature Sensor: K thermocouples x 2 (1 each for controlling temperature and preventing excessive rise)
  • Shelf Pitch/Number of Racks: 35 mm Pitch/11 Racks
  • Exterior/Interior: Steel powder coating/SUS 304 (some SUS 443 J 1)
  • Vent: 32 mm in diameter x 2
  • Storage capacity: approximately 150 L
  • Weight: approximately 50 kg
  • Power Supply: 100 VAC 50/60 Hz Cord Length: 2.4 m (3 P Plug)
  • Current rating: 14.5 A
  • Shelf load capacity: 5 kg
  • Accessories: 2 shelf boards, 2 shelf rails
  • *Do not put combustible materials in the cabinet.
  • *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
