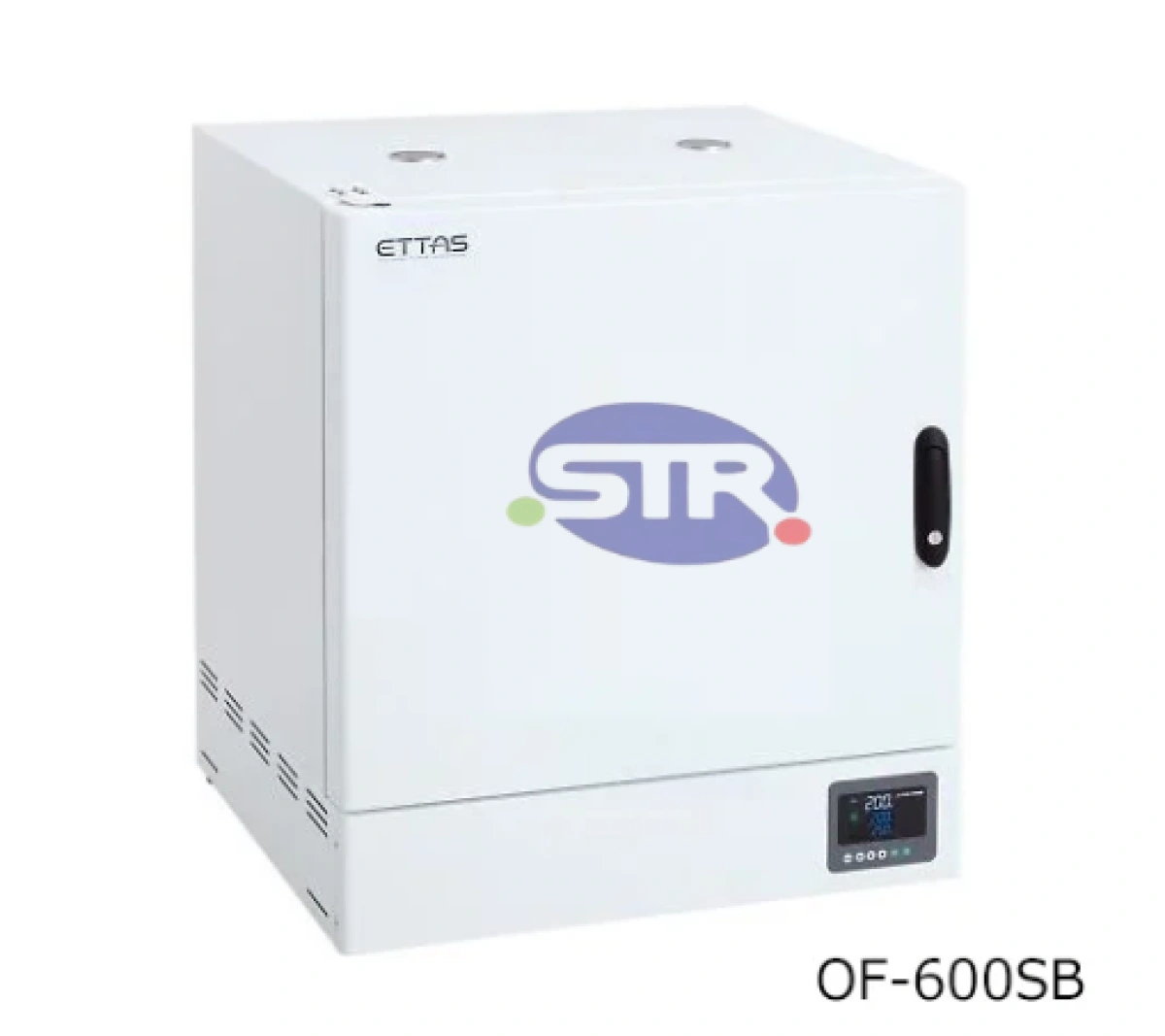

1-8999-52-22 Lò Sấy Nhiệt Độ Không Đổi (Loại Thép, Hệ Thống Đối Lưu Cưỡng Bức) Không Có Cửa Sổ (Cửa Xoay Trái) Với Chứng Chỉ Kiểm Tra Trước Khi Giao Hàng OF-450SB

SKU: SOFW-600SB-R

Đặc trưng

  • Common Features of ETTAS/S Series: Digital overrise prevention device is standard.

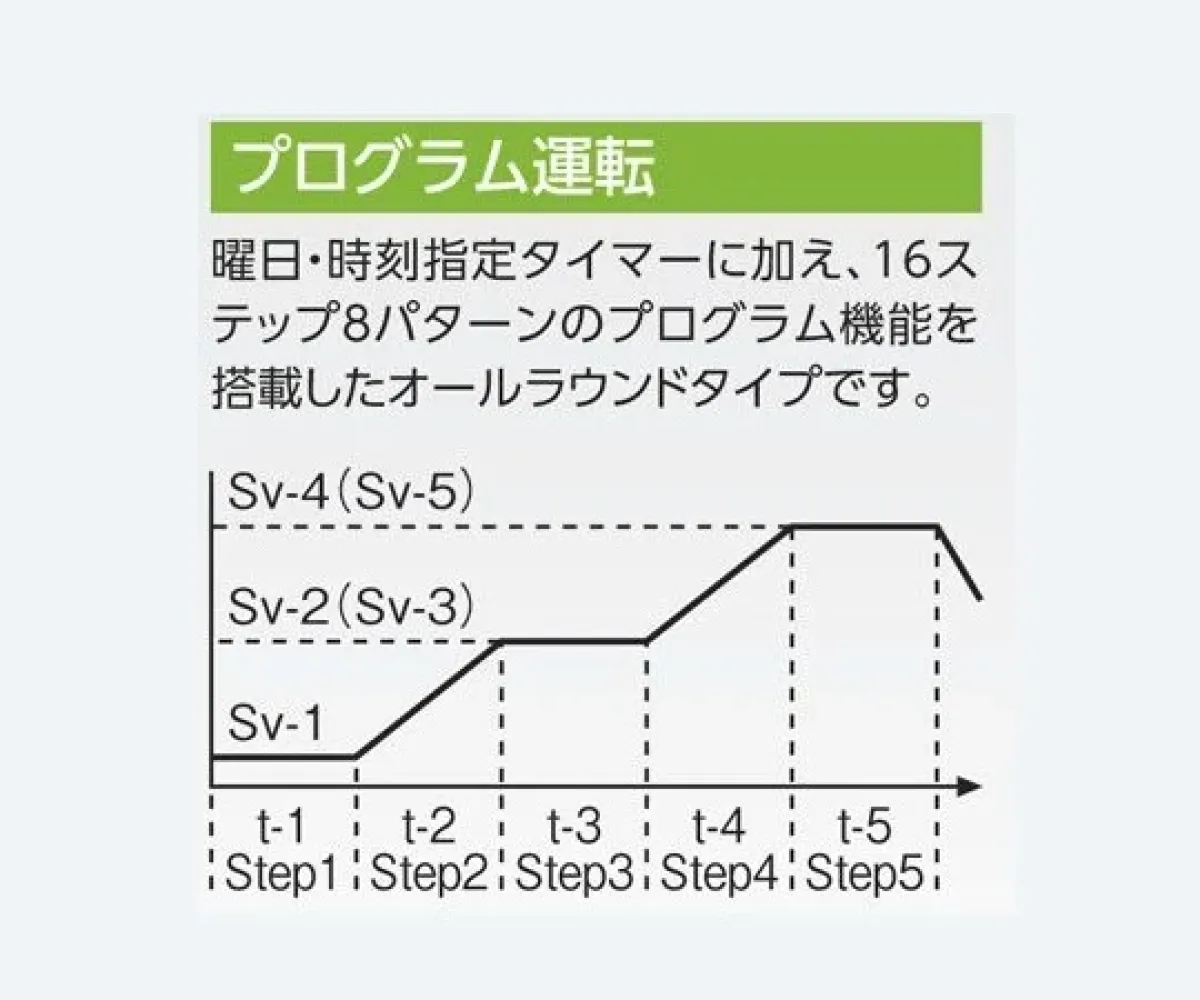

  • Three-stage PID control reduces overshoot and undershoot over a wide temperature range. It is an all-around type with 4 timer functions, day of the week and time specification timers as well as 16 step 8 pattern program functions.
  • The LCD display offers excellent visibility and operation.

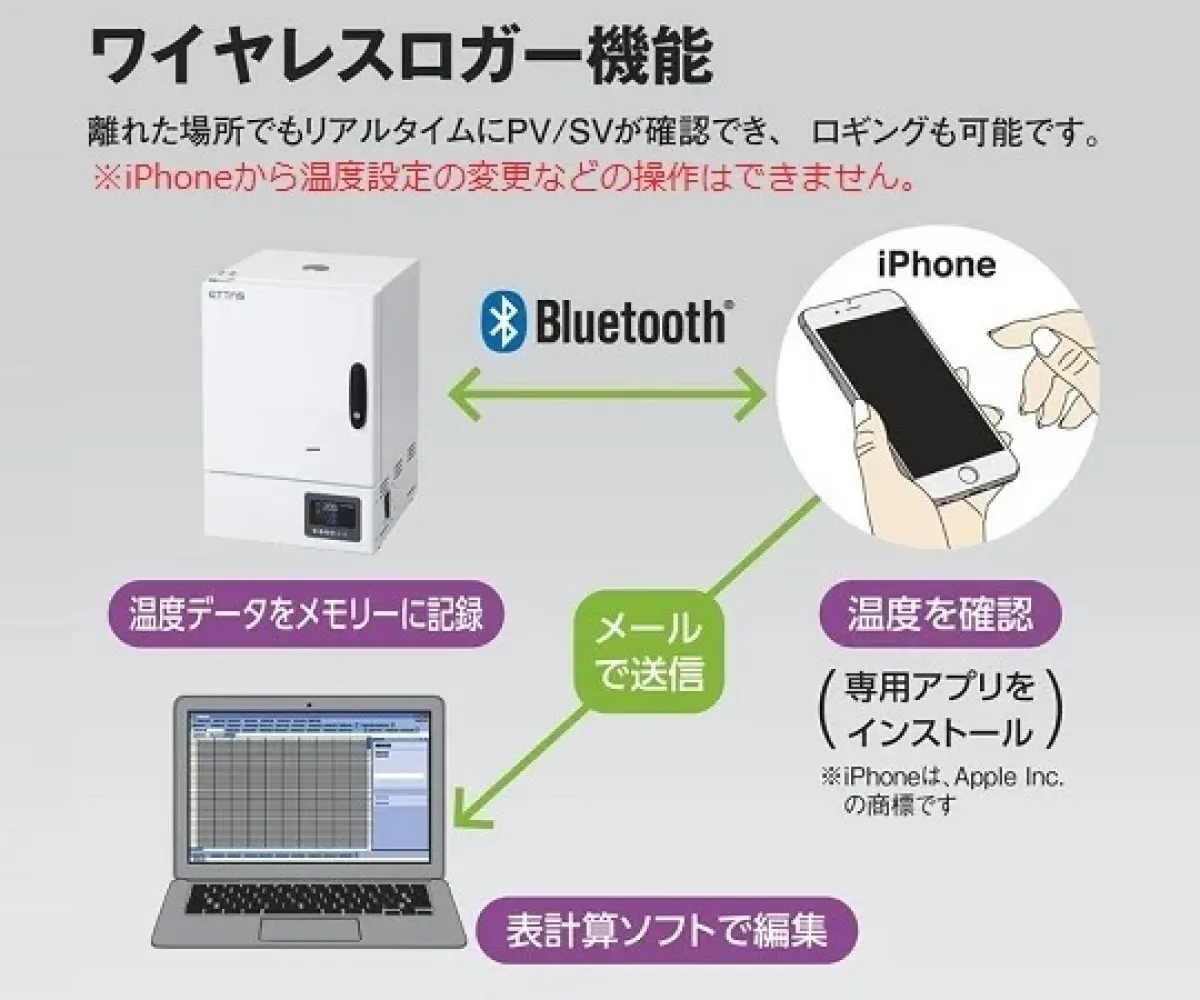

  • By connecting options, errors can be instantly identified and addressed. ( See Alarm Options ) * Wireless Logger App Features * You can check the measured and set temperatures from a distance.
  • The measured temperature and set temperature are stored in the memory in the board at regular intervals.
  • You can operate it intuitively without a manual.
  • Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
  • Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
  • You can start, stop and delete records from the app.
  • 6 Safety and Security Features: (1) You can check PV/SV from a distance.
  • It can be operated intuitively without a manual.
  • (2) Transfer recorded data to a PC for easy graph creation!
  • Recorded data you read is automatically converted into a CSV-format file that can be easily transferred to your computer by email. ③ Safe and secure function when an error occurs By connecting the option, you can check the error instantly and take action.

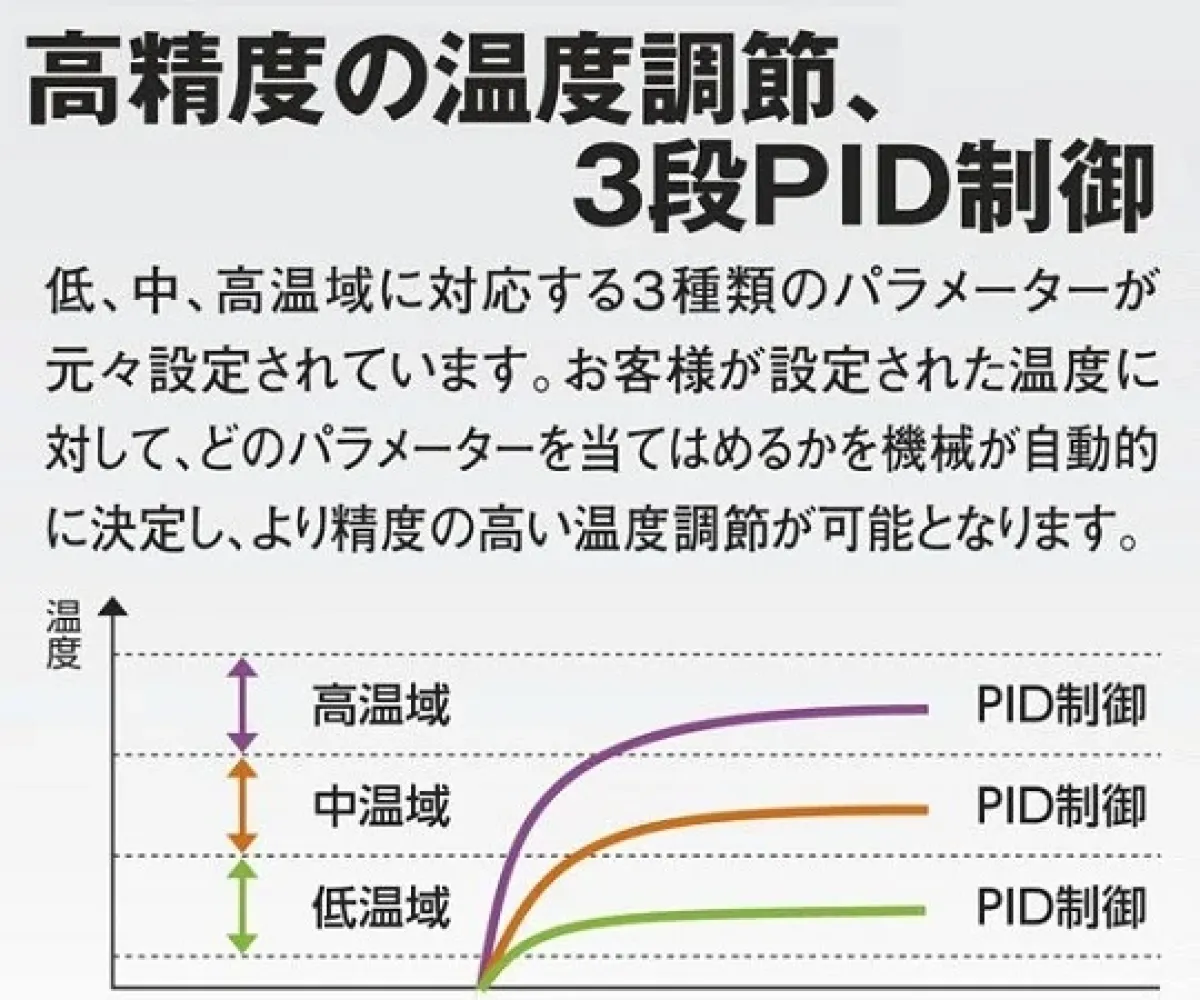

  • (4) High-precision temperature control 3-step PID control - PID control is available for individual low, medium and high temperature ranges. Overshooting and undershooting are reduced.
  • (5) Digital setting type overrise prevention function - This overrise prevention function allows the work temperature to be set digitally. When the set value is reached, the heater turns off.

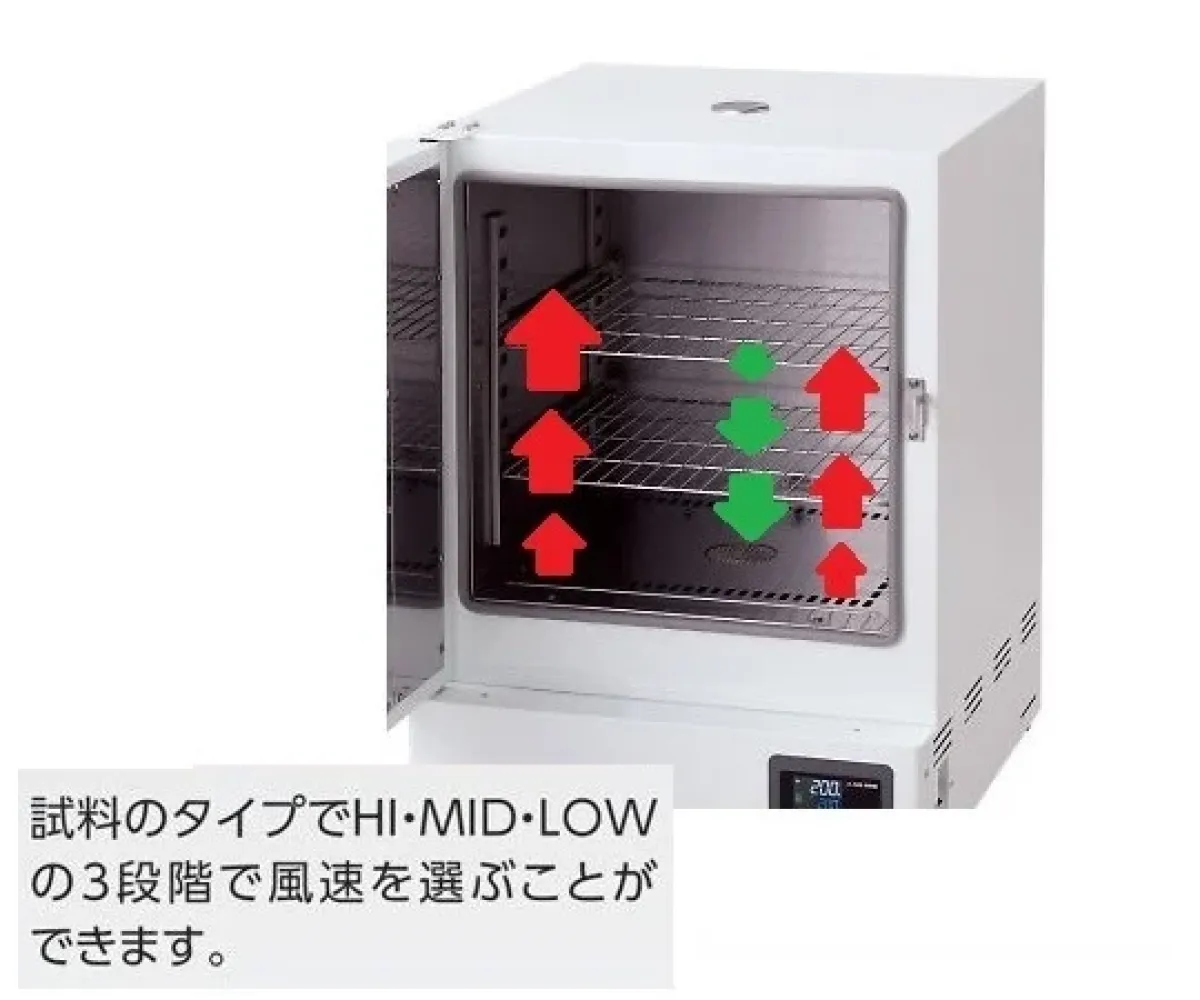

  • Variable air volume (forced convection system) - 3 levels of HI, MID, and LOW can be set in an analog sense. Light powder is hard to scatter.
Chia sẻ:

Thông số kỹ thuật

    • Kích thước bên trong (mm): 450 x 447 x 450
    • Cửa: Trái
    • Phạm vi điều chỉnh nhiệt độ: Tiến sĩ y khoa + 20 à 320 °C
    • Thời gian đến nhiệt độ tối đa: khoảng 50 phút
    • Độ chính xác phân phối nhiệt độ (JTM K05): ±8 °C (ở 320 °C)
    • Biến động nhiệt độ (JIS): ±1 °C (ở 320 °C)
    • Gradien nhiệt độ (JIS): 25 ° C (ở 320 ° C)
    • Phương pháp kiểm soát nhiệt độ: 3 giai đoạn điều khiển PID, đầu ra SSR
    • Chức năng giao tiếp: tiêu chuẩn : Bluetooth thông minh (Bluetooth 4.2)/khoảng cách: Class2 (khoảng 10 m)
    • Tính năng Logger:
    • *Phương pháp ghi: dừng đầy đủ (Dừng ghi trong bộ nhớ đầy đủ)
    • *Thời gian ghi âm: 2 giây/10 giây/30 giây/60 giây/10 phút/60 phút
    • *Thời gian hiển thị: 2 giây/10 giây/30 giây/giây/60 giây/300 giây
    • Ứng dụng bên ngoài:
    • *Chức năng: Bắt đầu/Dừng ghi, Đọc/Xóa dữ liệu đã ghi, Chuyển sang hiển thị danh sách/PC, Hiển thị biểu đồ xu hướng (Có thể mở rộng)
    • *định dạng ghi âm: Định dạng CSV
    • *Hệ điều hành tương thích: iOS 11.4 và sau đó
    • *mô hình tương thích: iPhone 5s, 5c, 6, 6 Cộng, 6s Cộng, SE, 7, 7 Cộng, 8, 8 Cộng, X

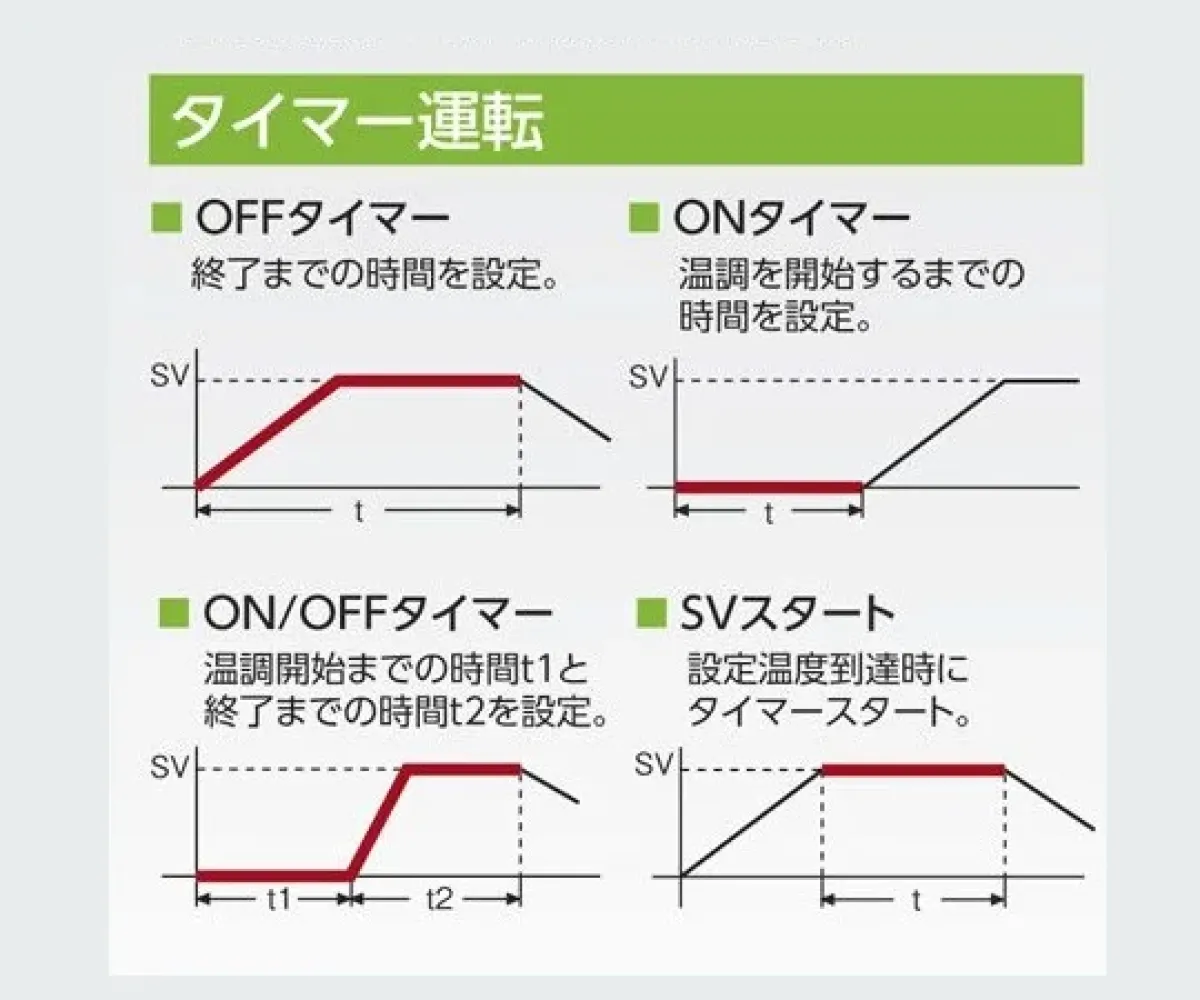

    • Chức năng bổ sung: hẹn giờ (ON/OFF hẹn giờ, SV bắt đầu/ON/OFF hẹn giờ)/nhiệt độ gradient chương trình lên đến 16 bước x 8 mẫu/ngày/thời gian đặc điểm kỹ thuật hẹn giờ
    • Thiết bị an toàn: Thiết lập kỹ thuật số chức năng phòng chống quá tải, quá dòng ngắt cơ chế cháy (Nóng OFF khi cảm biến bị ngắt kết nối)
    • Công suất nóng: 1300W
    • Cảm biến nhiệt độ: Cặp nhiệt điện loại K x 2 miếng (1 miếng để kiểm soát nhiệt độ và ngăn ngừa quá nhiệt)
    • Công suất bên trong: khoảng 91L
    • pitch TANA/mm số bước: 35 sân/10 Dan
    • Ngoại thất/Nội thất: Sơn tĩnh điện bằng thép/Thép không gỉ SUS304 (Áp dụng một phần bằng thép không gỉ SUS443J1)
    • Cửa thoát khí: φ32mm x 1 miếng
    • Kích thước bên ngoài: 550 x 567 x 760mm
    • Cân nặng: khoảng 40kg
    • Cung cấp điện: AC100V 50/60Hz Chiều dài dây 2,4 m (phích cắm 3P)
    • đánh giá hiện tại: 13,5 A
    • kệ hội đồng quản trị, tải khoan dung: 5kg
    • Phụ kiện: kệ bảng x 2 miếng/kệ bảng đường sắt x 2 bộ
