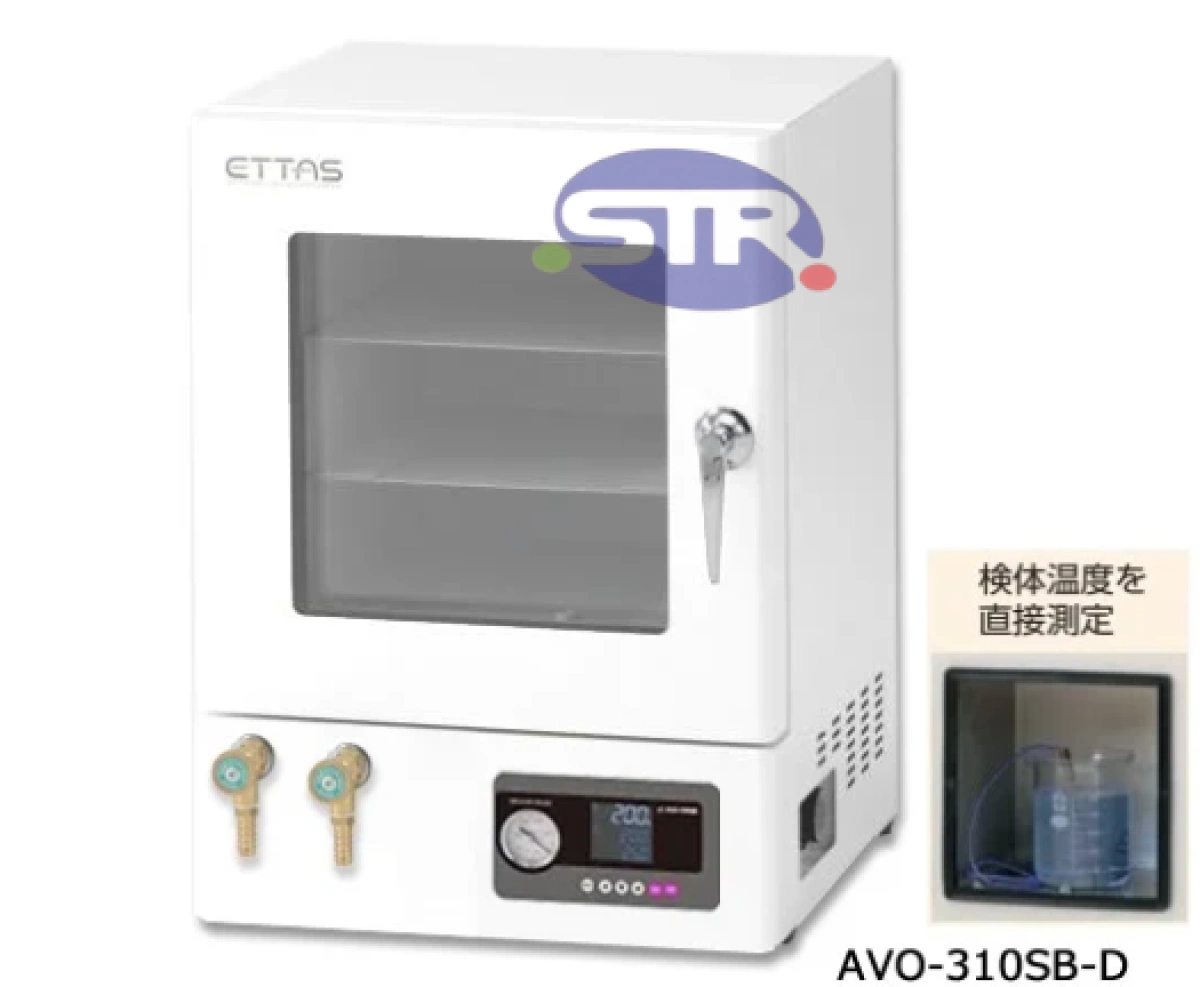

1-7547-63-28　Vacuum dryer (SB-D series) with Pre-shipment Validation　AVO-310SB-D

Thông số kỹ thuật

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
• Appendix: FAT report/Calibration Certificate of used measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
•
• Temperature point: one temperature point, vacuum degree
•
• Storage capacity (L): 30
• Additional functions: Timer function, program function, day/time Timer

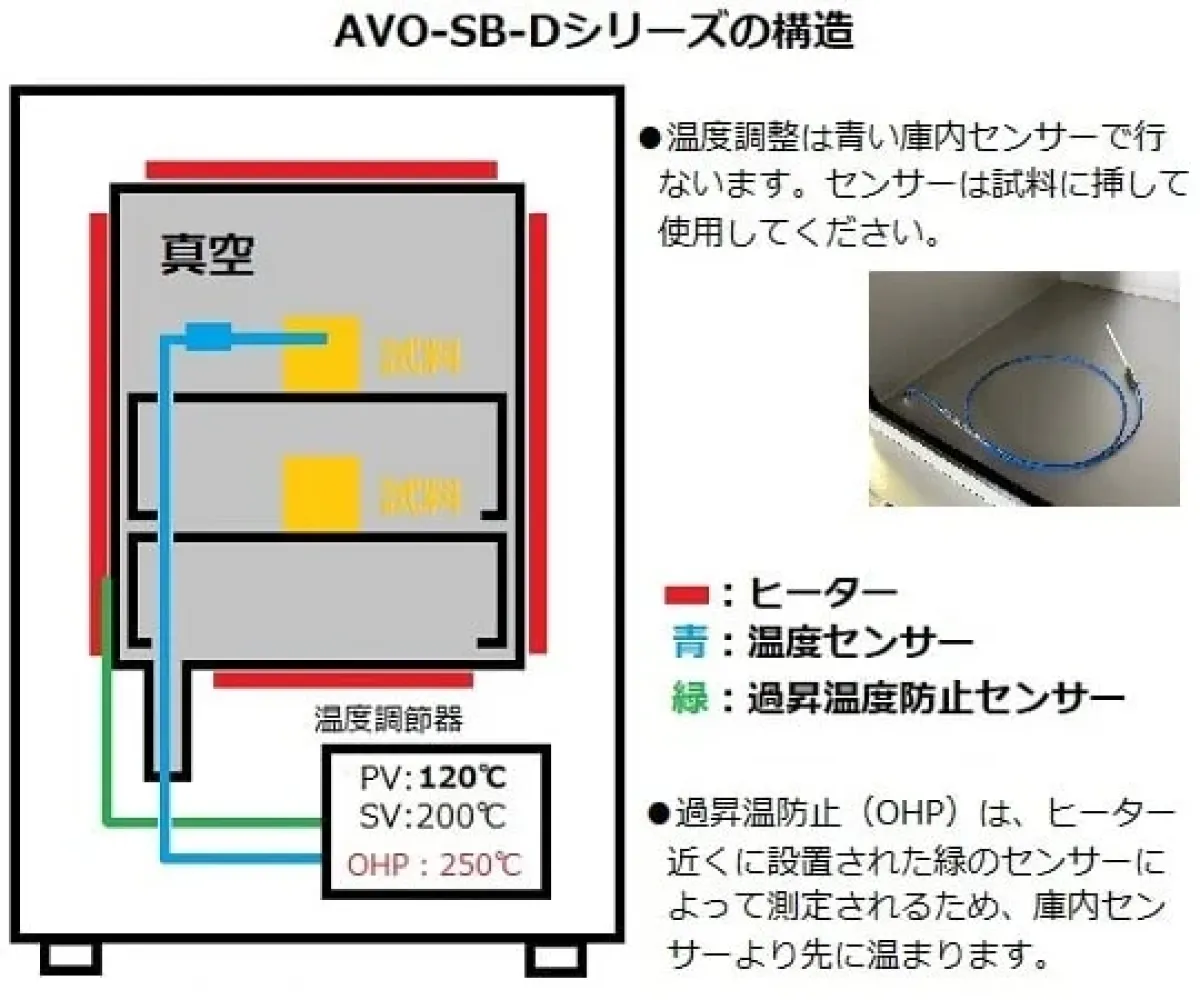

• Sensor: K Thermocouple (1 each for sample direct temperature control and overheating prevention)
• Safety devices: overrise prevention function (digital setting type), self-diagnosis function (heater disconnect detection/sensor malfunction detection), overcurrent breaker

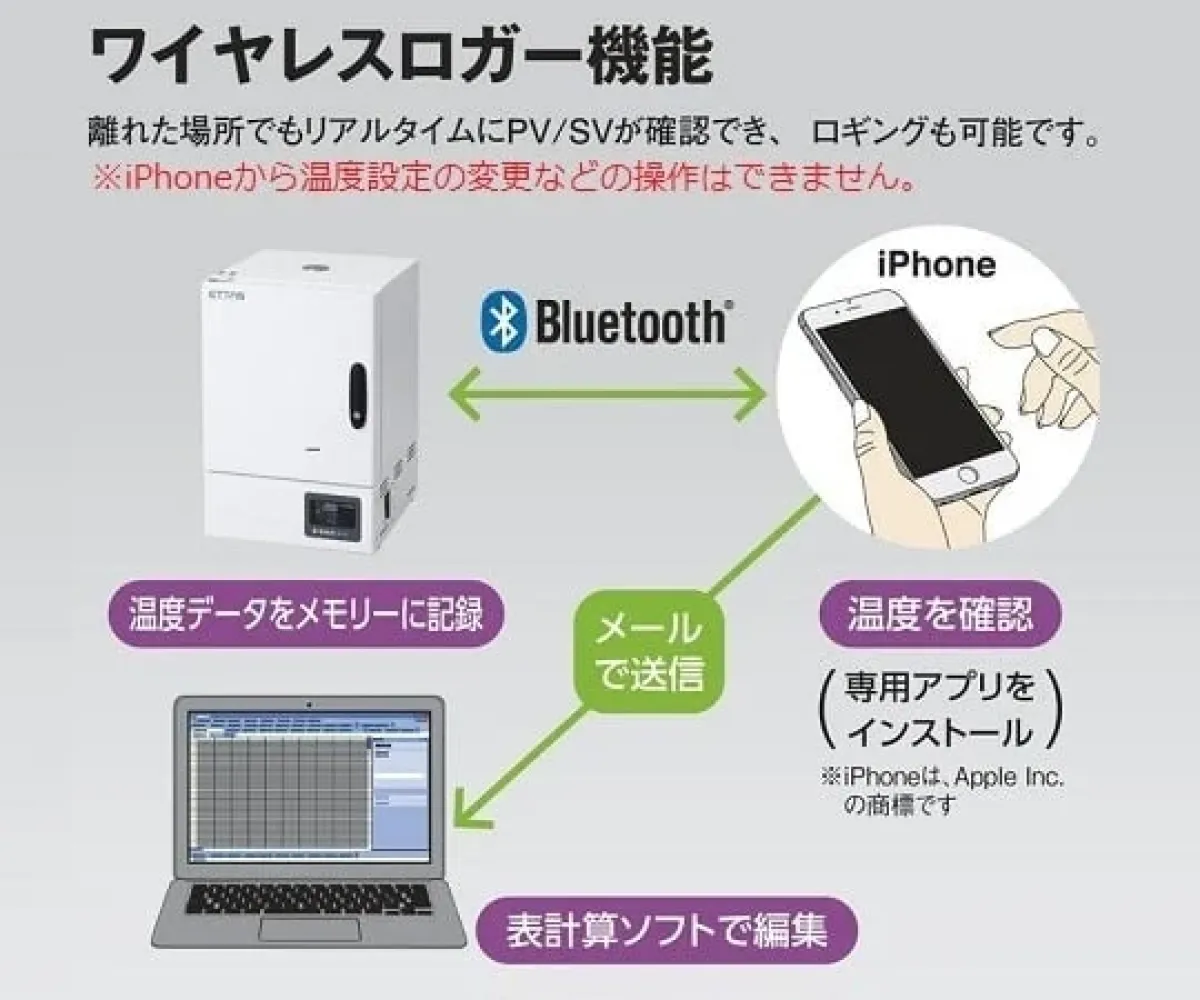

• Standards: Bluetooth Smart (Bluetooth 4.2), Distance/Class 2 (approx. 10 m)
• Recording period: 2 sec/10 sec/30 sec/1 min/10 min/60 min
• Display period: 2 sec/10 sec/30 sec/60 sec/300 sec
• Recording method: Full stop (recording stopped in full memory)
• Recording format: CSV format
• OS: iOS 11.4 or later
• Compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X

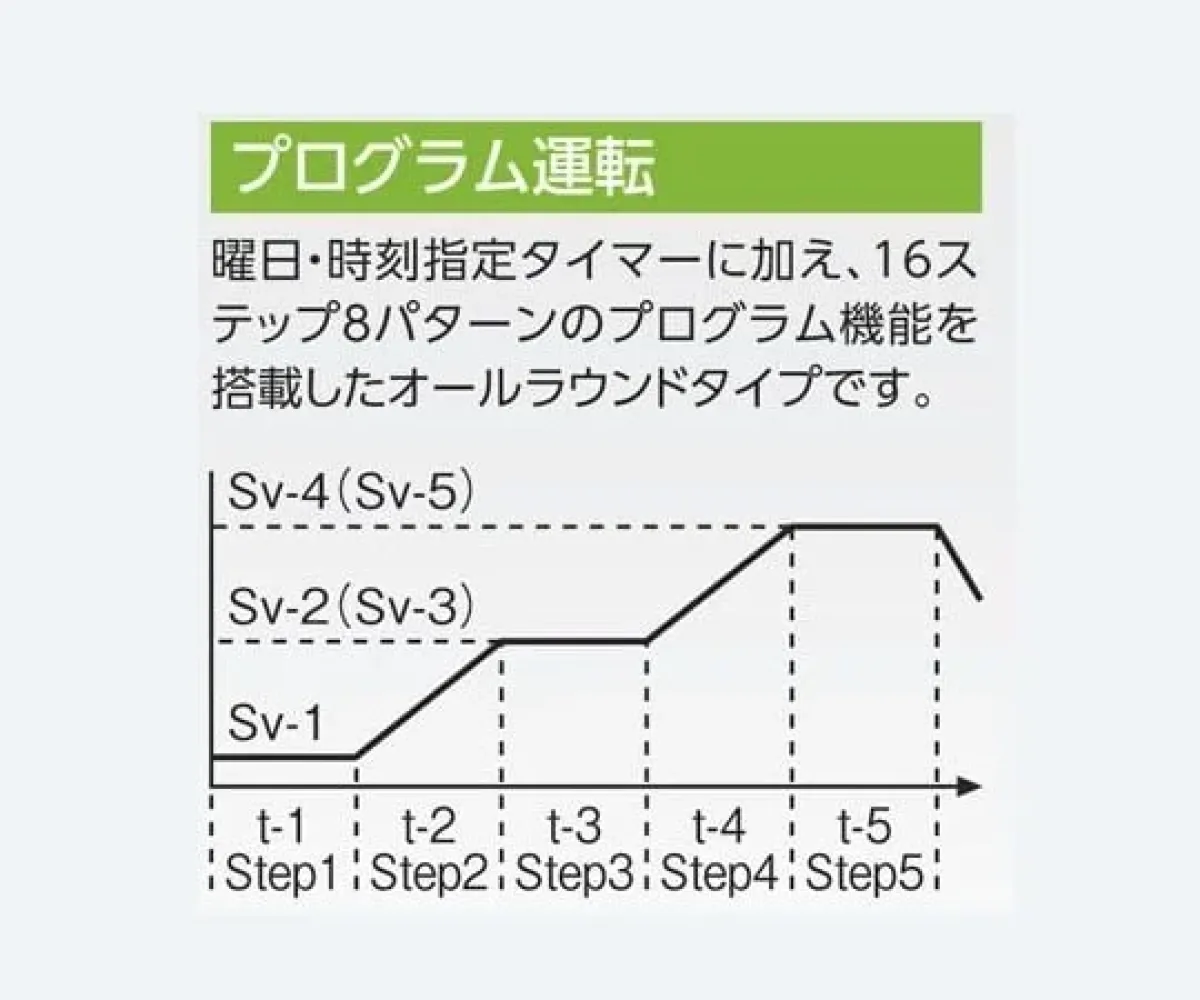

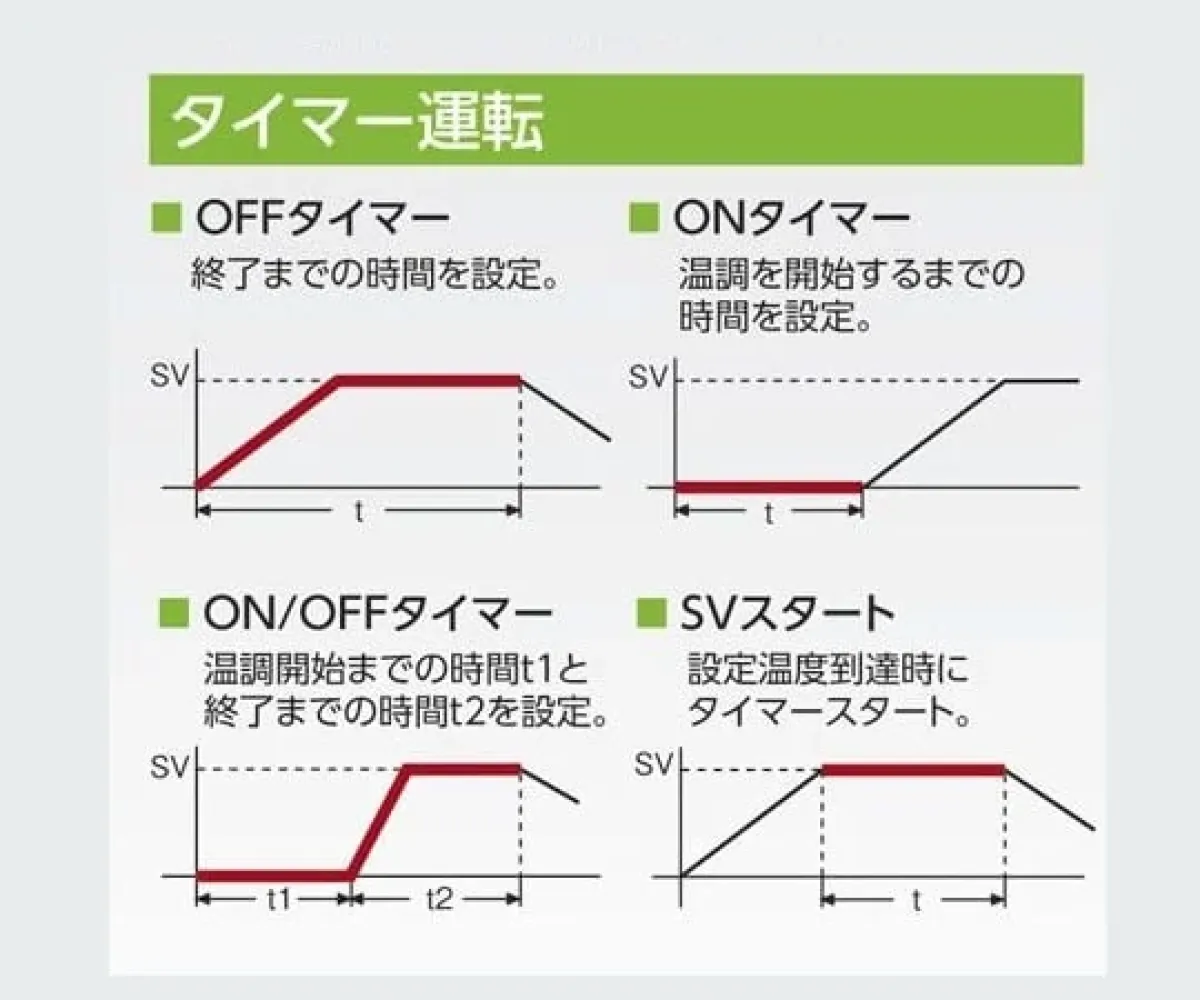

• Additional functions: Timer (ON Timer, OFF Timer, SV start, ON/OFF Timer)/Temperature gradient program of up to 16 steps x 8 patterns/Timer for specifying day and time of day
• Error output: 100 VAC 1 A output (M4 terminal block)
• Material
• Exterior: Steel Baked Paint
• Interior: SUS 304
• Shelf: Aluminum
• Valves, Pipes and Fittings: Brass (C -3771, C -3604)
• Vacuum gauge: brass (C 2680 TW, C 3604 BD)
• Door Packing: Silicone Rubber
• Observation Window: Tempered Glass (12 mm Thickness)/Polycarbonate Protective Plate
• External dimensions (mm): 453 x 486 x 619
• Interior dimensions (mm): 310 x 310 x 310
• Heater capacity: 1360 W
• Power supply: 100 VAC 50/60 Hz 14 A
• Power cord length: 2.5 m
• Weight: approximately 45 kg
• Accessories: 2 shelf boards
• Heating method: Can body heating method
• Temperature setting range: 40 ~ 220 degrees C
• Operating vacuum range: 0.1 ~ 101 kPa
• Control method: PID control and SSR output
• Valve diameter: 13 mm in outside diameter
• *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
•
