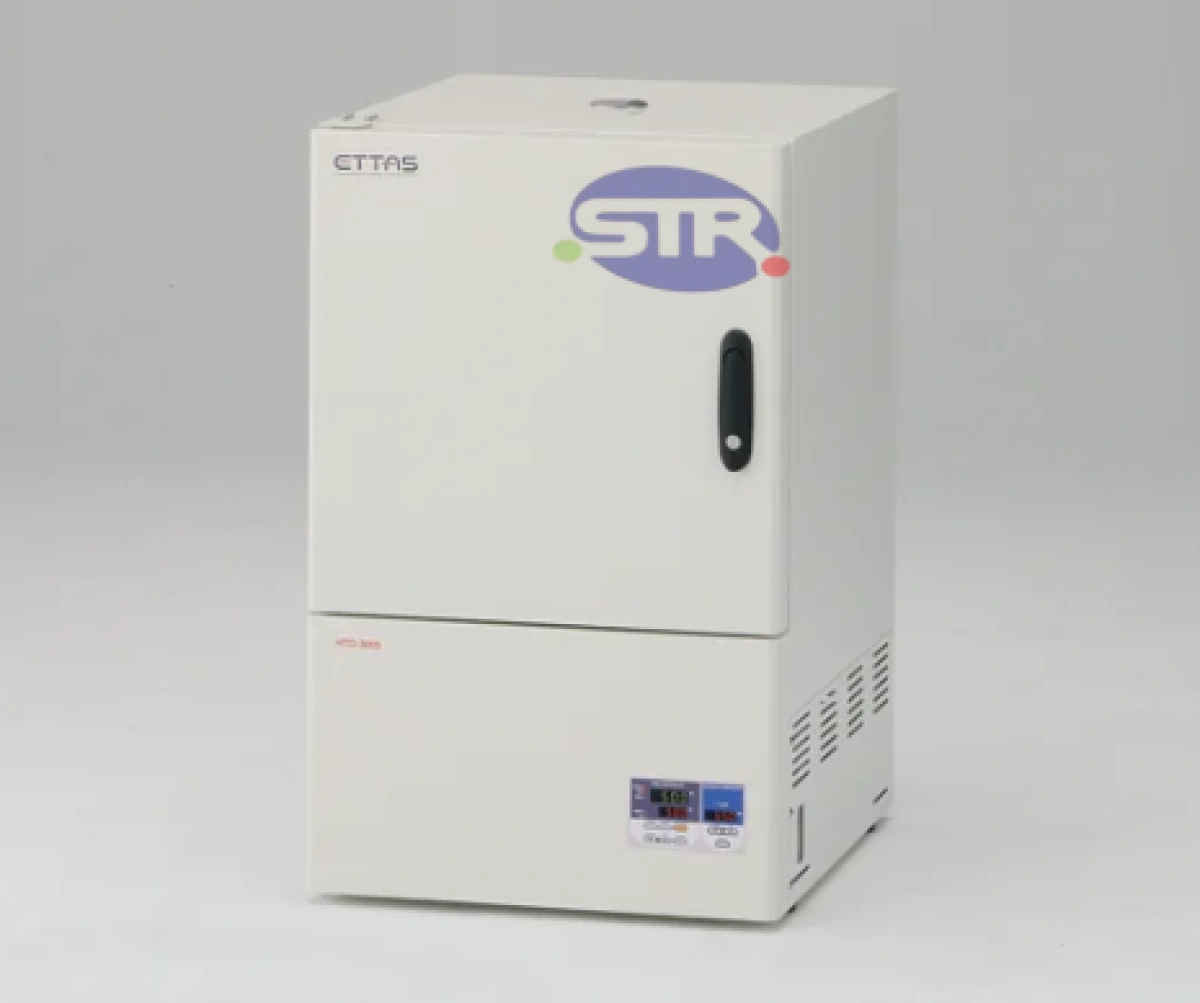

2-7833-12-28　High Temp Oven (ETTAS) with Pre-shipment Validation　HTO-450S

Thông số kỹ thuật

• • Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
  • Validate (FAT) before shipping.
  • After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
  • Appendix: FAT report/Calibration Certificate of used measuring instrument copied
  • *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
  •
  • Temperature points: 9 points at 650 degrees Celsius
  •
  • Internal dimensions (mm): 450 x 450 x 450
  • Temperature setting range (deg. C): room temperature + 50 ~ 650
  • Convection system: Natural convection

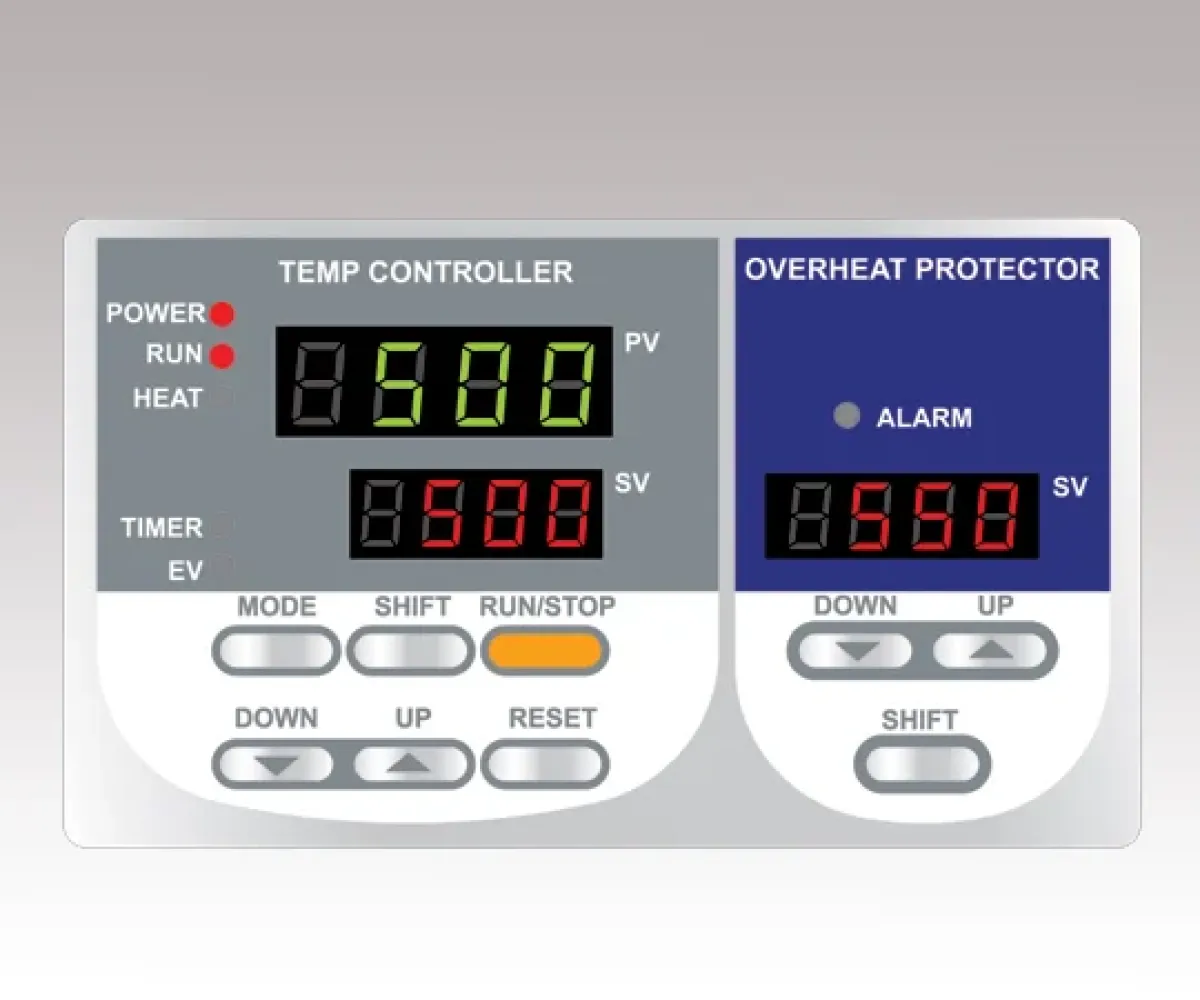

  • Temperature control system: 3-stage PID control/SSR output
  • Functions: Timer function and program function
  • Safety devices: Digital temperature setting type independent heat prevention device, Burnout mechanism (Heater OFF when sensor is disconnected), Overcurrent breaker
  • Storage capacity: 91 L
  • Exterior/Interior: Steel/Stainless Steel (SUS 310)
  • External dimensions: 660 x 707 x 970 mm
  • Weight: approximately 50 kg
  • Power supply: 100 VAC 50/60 Hz Round terminal connection (without plug) 18.5 A

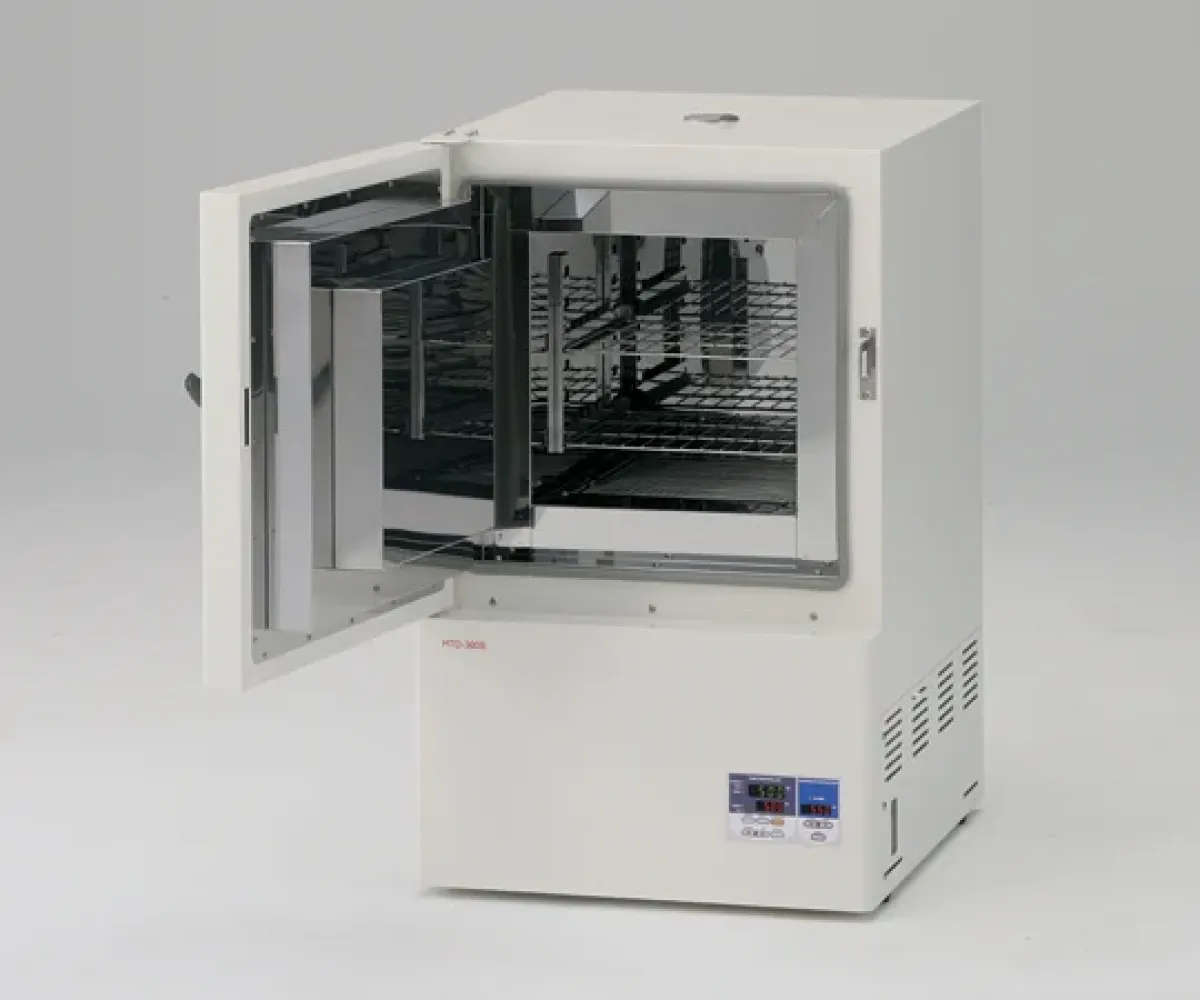

  • Accessories: 2 sets of shelf rails and shelves (load capacity: 15 kg)
  • Local validation services (IQ/OQ) are also available.　Please contact us.
  • *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
  • *Do not put combustible materials in the cabinet.
  • *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
