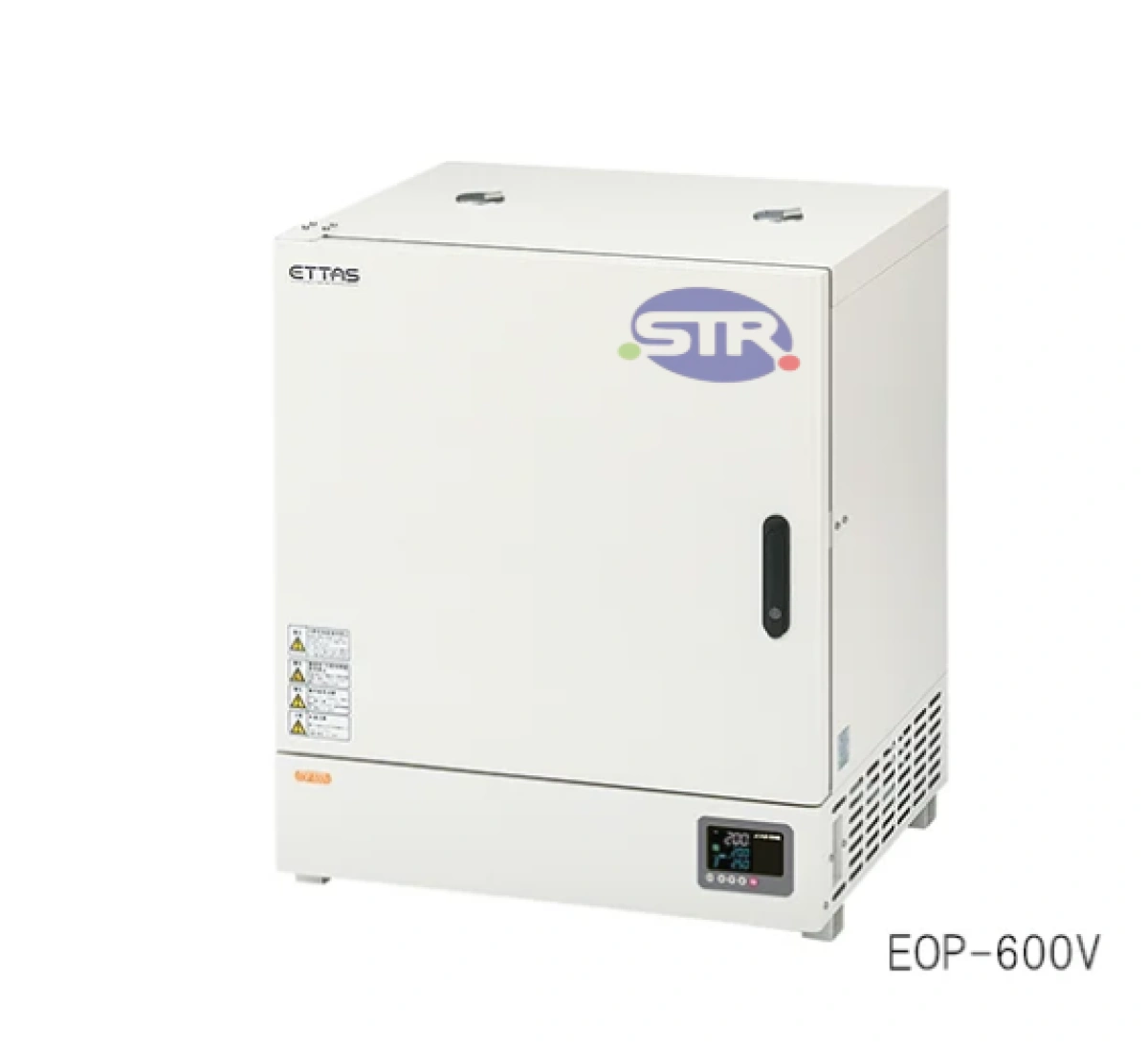

1-9381-51-28　Constant Temperature Dryer (Timer Type/Natural Convection Type) 150 L with Pre-shipment Validation　EO-600V

Thông số kỹ thuật

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
• Appendix: FAT report/Calibration Certificate of used measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
•
• Temperature points: 9 points at 300 degrees Celsius
•
• Capacity (L): 150
• Temperature adjustment range: room temperature + 20 ~ 300 degrees C
• Maximum temperature reach time: approximately 70 minutes
• Temperature distribution (JTM K05): +/- 7 (at 300 degrees C)
• Temperature variation (JIS): +/- 3 degrees C (at 300 degrees C)
• Temperature Gradient (JIS): 23 degrees C (at 300 degrees C)
• Temperature control system: PID control, SSR output

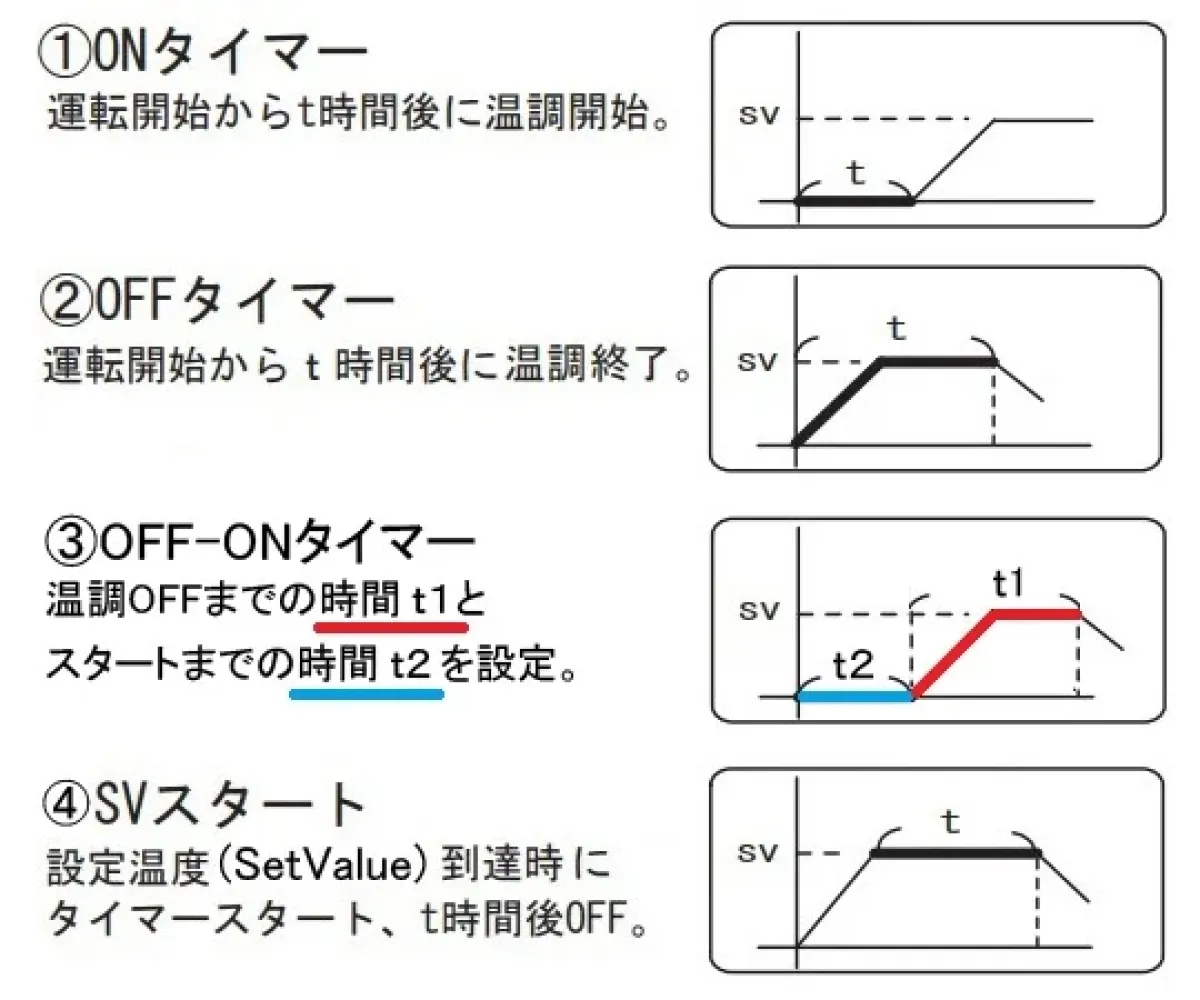

• Additional functions: Timer specification/Air jacket Natural convection type - > ON Timer/OFF Timer/SV start/OFF Timer
• Safety devices: Independent overtemperature protection device (operating temperature can be set digitally)/Overcurrent breaker/burnout mechanism (heater OFF when sensor is disconnected)
• Heater capacity: 1400 W
• Temperature Sensor: K thermocouples x 2 (1 each for controlling temperature and preventing excessive rise)
• Internal dimensions: 600 x 500 x 500 mm
• Shelf Pitch/Number of Racks: 35 mm/13 Racks
• Exterior/Interior: Steel powder coating/Stainless steel (SUS 304)
• Vent: 32 mm in diameter x 2
• External dimensions: 700 x 610 x 830 mm
• Weight: approximately 50 kg
• Power supply: 100 VAC 50/60 Hz Cord length 2 m (3P plug)
• Current rating: 14.5 A
• Shelf load capacity: 5 kg
• Accessories: 2 shelf boards, 2 shelf rails
• Local validation services (IQ/OQ) are also available.　Please contact us.
• *On-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits inspection documents.
• *Do not put combustible materials in the cabinet.
• *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
