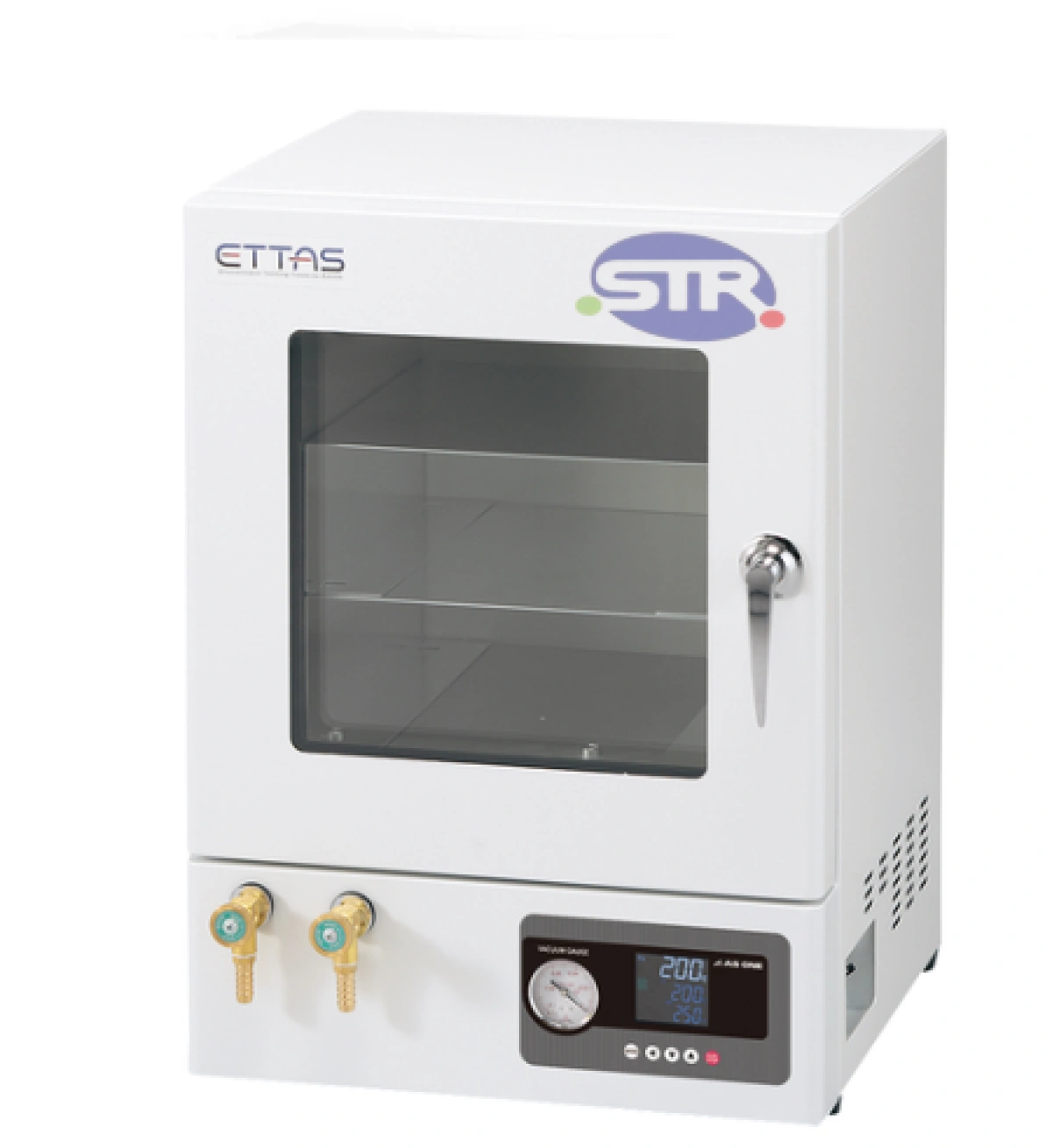

1-2186-13-22 ETTAS Vacuum Dryer (V Series) Pre-Shipment Inspection Certificate AVO-310V

SKU: AVO-310V

Đặc trưng

  • Standard model of vacuum dryer.
  • For easy piping and operation, a valve for connecting a vacuum pump and a vacuum gauge are placed on the front operation panel.
  • Uses a double door consisting of a tempered glass door and a protective polycarbonate door.
  • Uses heat-resistant packing for excellent durability and airtightness.

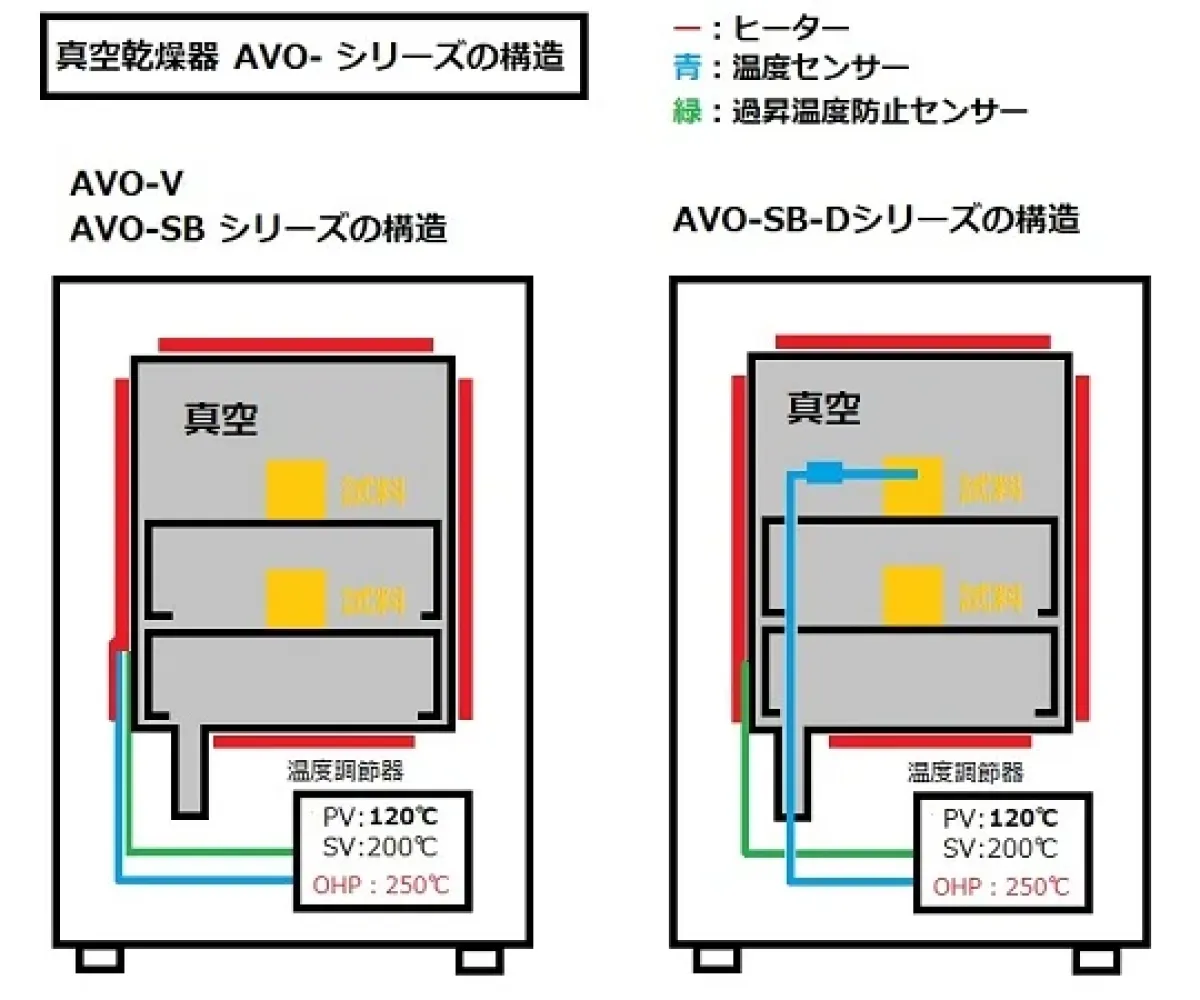

  • In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
  • A standard model that can be digitally set for both temperature control and excessive rise prevention.
Chia sẻ:

Thông số kỹ thuật

  • Standard model of vacuum dryer.
  • A vacuum pump connection valve and vacuum gauge are placed on the front operation panel for easy piping and operation.
  • Double doors with tempered glass doors and protective polycarbonate doors are used.
  • Heat-resistant silicon packing provides superior durability and airtightness.
  • In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.
  • Standard model with digitally configurable temperature control and over-rise prevention settings.
  • Appendix: Inspection Certificate documents
  • *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
  • This product is compatible with the Validation Service (IQ/OQ). Please contact us.
  • *Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer's site.
