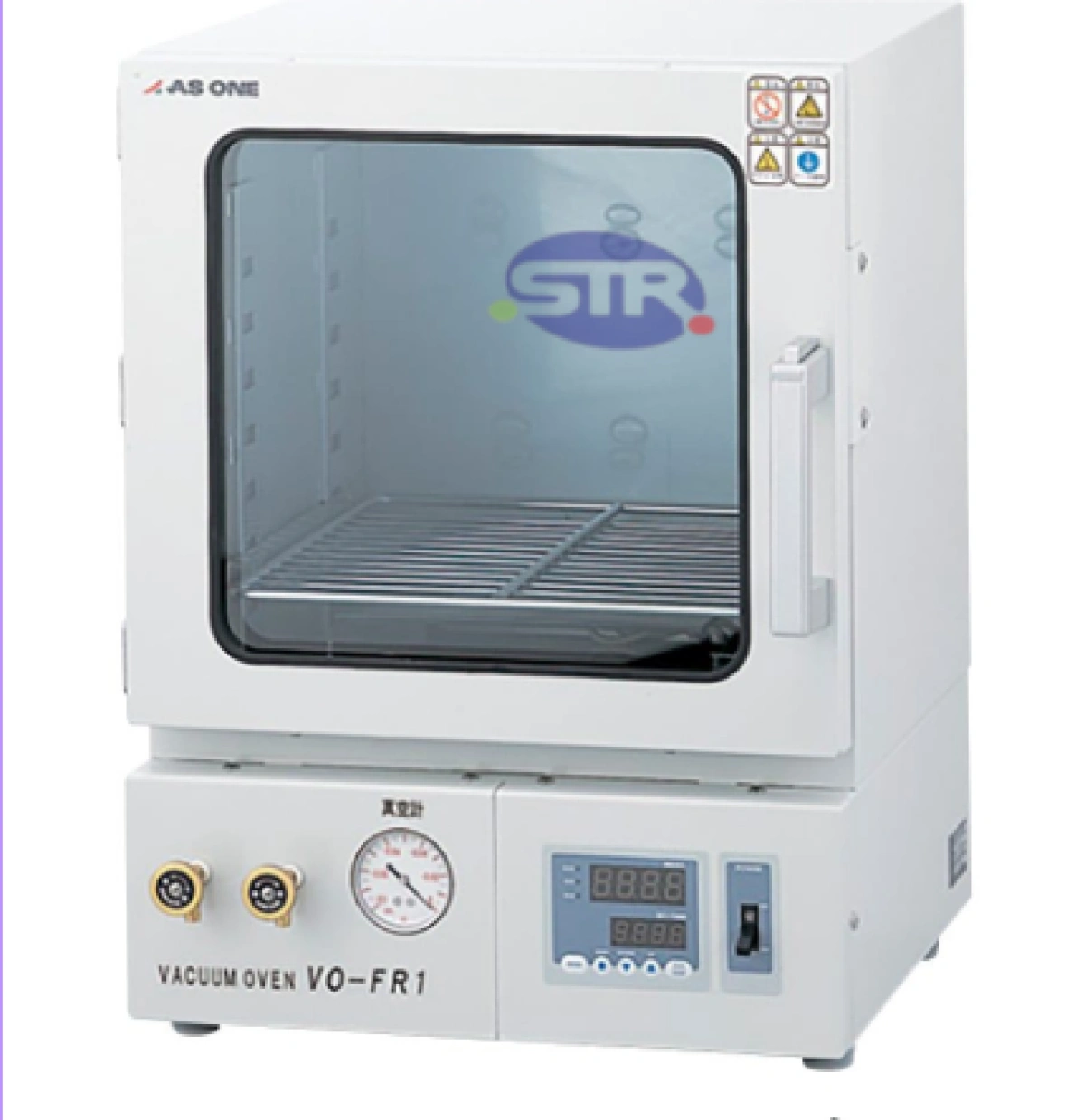

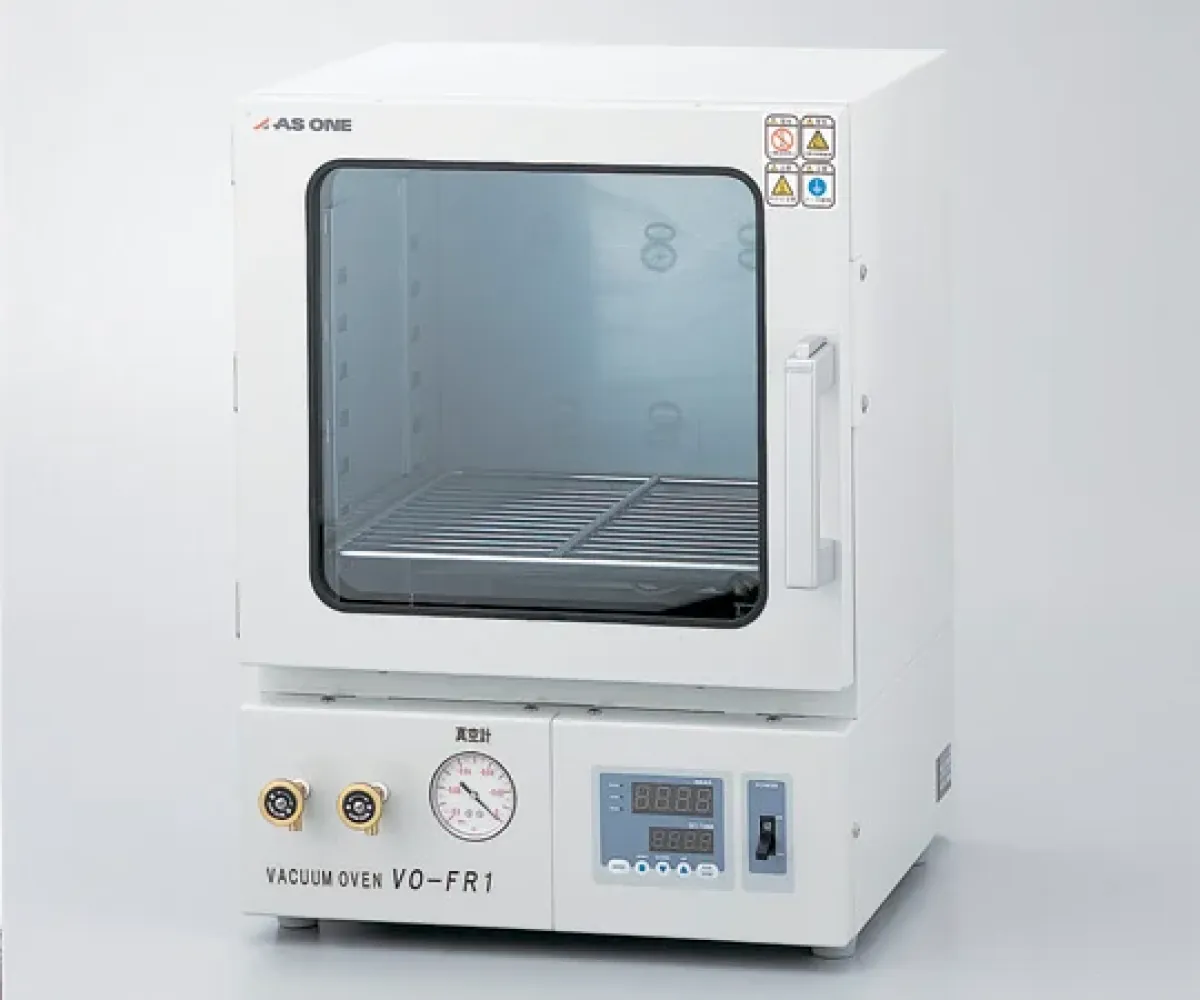

1-6000-01-22 Vacuum Dryer (Far-Red Type) with Pre-Shipment Inspection Document VO-FR1

SKU: VO-FR1

Đặc trưng

  • Drying time can be shortened by the far-red heater installed in the vacuum chamber.
  • Heater power consumption is 1/2 or less of conventional products.
  • The vacuum chamber heating makes the body compact and lightweight
Chia sẻ:

Thông số kỹ thuật

    • Heater Capacity: 500 W
    • Heating Temperature Range: Normal Temperature ~275°C
    • Vacuum Chamber Temperature Control Range: Room Temperature ~150°C
    • Maximum temperature reached: 275°C
    • Degree of vacuum: 133 Pa (1Torr)
    • Vacuum Chamber Material: Stainless Steel (SUS304)
    • Observation window size: 280 x 270 mm
    • Vacuum Valve Hose Nipple Diameter: φ8mm
    • With Timer Function
    • Power: 100 VAC 50/60Hz
    • Power Cord: Approx. 1.5 m (3P Plug)
    • Interior Dimension (mm): 300 x 300 x 275
    • Weight: Approx. 31 kg
    • Accessory: Gold Rack x 2
    • Recommended Pump: (1-672-07) Oil Rotary Vacuum Pump G-50SA
    • *Please be careful when selecting a product because the temperature of the product to be dried will rise significantly from the internal temperature.
    • This product is compatible with the validation service (IQ/OQ). Please contact us.
    • *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
