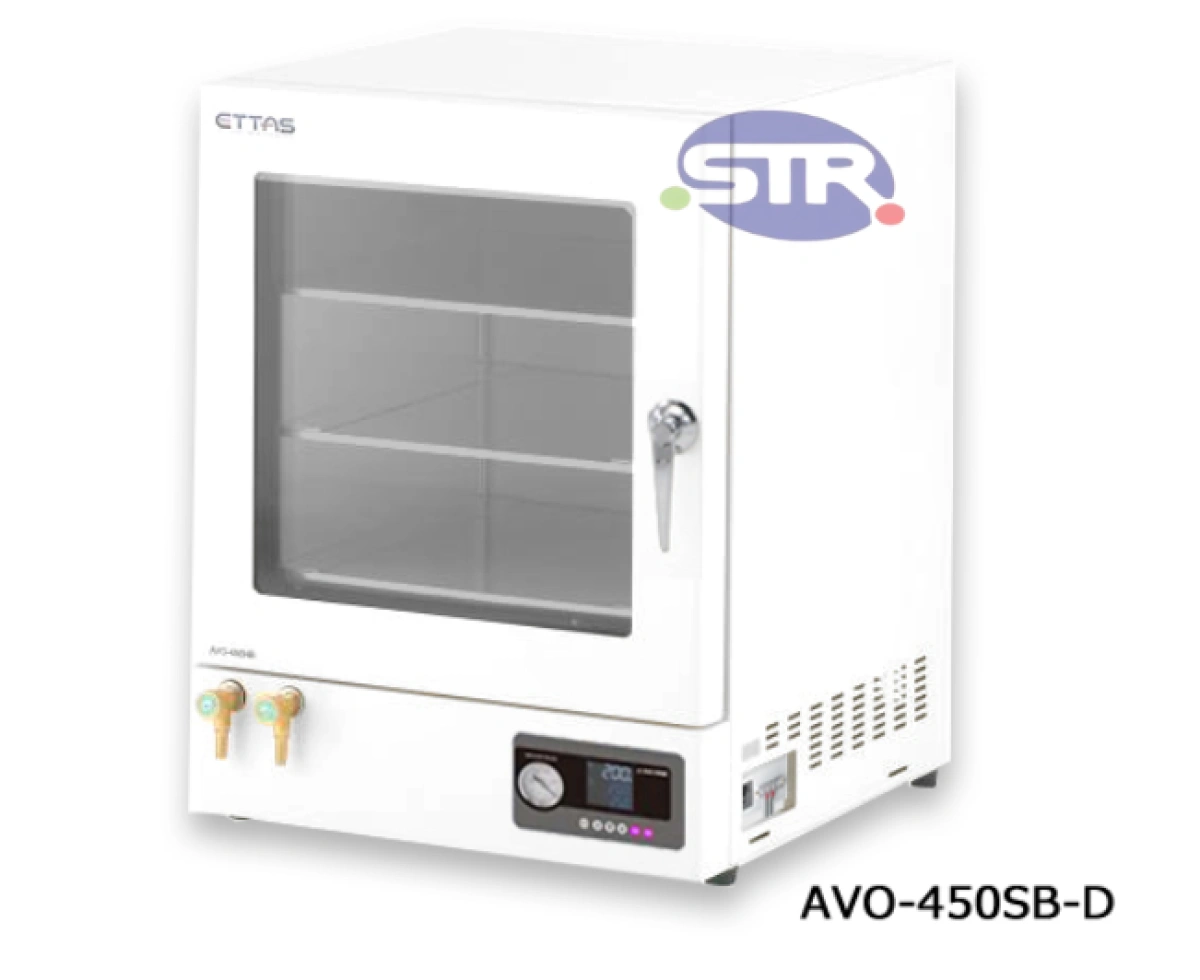

1-7547-64-28 Vacuum dryer (SB-D series) with Pre-shipment Validation AVO-450SB-D

SKU: AVO-450SB-D
Chia sẻ:

Thông số kỹ thuật

  • Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
  • Validate (FAT) before shipping.
  • After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
  • Appendix: FAT report/Calibration Certificate of used measuring instrument copied
  • *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
  •
  • Temperature point: one temperature point, vacuum degree
  •
  • Storage capacity (L): 91
  • Additional functions: Timer function, program function, day/time Timer
  • Sensor: K Thermocouple (1 each for sample direct temperature control and overheating prevention)
  • Safety devices: overrise prevention function (digital setting type), self-diagnosis function (heater disconnect detection/sensor malfunction detection), overcurrent breaker

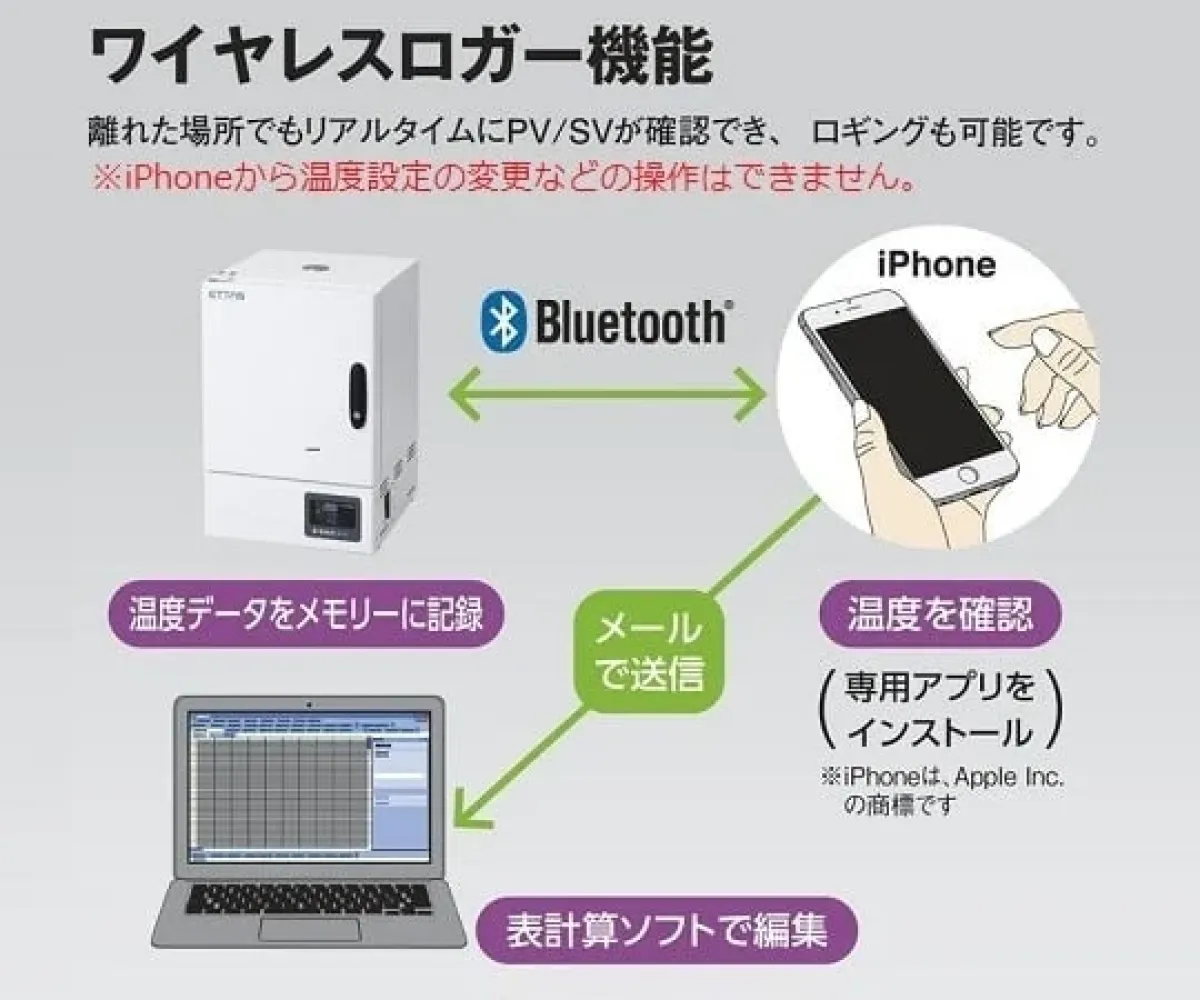

  • Standards: Bluetooth Smart (Bluetooth 4.2), Distance/Class 2 (approx. 10 m)
  • Recording period: 2 sec/10 sec/30 sec/1 min/10 min/60 min
  • Display period: 2 sec/10 sec/30 sec/60 sec/300 sec
  • Recording method: Full stop (recording stopped in full memory)
  • Recording format: CSV format
  • OS: iOS 11.4 or later
  • Compatible models: iPhone 5s, 5c, 6, 6 Plus, 6s, 6s Plus, SE, 7, 7 Plus, 8, 8 Plus, X

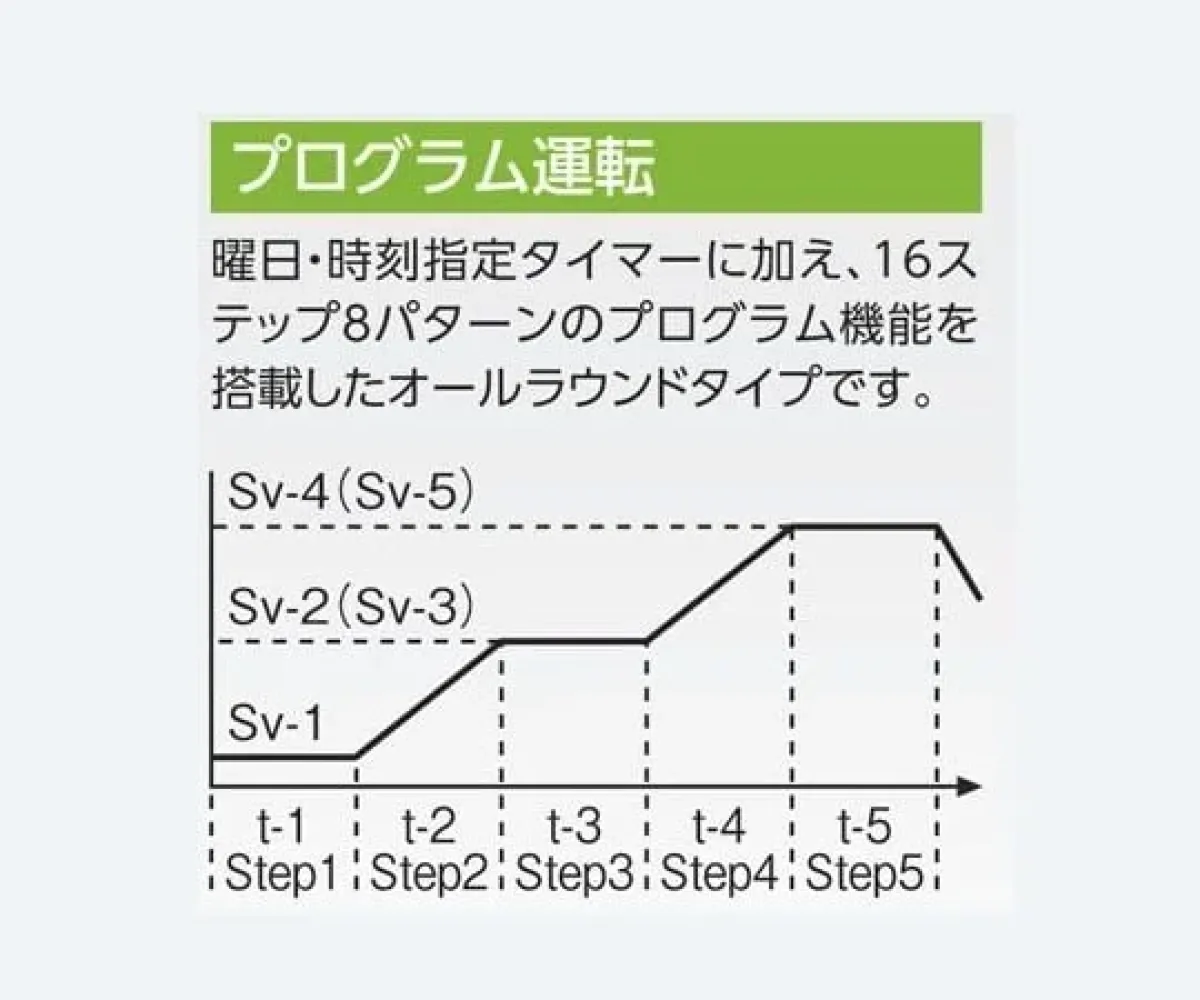

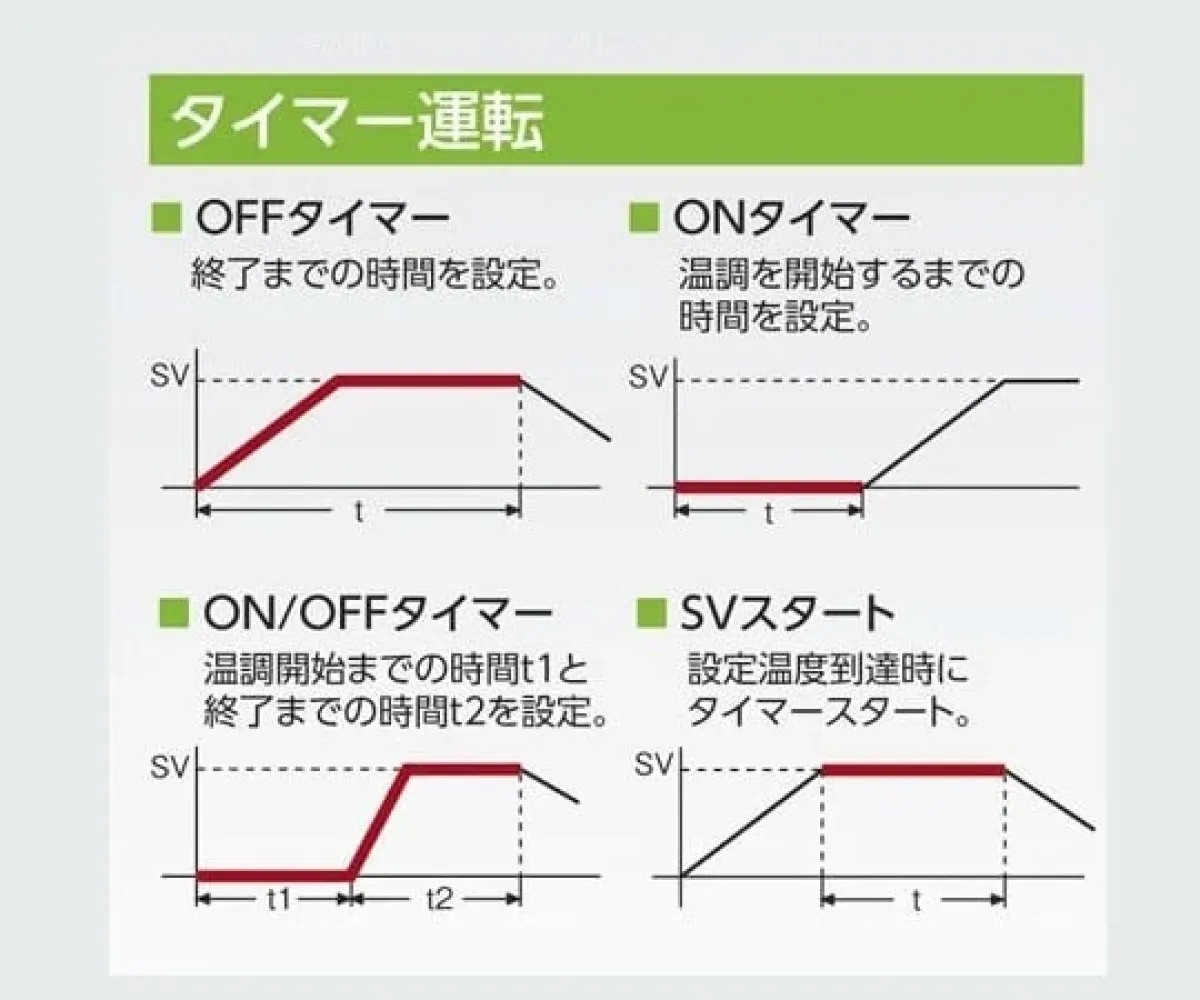

  • Additional functions: Timer (ON Timer, OFF Timer, SV start, ON/OFF Timer)/Temperature gradient program of up to 16 steps x 8 patterns/Timer for specifying day and time of day

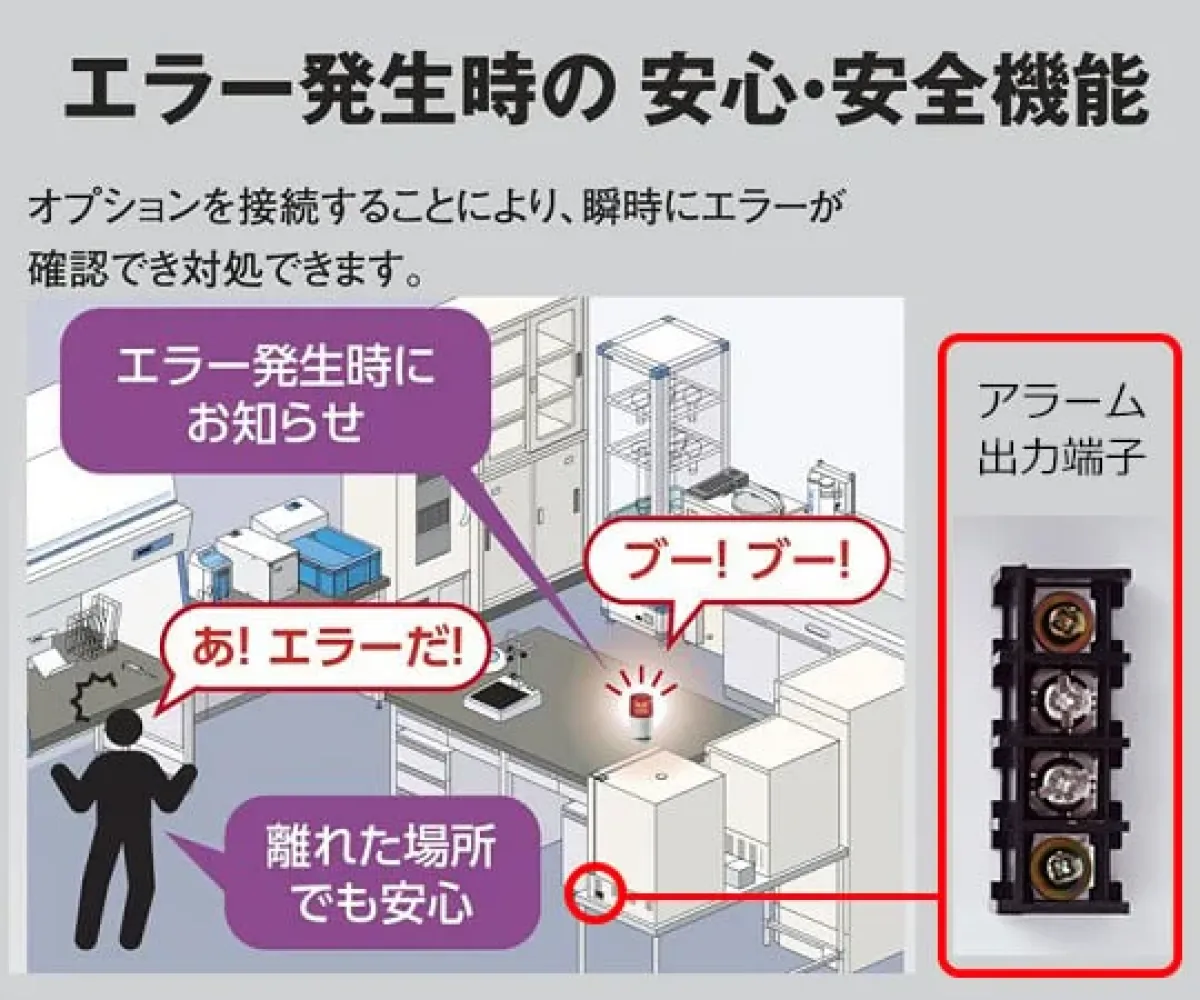

  • Error output: 100 VAC 1 A output (M4 terminal block)
  • Material
  • Exterior: Steel Baked Paint
  • Interior: SUS 304
  • Shelf: Aluminum
  • Valves, Pipes and Fittings: Brass (C -3771, C -3604)
  • Vacuum gauge: brass (C 2680 TW, C 3604 BD)
  • Door Packing: Silicone Rubber
  • Observation Window: Tempered Glass (12 mm Thickness)/Polycarbonate Protective Plate
  • External dimensions (mm): 594 x 630 x 770
  • Interior dimensions (mm): 450 x 450 x 450
  • Heater capacity: 1680 W
  • Power supply: 200 VAC, 50/60 Hz, 8.4 A single phase
  • Power cord length: 4.0 m
  • Weight: approximately 105 kg
  • Accessories: 3 shelf boards
  • Heating method: Can body heating method
  • Temperature setting range: 40 ~ 220 degrees C
  • Operating vacuum range: 0.1 ~ 101 kPa
  • Control method: PID control and SSR output
  • Valve diameter: 13 mm in outside diameter
  • *Wooden packaging (wooden frame, pallet, etc.) is used.
  • *Shipping and transportation costs, installation and assembly costs are required separately. Please inquire.
  • *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
  •
