Thông số kỹ thuật
- For accurate internal temperature control.
- A vacuum pump connection valve and vacuum gauge are placed on the front operation panel for easy piping and operation.
- Double doors with tempered glass doors and protective polycarbonate doors are used.
- Heat-resistant silicon packing provides superior durability and airtightness.
- In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.

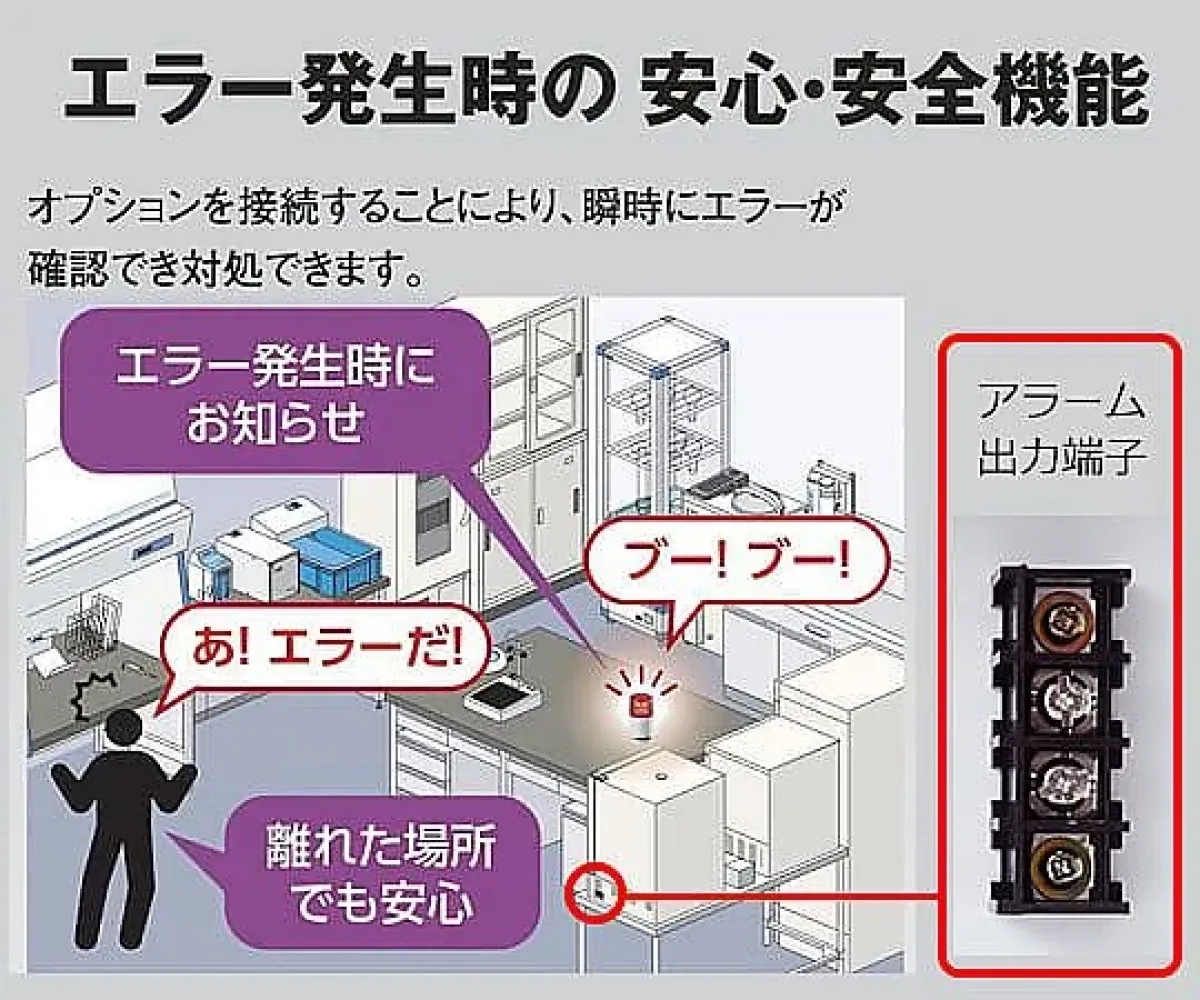

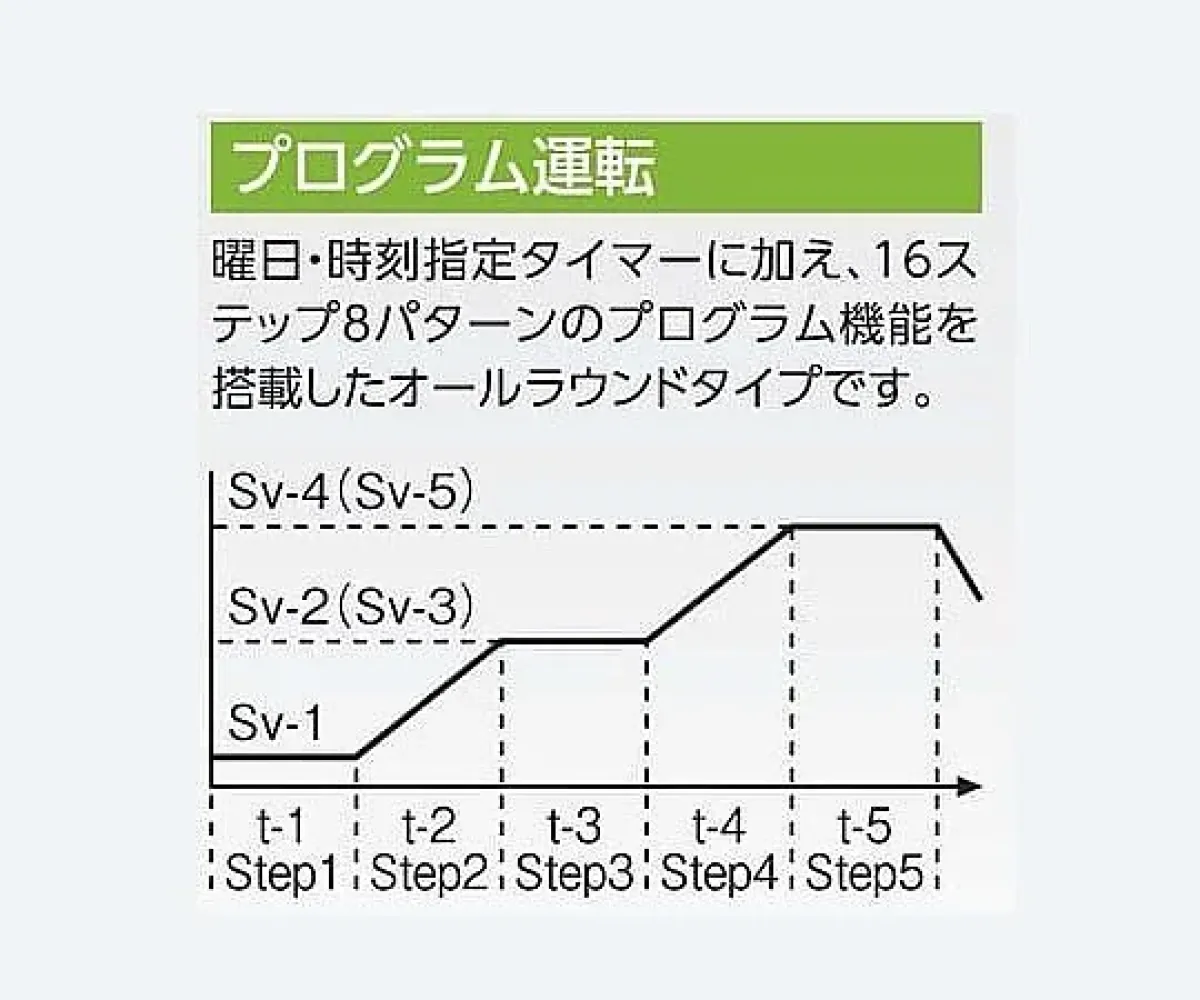

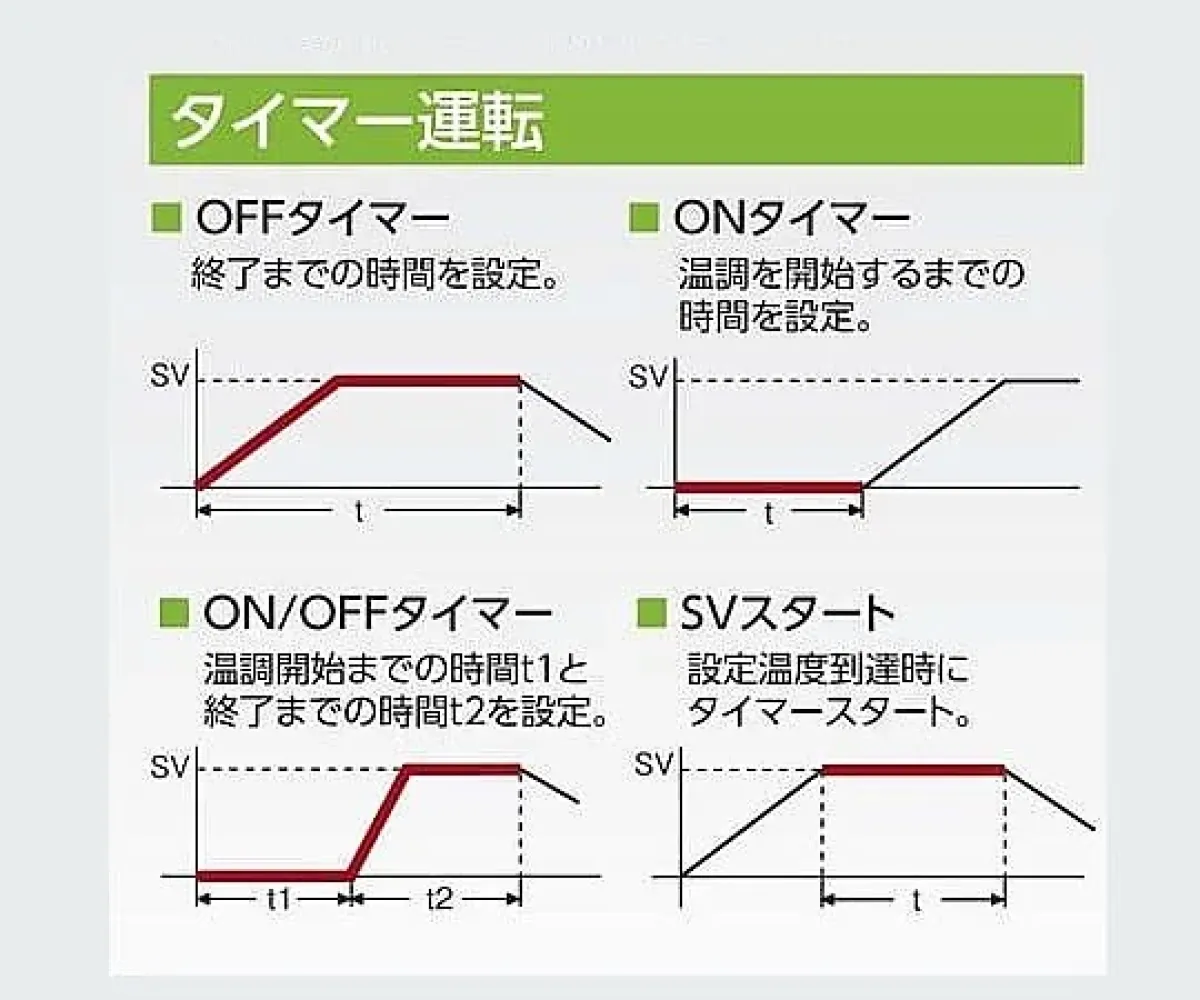

- Timers (4 types) and program operation (16 steps, 8 patterns) are standard equipment. In addition to temperature logging (Bluetooth communication), it has 100 VAC 1 A output in case of error.

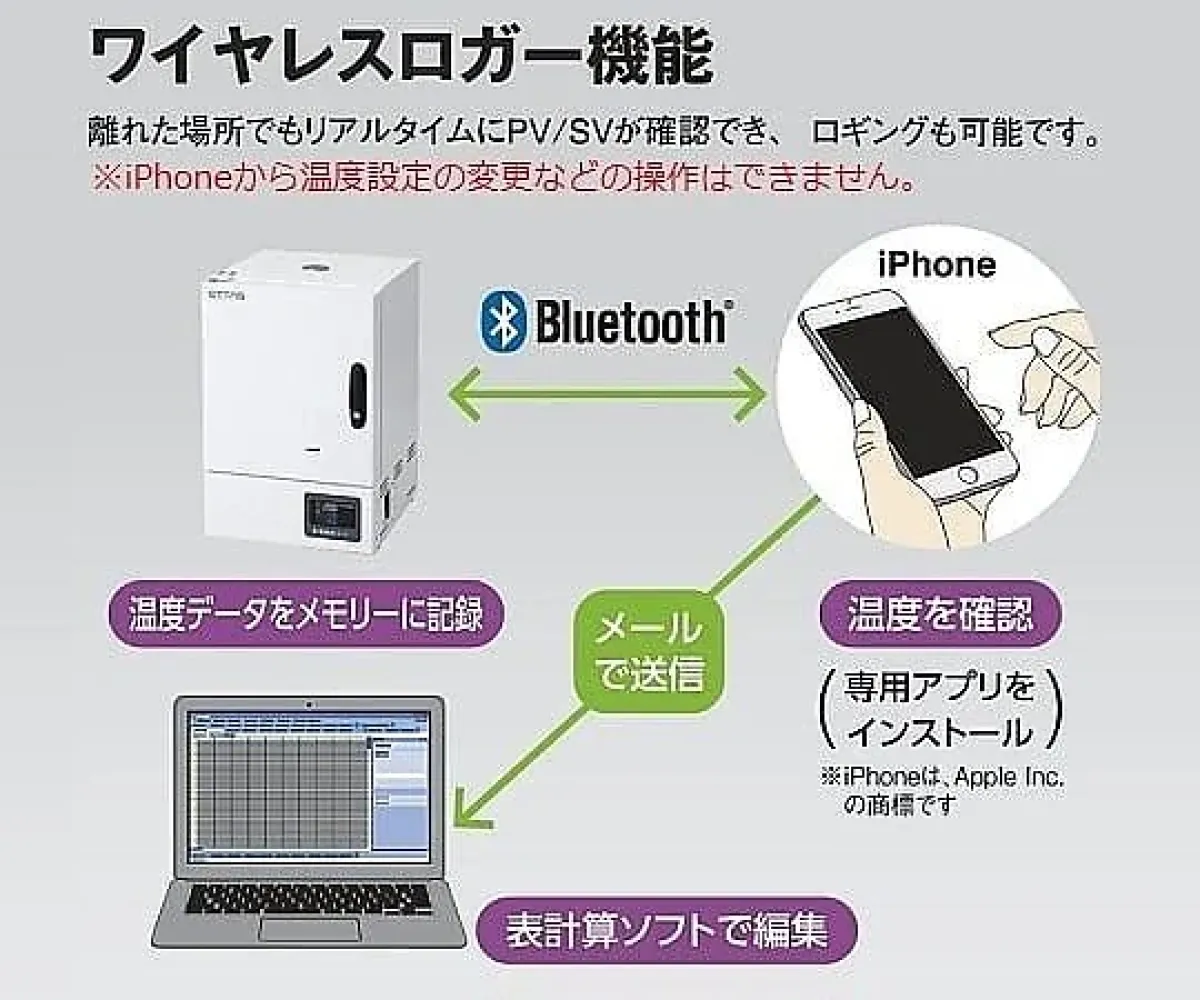

- Features of Wireless Logger App
- You can check the measured and set temperatures from a distance.
- The measured temperature and set temperature are stored in the memory in the board at regular intervals.
- You can operate it intuitively without a manual.
- Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit, and create forms.
- Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
- You can start/stop recording and erase from the app.
- Recording stops automatically when memory is full.
- Appendix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
- This product is compatible with the Validation Service (IQ/OQ). Please contact us.
- *Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer's site.
-
Kích thước gói：550×470×600 mm [Về kích thước đóng gói]
