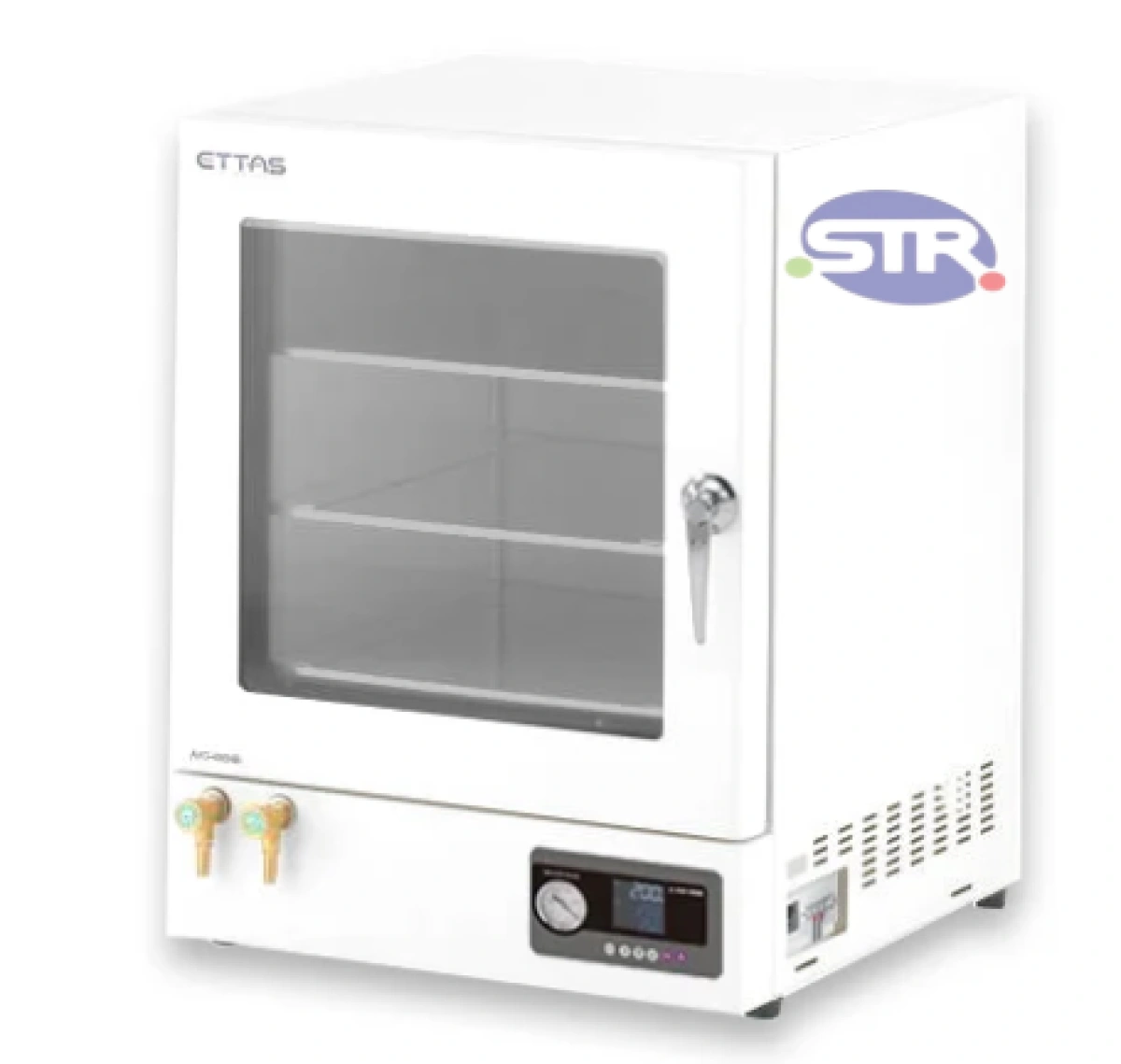

A vacuum pump connection valve and vacuum gauge are placed on the front operation panel for easy piping and operation.
Double doors with tempered glass doors and protective polycarbonate doors are used.
Heat-resistant silicon packing provides superior durability and airtightness.
In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.

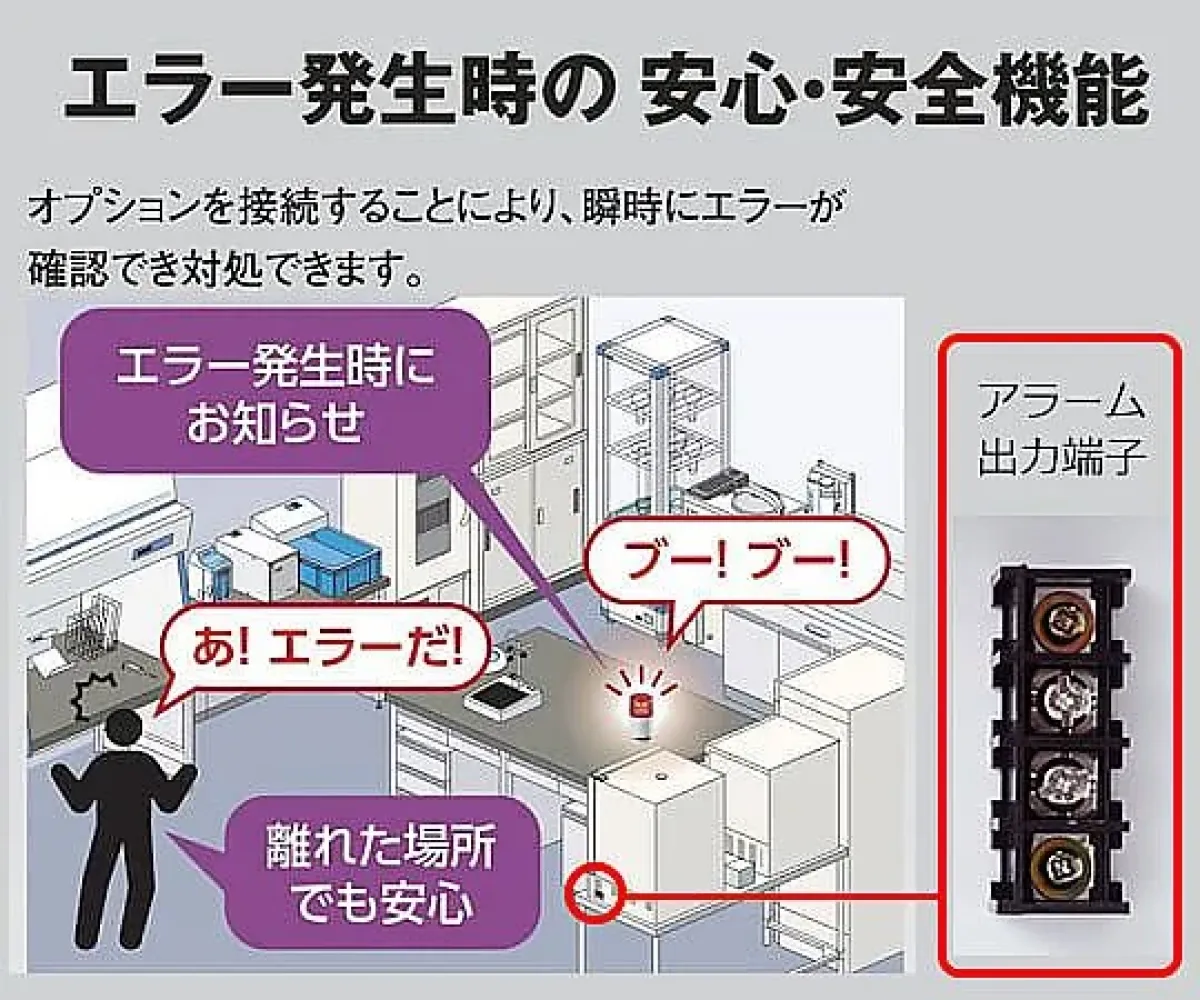

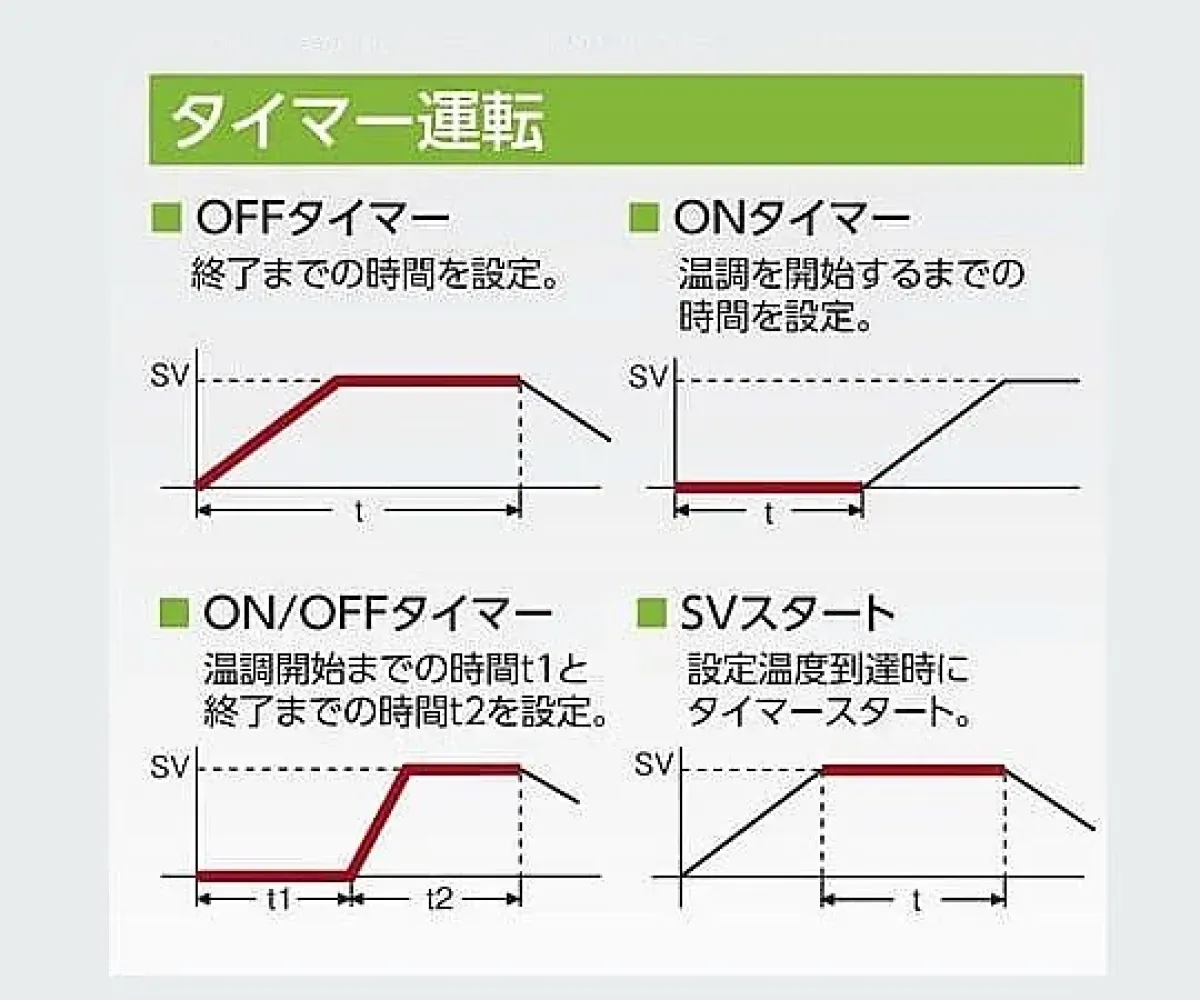

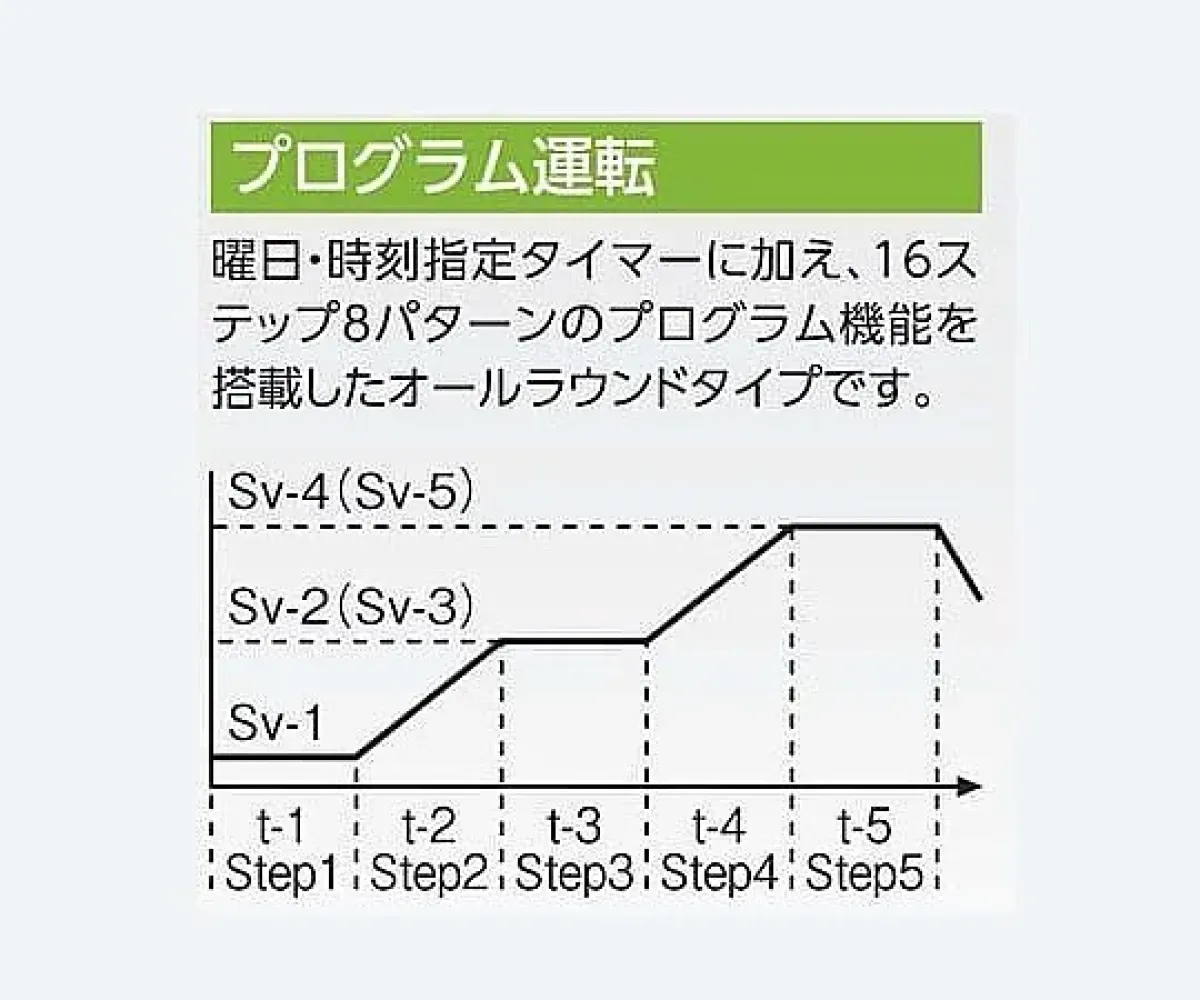

Timers (4 types) and program operation (16 steps, 8 patterns) are standard equipment. In addition to temperature logging (Bluetooth communication), it has 100 VAC 1 A output in case of error.
Features of Wireless Logger App
You can check the measured and set temperatures from a distance.
The measured temperature and set temperature are stored in the memory in the board at regular intervals.
You can operate it intuitively without a manual.
Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit, and create forms.
Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
You can start/stop recording and erase from the app.
Recording stops automatically when memory is full.
Appendix: Inspection Certificate documents
*Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
This product is compatible with the Validation Service (IQ/OQ). Please contact us.
*Validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the customer's site.
*Shipping and transportation costs, installation and assembly costs are required separately. Please inquire.
