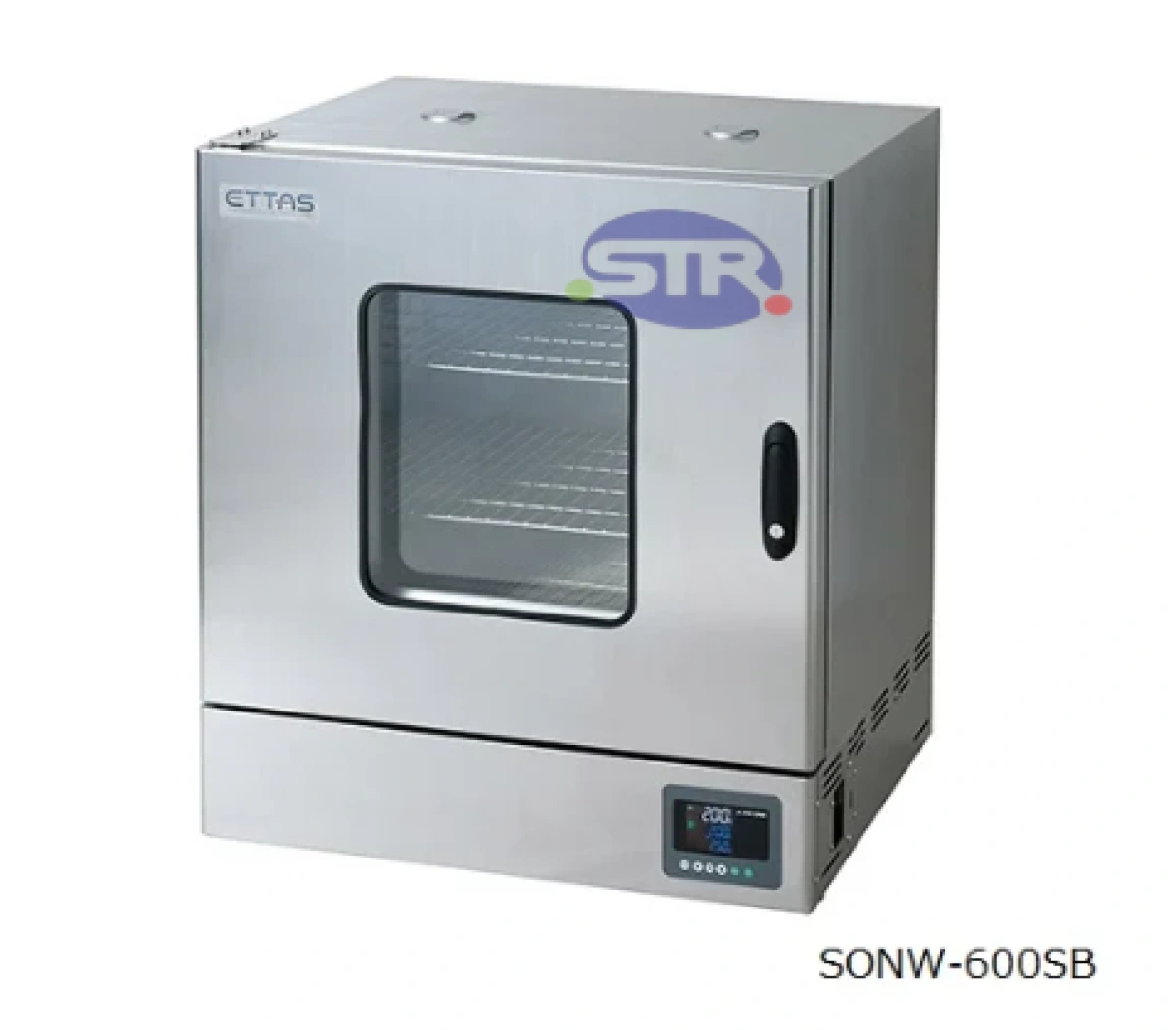

1-9001-53-22 Lò Sấy Nhiệt Độ Không Đổi (Hệ Thống Đối Lưu Tự Nhiên) Loại Thép Không Gỉ Có Cửa Sổ (Cửa Xoay Trái) Với Chứng Chỉ Kiểm Tra Trước Khi Giao Hàng SONW-600SB

SKU: SONW-600SB

Đặc trưng

  • Common Features of ETTAS/S Series: Digital overrise prevention device is standard.

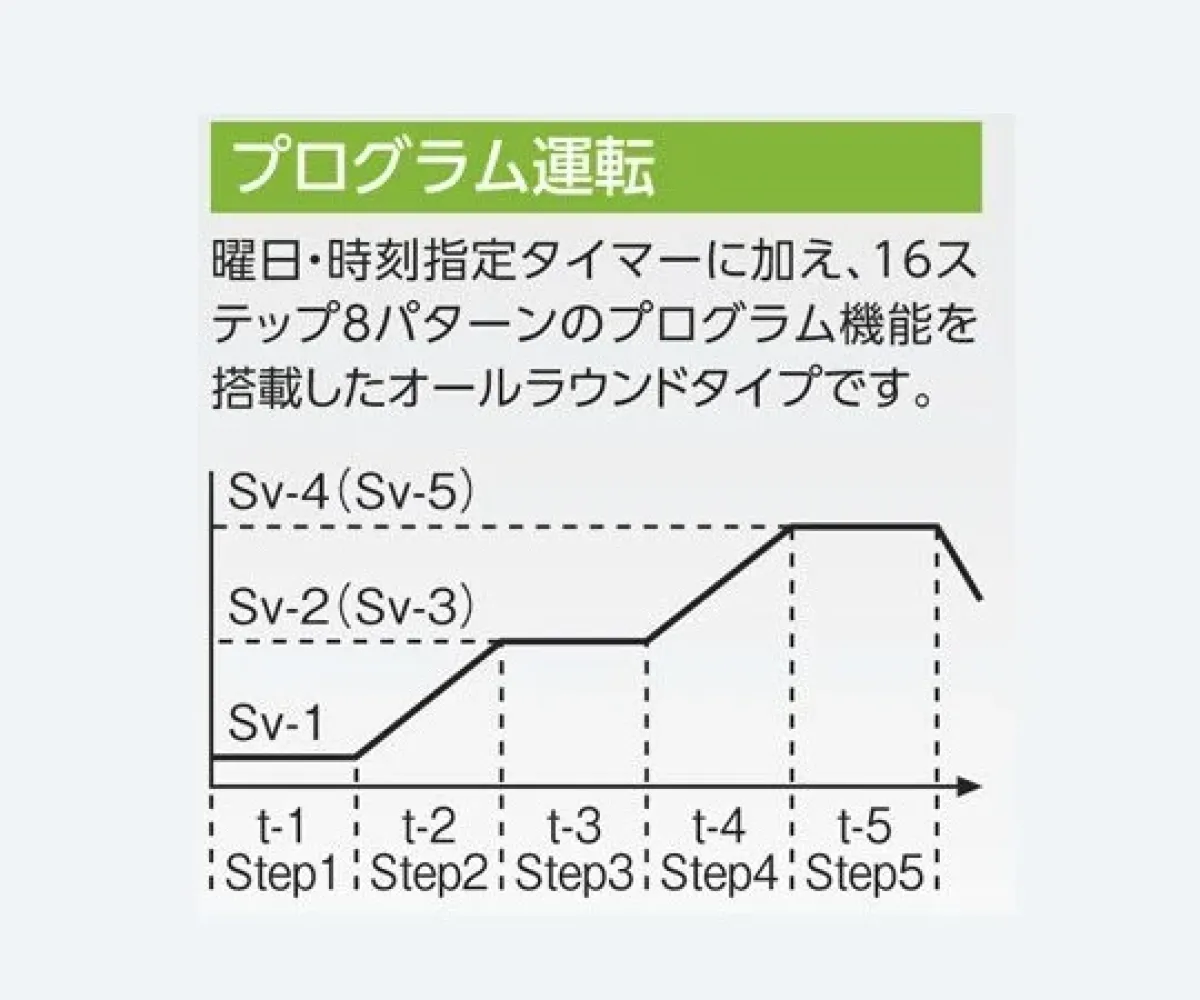

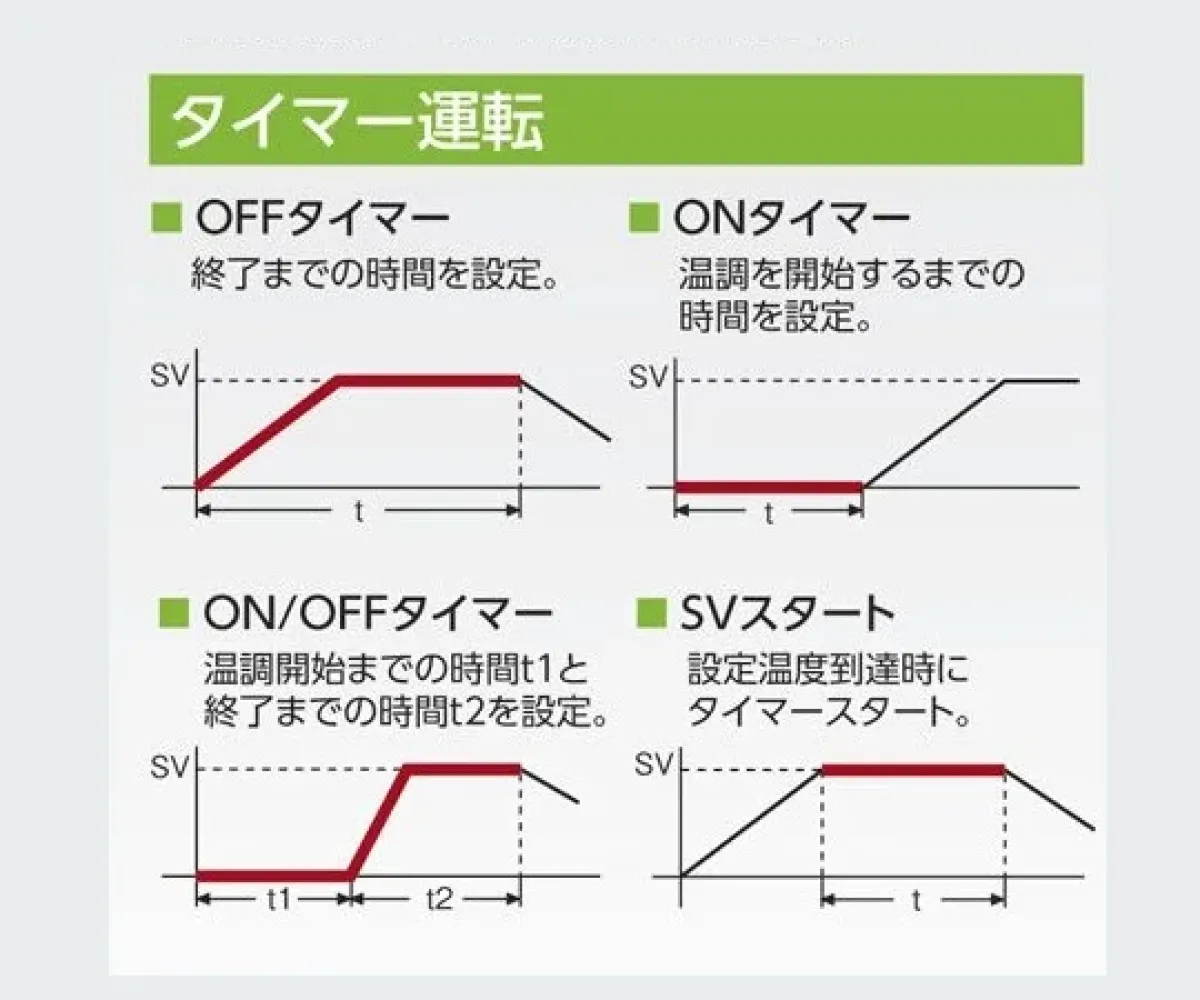

  • Three-stage PID control reduces overshoot and undershoot over a wide temperature range. It is an all-around type with 4 timer functions, day of the week and time specification timers as well as 16 step 8 pattern program functions.
  • The LCD display offers excellent visibility and operation.

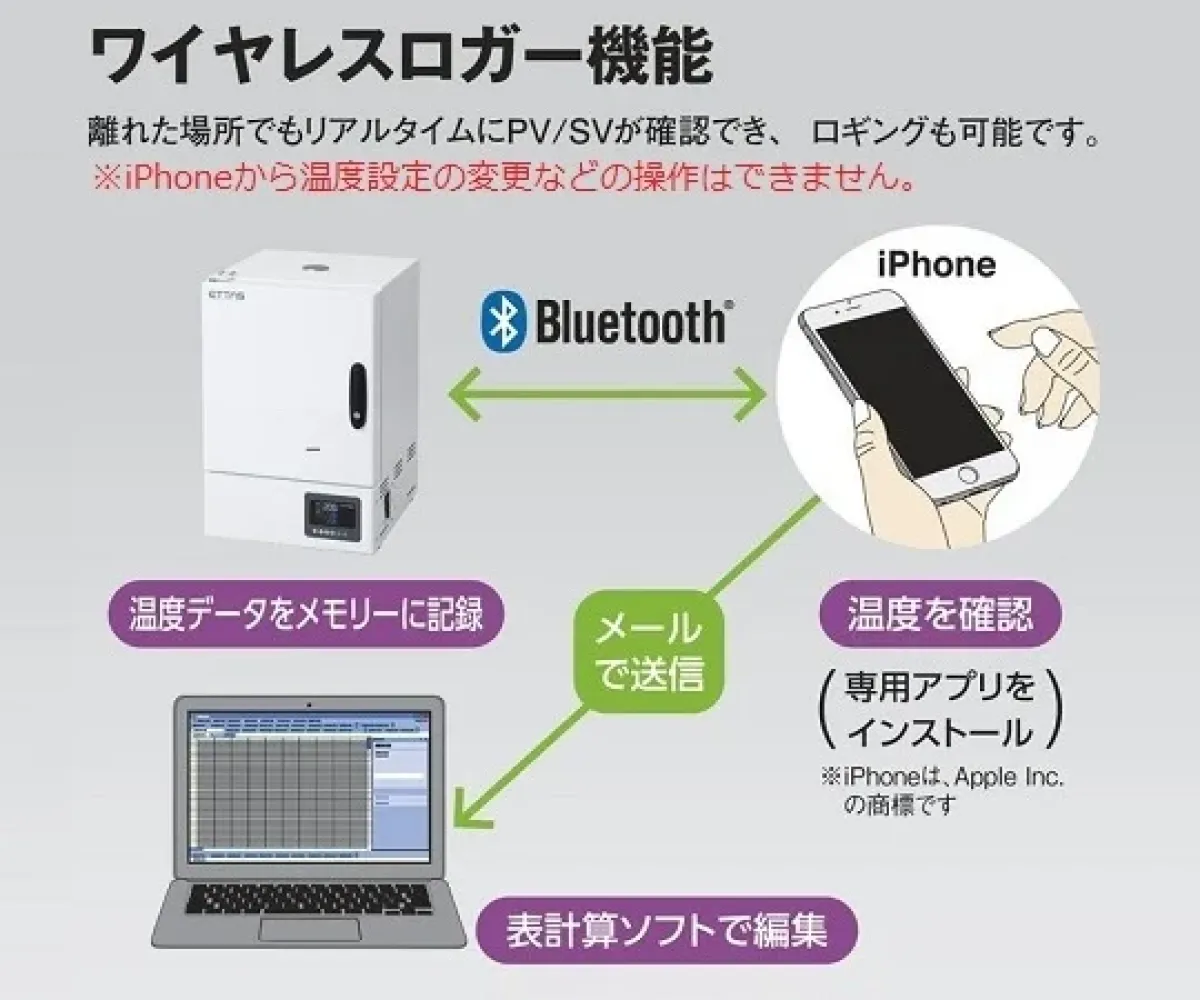

  • By connecting options, errors can be instantly identified and addressed. ( See Alarm Options ) * Wireless Logger App Features * You can check the measured and set temperatures from a distance.
  • The measured temperature and set temperature are stored in the memory in the board at regular intervals.
  • You can operate it intuitively without a manual.
  • Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
  • Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
  • You can start, stop and delete records from the app.
  • 6 Safety and Security Features: (1) You can check PV/SV from a distance.
  • It can be operated intuitively without a manual.
  • (2) Transfer recorded data to a PC for easy graph creation!
  • Recorded data you read is automatically converted into a CSV-format file that can be easily transferred to your computer by email. ③ Safe and secure function when an error occurs By connecting the option, you can check the error instantly and take action.

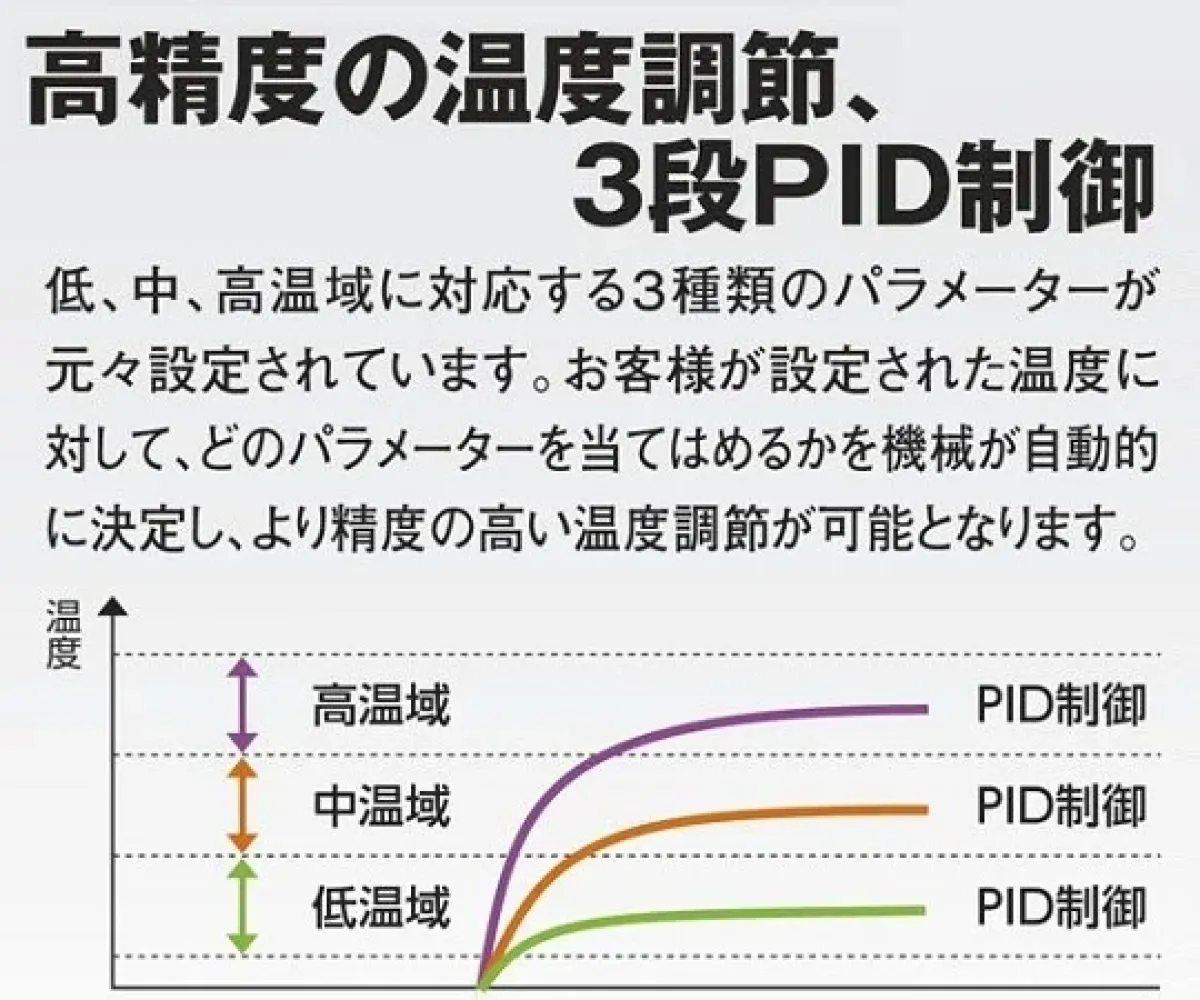

  • (4) High-precision temperature control 3-step PID control - PID control is available for individual low, medium and high temperature ranges. Overshooting and undershooting are reduced.
  • (5) Digital setting type overrise prevention function - This overrise prevention function allows the work temperature to be set digitally. When the set value is reached, the heater turns off.

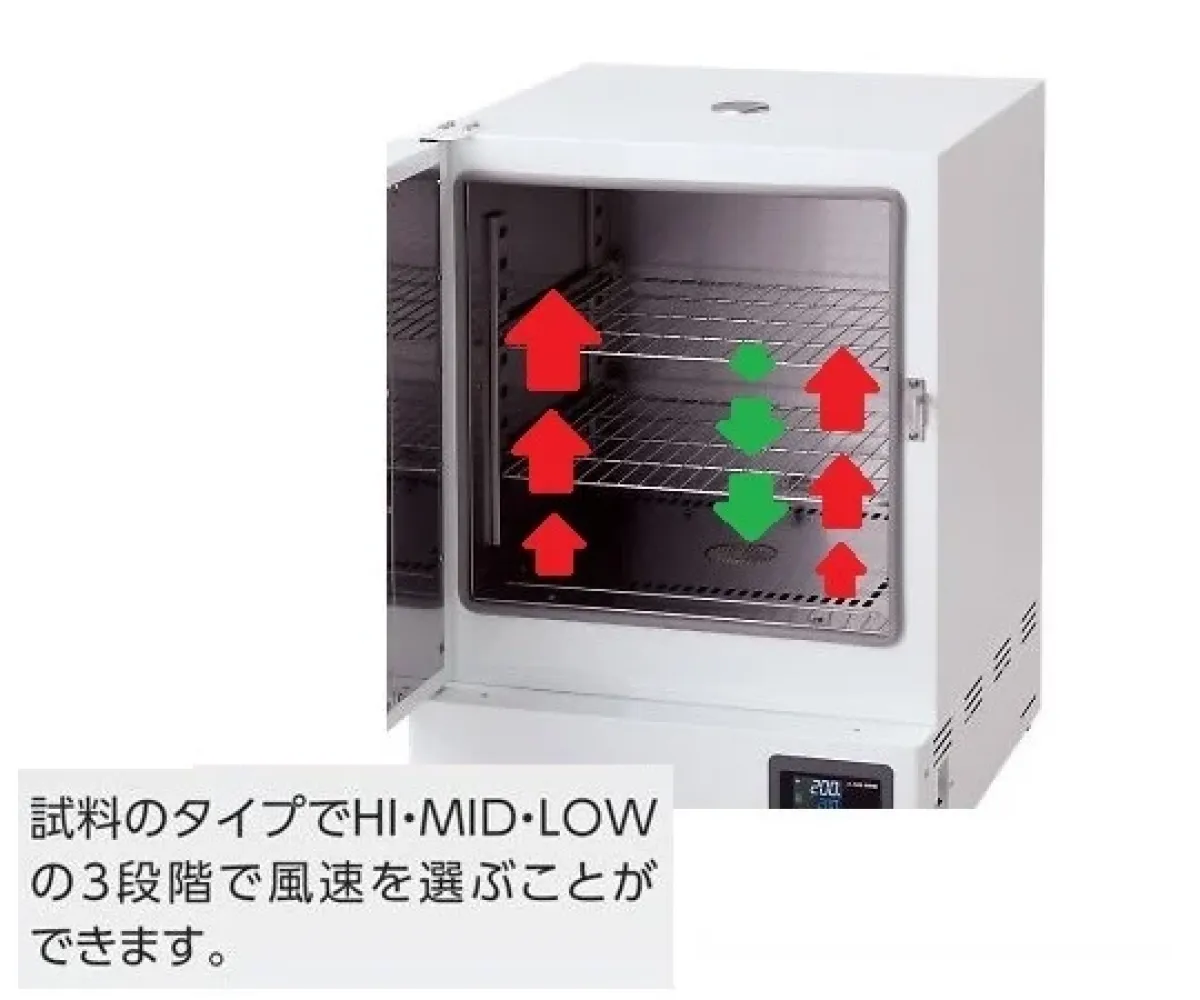

  • Variable air volume (forced convection system) - 3 levels of HI, MID, and LOW can be set in an analog sense. Light powder is hard to scatter.

Chia sẻ:

Thông số kỹ thuật

    • Kích thước bên trong (mm): 600 x 497 x 500
    • Cửa: Trái
    • Phạm vi kiểm soát nhiệt độ: Tiến sĩ y khoa + 20 à 300 °C
    • Thời gian đến nhiệt độ tối đa: khoảng 80 phút
    • Độ chính xác phân phối nhiệt độ (JTM K05): ±6 °C (ở 300 °C)
    • Biến động nhiệt độ (JIS): ±3 °C (ở 300 °C)
    • Gradien nhiệt độ (JIS): 22 ° C (ở 300 ° C)
    • Phương pháp kiểm soát nhiệt độ: 3 giai đoạn điều khiển PID, đầu ra SSR
    • Chức năng giao tiếp: tiêu chuẩn : Bluetooth thông minh (Bluetooth 4.2)/khoảng cách: Class2 (khoảng 10 m)
    • Tính năng Logger:
    • *Phương pháp ghi: dừng đầy đủ (Dừng ghi trong bộ nhớ đầy đủ)
    • *Thời gian ghi âm: 2 giây/10 giây/30 giây/60 giây/10 phút/60 phút
    • *Thời gian hiển thị: 2 giây/10 giây/30 giây/giây/60 giây/300 giây
    • Ứng dụng bên ngoài:
    • *Chức năng: Bắt đầu/Dừng ghi, Đọc/Xóa dữ liệu đã ghi, Chuyển sang hiển thị danh sách/PC, Hiển thị biểu đồ xu hướng (Có thể mở rộng)
    • *định dạng ghi âm: Định dạng CSV
    • *Hệ điều hành tương thích: iOS 11.4 và sau đó
    • *mô hình tương thích: iPhone 5s, 5c, 6, 6 Cộng, 6s Cộng, SE, 7, 7 Cộng, 8, 8 Cộng, X
    • Chức năng bổ sung: hẹn giờ (ON/OFF hẹn giờ, SV bắt đầu/ON/OFF hẹn giờ)/nhiệt độ gradient chương trình lên đến 16 bước x 8 mẫu/ngày/thời gian đặc điểm kỹ thuật hẹn giờ
    • Thiết bị an toàn: Thiết lập kỹ thuật số chức năng phòng chống quá tải, quá dòng ngắt cơ chế cháy (Nóng OFF khi cảm biến bị ngắt kết nối)
    • Công suất nóng: 1400W
    • Cảm biến nhiệt độ: Cặp nhiệt điện loại K x 2 miếng (1 miếng để kiểm soát nhiệt độ và ngăn ngừa quá nhiệt)
    • Công suất bên trong: khoảng 150L
    • pitch TANA/mm số bước: 35 sân/11 Dan
    • Ngoại thất/Nội thất: SUS304/Stainelss thép SUS304 (một phần áp dụng thép không gỉ SUS443J1)
    • Cửa thoát khí: φ32mm x 2 miếng
    • Kích thước bên ngoài: 700 x 617 x 810mm
    • Kích thước cửa sổ quan sát: 300 x 350mm
    • Cân nặng: khoảng 50kg
    • Cung cấp điện: AC100V 50/60Hz Chiều dài dây 2,4 m (phích cắm 3P)
    • đánh giá hiện tại: 14,5 A
    • kệ hội đồng quản trị, tải khoan dung: 5kg
    • Phụ kiện: kệ bảng x 2 miếng/kệ bảng đường sắt x 2 bộ
