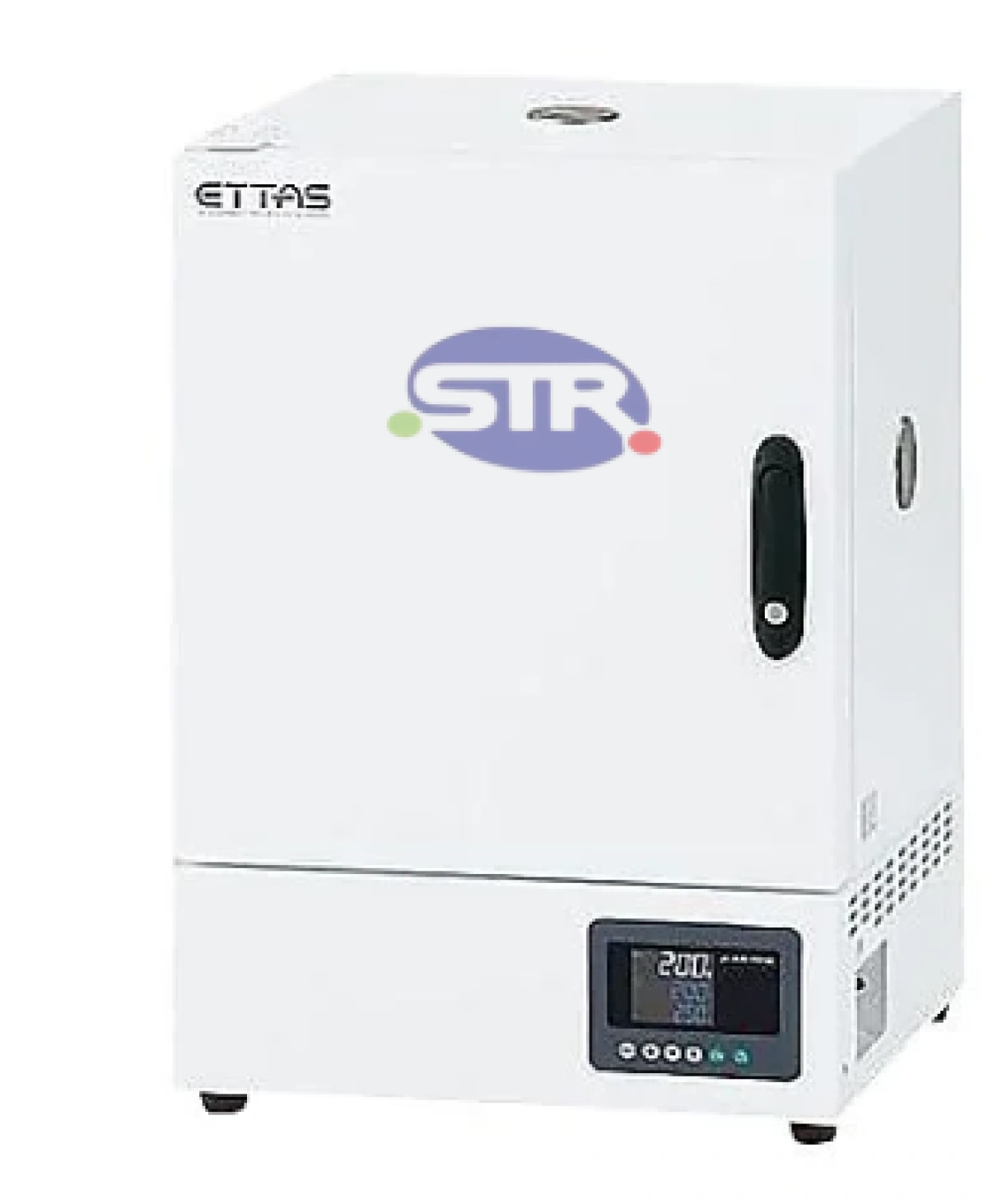

2-7856-21-28 Multi-Oven with Pre-shipment Validation MOV-300SB

SKU: MOV-300SB

Đặc trưng

  • Natural convection/forced convection switching type 1 machine, 2 roles

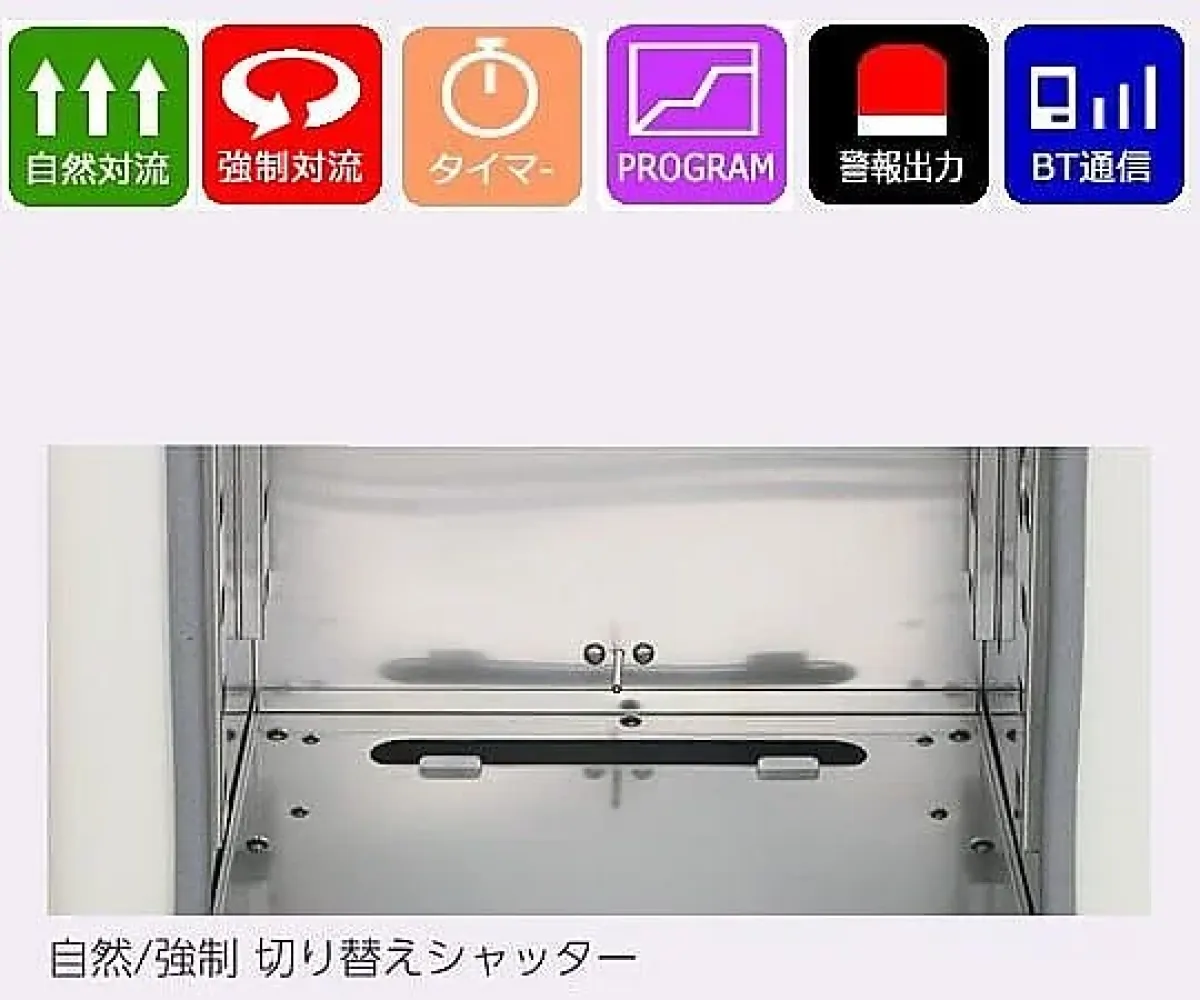

  • The switching shutter switches between natural convection and forced convection.
  • Three-stage PID control achieves low overshoot temperature rise.

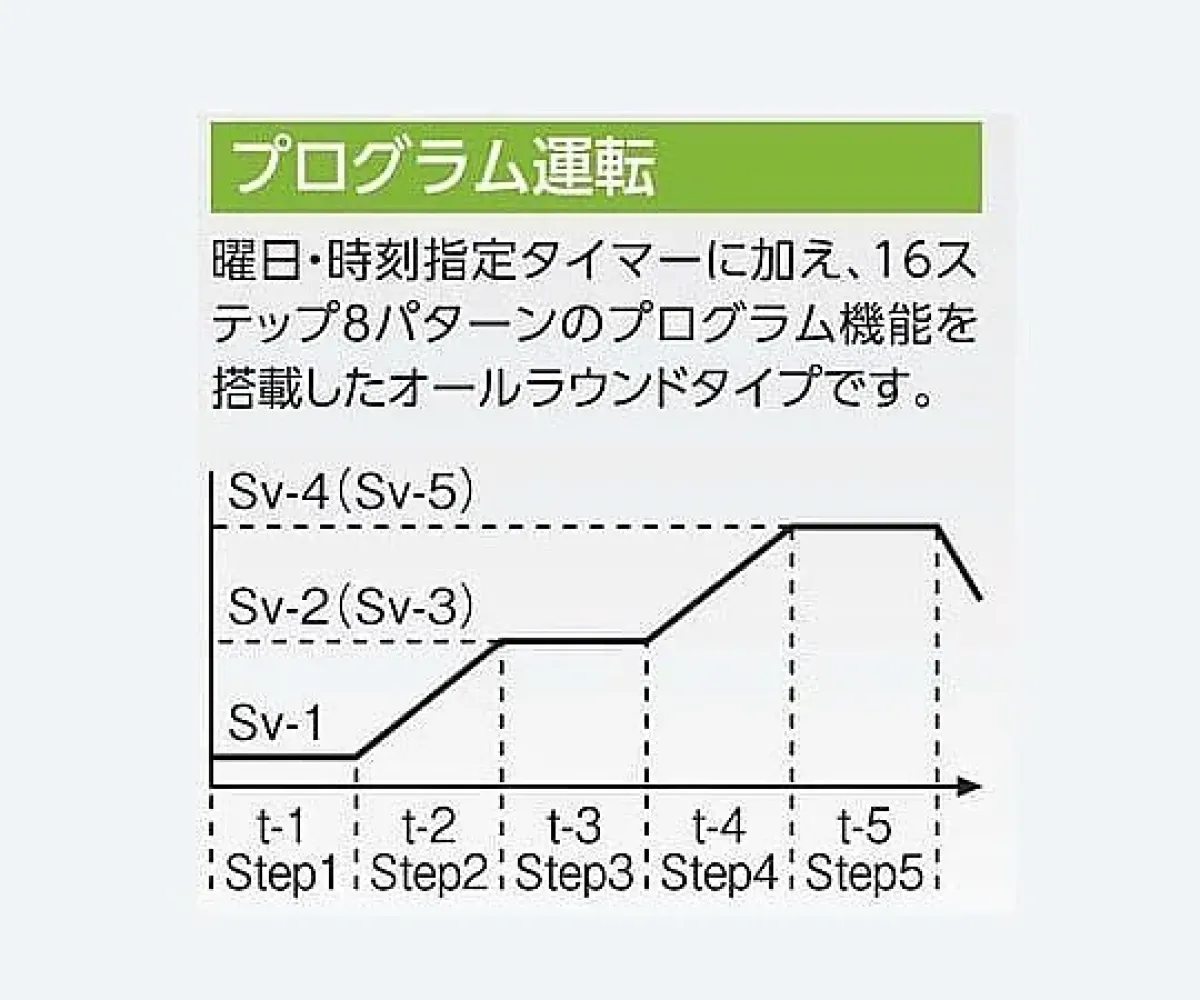

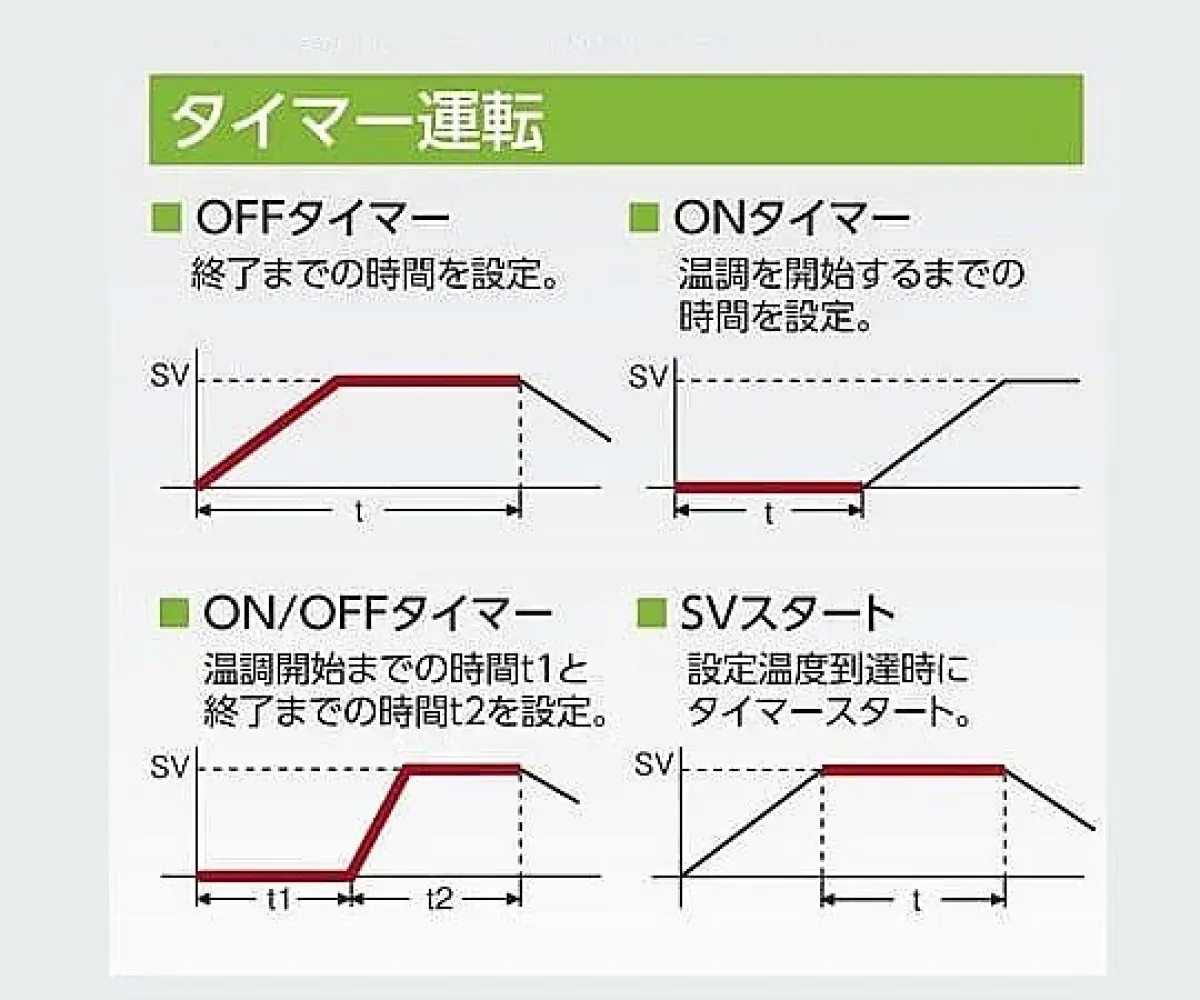

  • Equipped with timers for day of the week and time designation and program functions of 16 steps and 8 patterns as standard.
  • In addition to the PV/SV two-stage display for easy confirmation of the measured value and the set value, the set temperature display for preventing excessive temperature rise is adopted.

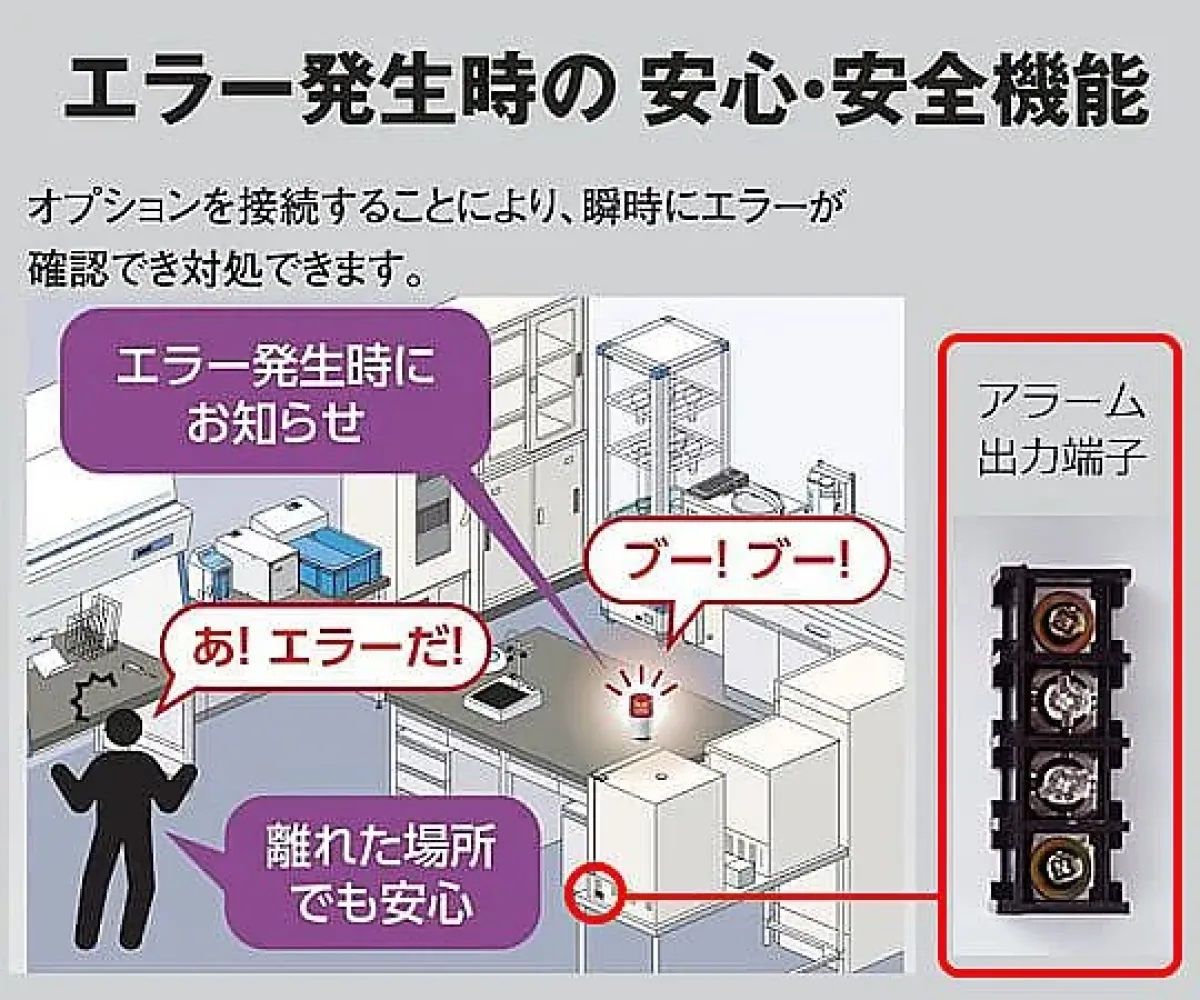

  • In the event of an error, 100 VAC 1 A output can be provided.

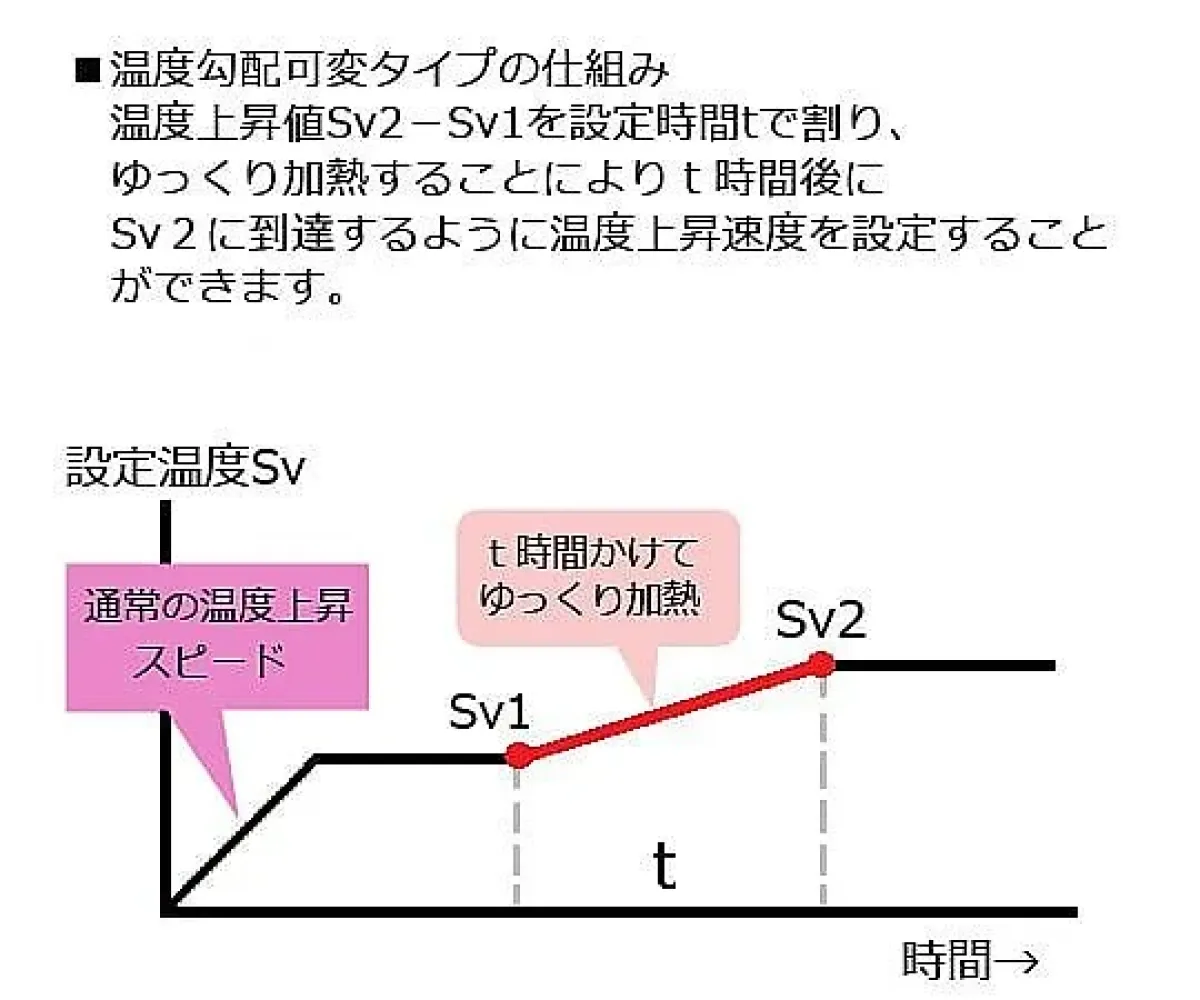

  • PID-controlled temperature controller with variable temperature gradient program function of up to 16 steps and 8 patterns.
  • You can check the current temperature from a remote location, display a graph (zoom in/out), and start/stop recording.

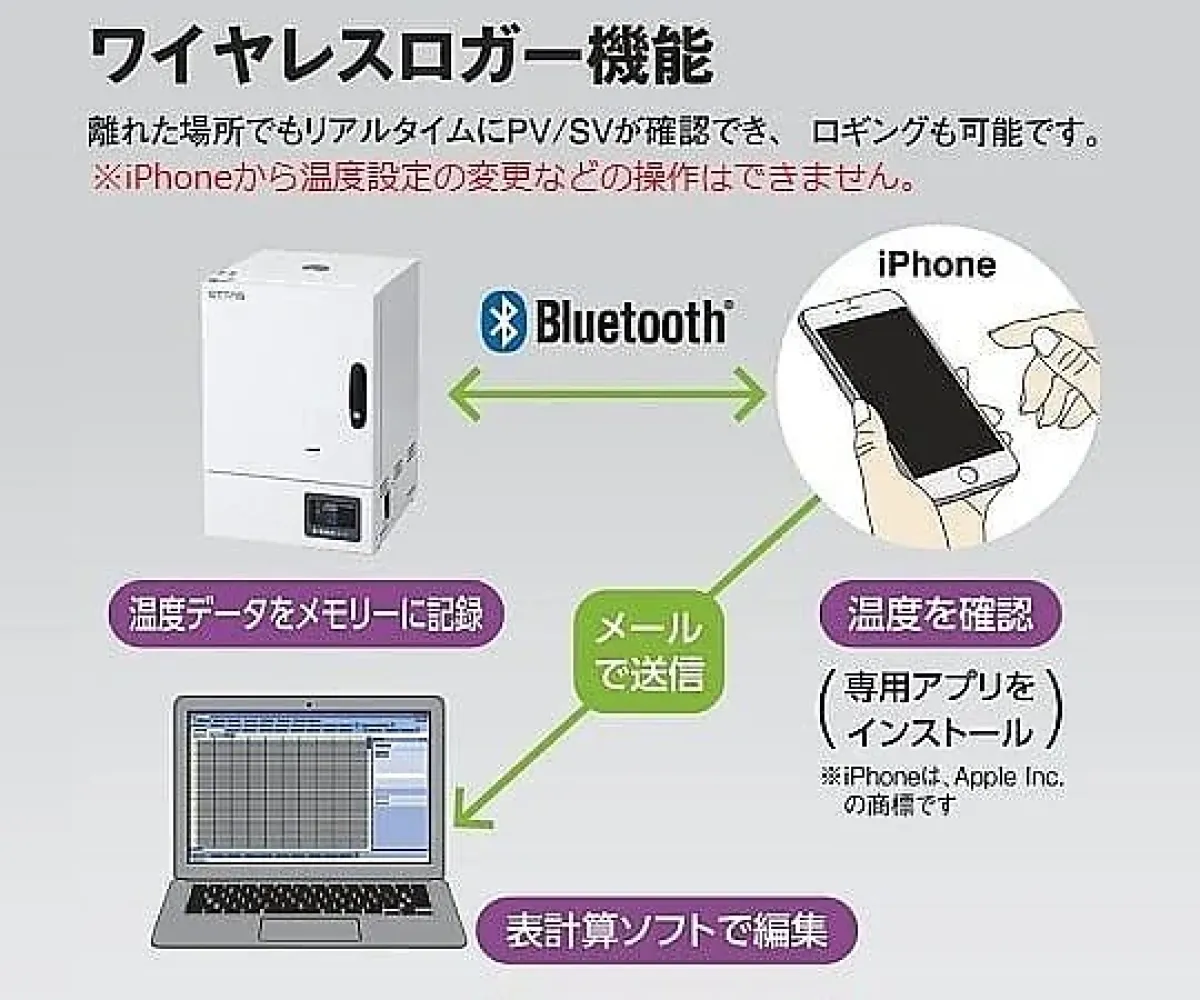

  • Using Bluetooth® communication, it is possible to check the current temperature, display a graph, start/stop recording, and transfer to PC (CSV format) from iPhone terminal.
  • The iPhone app is intuitive without a manual.

Chia sẻ:

Thông số kỹ thuật

  • Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
  • Validate (FAT) before shipping.
  • After receiving the order, a FAT instruction form (plan) is sent to the user, and after the signature is returned, the FAT is performed.
  • Appendix: FAT report/Calibration Certificate of used measuring instrument copied
  • *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
  •
  • Temperature points: 240 degrees Celsius, 9 points x 2
  •
  • Internal dimensions (mm): 300 x 300 x 300
  • Temperature setting range (deg. C): room temperature + 20 ~ 240

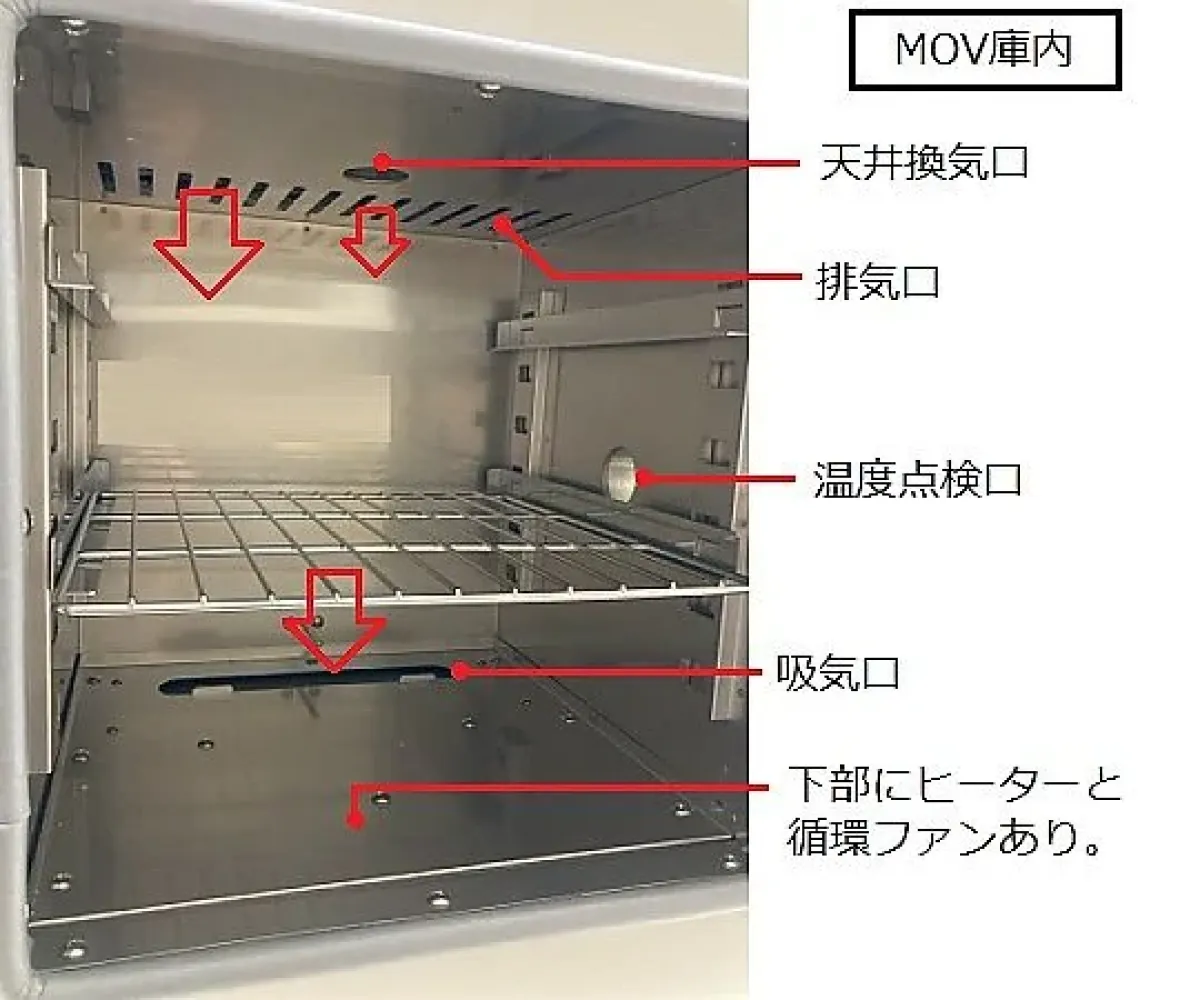

  • Convection system: Natural convection/forced convection switching system
  • Temperature control system: 3-stage PID control/SSR output
  • Functions: Timer function and program function
  • Safety device: Overcurrent breaker, independent overrise prevention function, burnout mechanism (heater OFF when sensor is disconnected)
  • Storage capacity: 27 L
  • Material: Exterior/Steel Melamine Baked Coating, Interior/Stainless Steel (SUS 304)
  • External dimensions: 455 x 440 x 650 mm
  • Weight: approximately 30 kg
  • Power supply: 100 VAC 50/60 Hz 11.5 A (3 P plug)
  • Accessories: 2 sets of shelf rails and shelves (load capacity: 15 kg)
  • *Do not put combustible materials in the cabinet.
  • *If you would like to request a local IQOQ, please contact us separately. We will need your installation address for the estimate.
