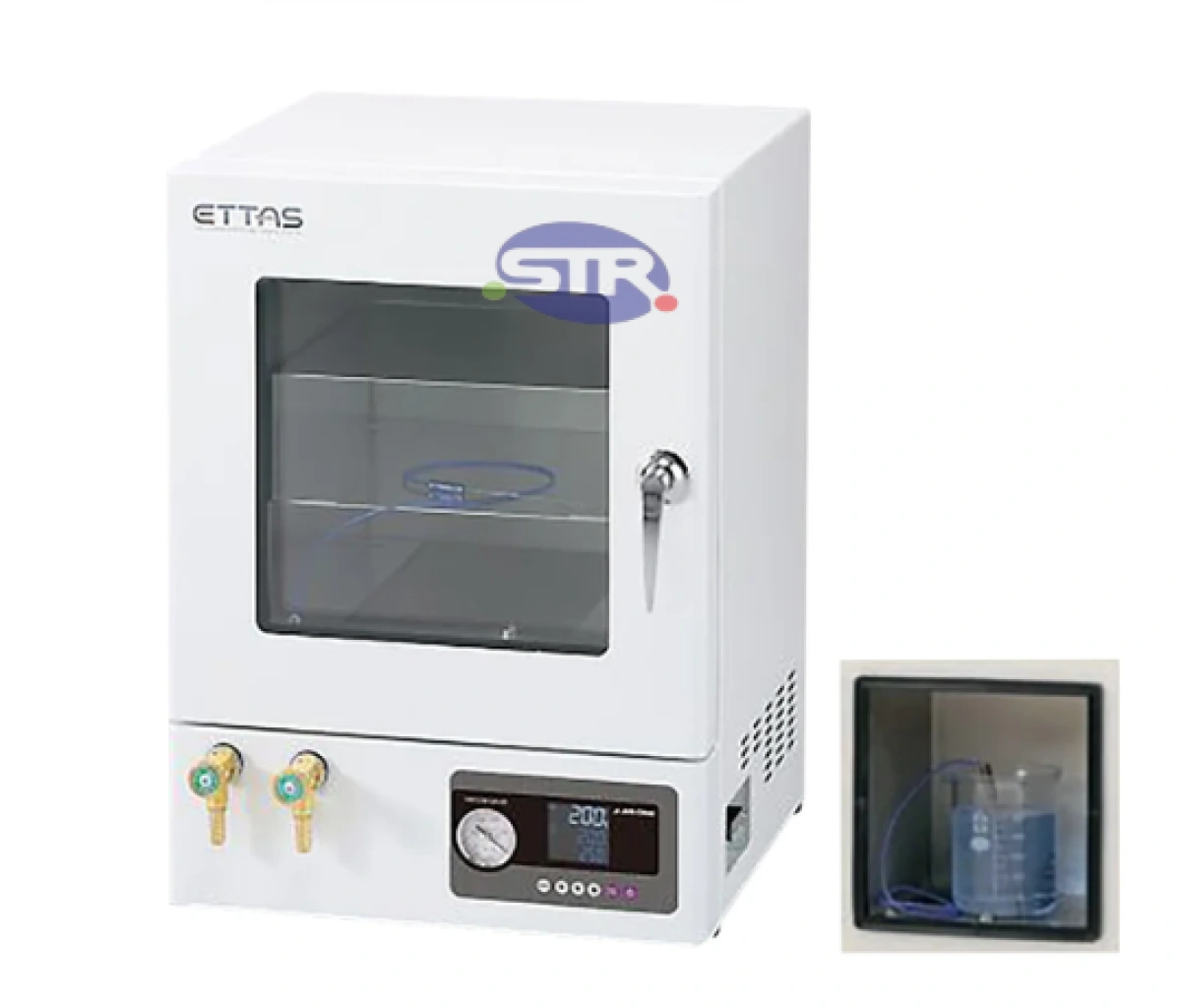

1-7547-63 Máy sấy chân không (SB-D Series) AVO-310SB-D

SKU: AVO-310SB-D

Đặc trưng

  • Ideal for temperature control of objects.
  • A vacuum pump connection valve and vacuum gauge are placed on the front operation panel for easy piping and operation.
  • Double doors with tempered glass doors and protective polycarbonate doors are used.
  • Heat-resistant silicon packing provides superior durability and airtightness.
  • In addition to a two-stage PV/SV display that makes it easy to check measured values and set values, an overtemperature prevention set temperature display is adopted.

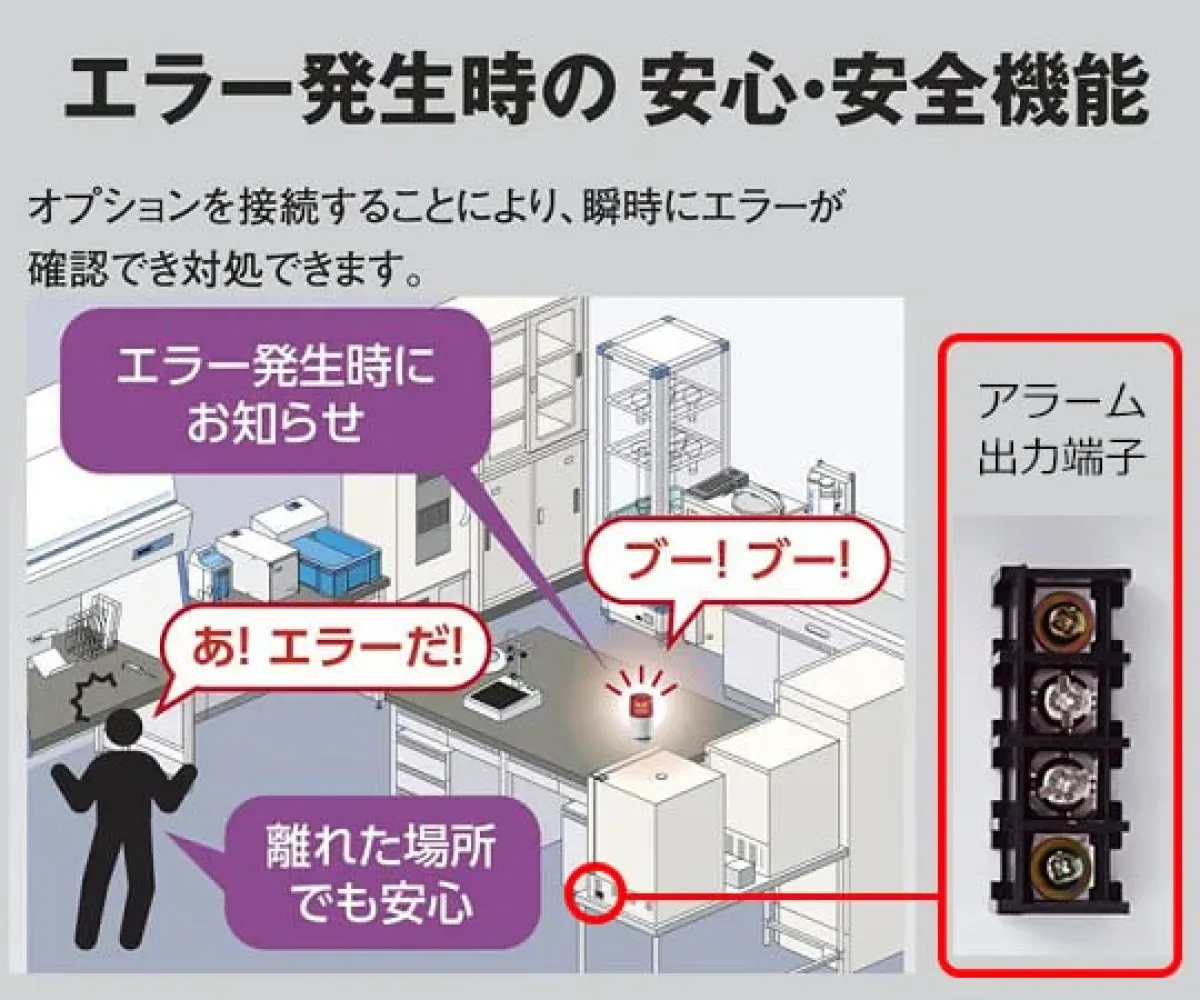

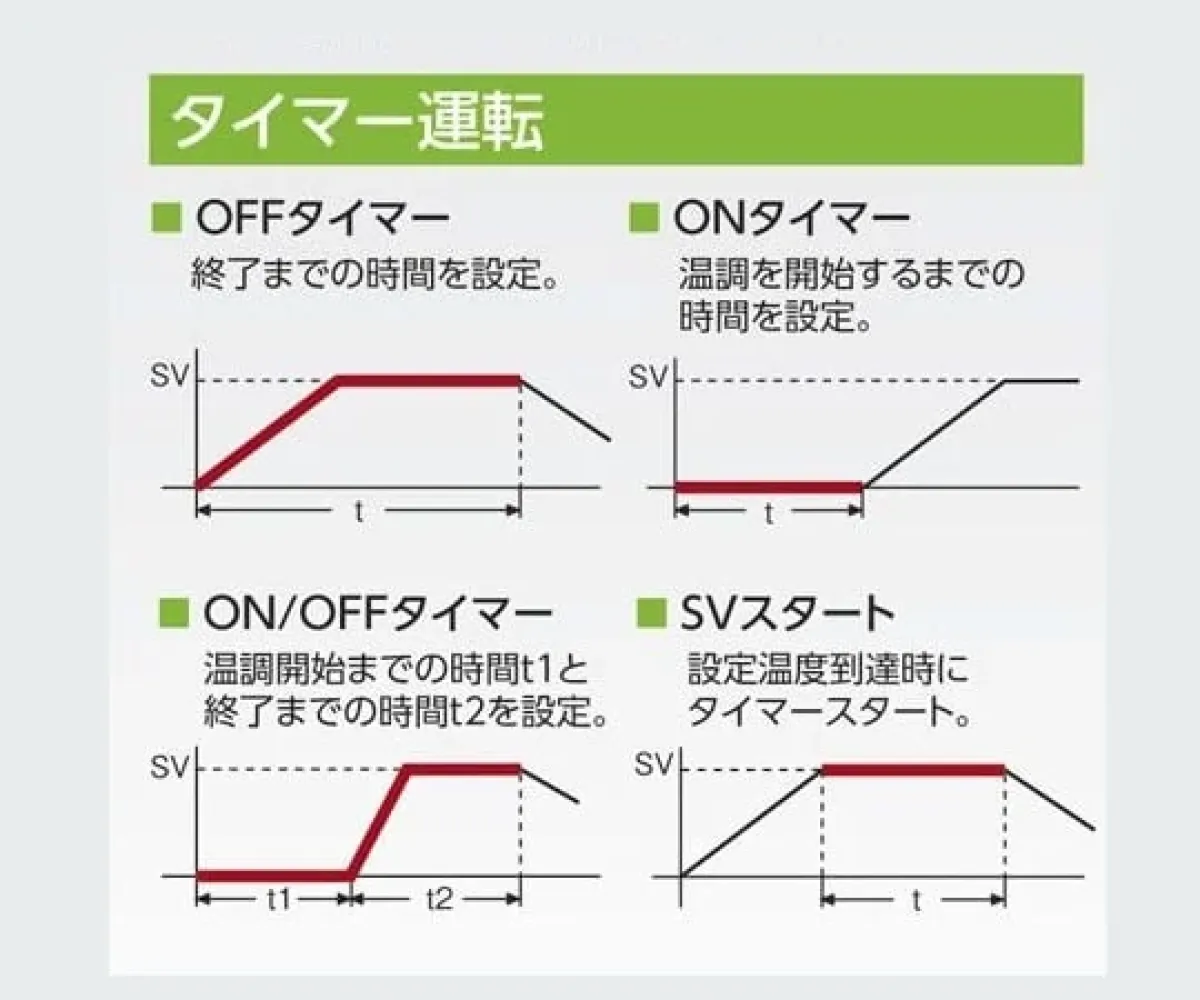

  • Timers (4 types) and program operation (16 steps, 8 patterns) are standard equipment. In addition to temperature logging (Bluetooth communication), it has 100 VAC 1 A output in case of error.

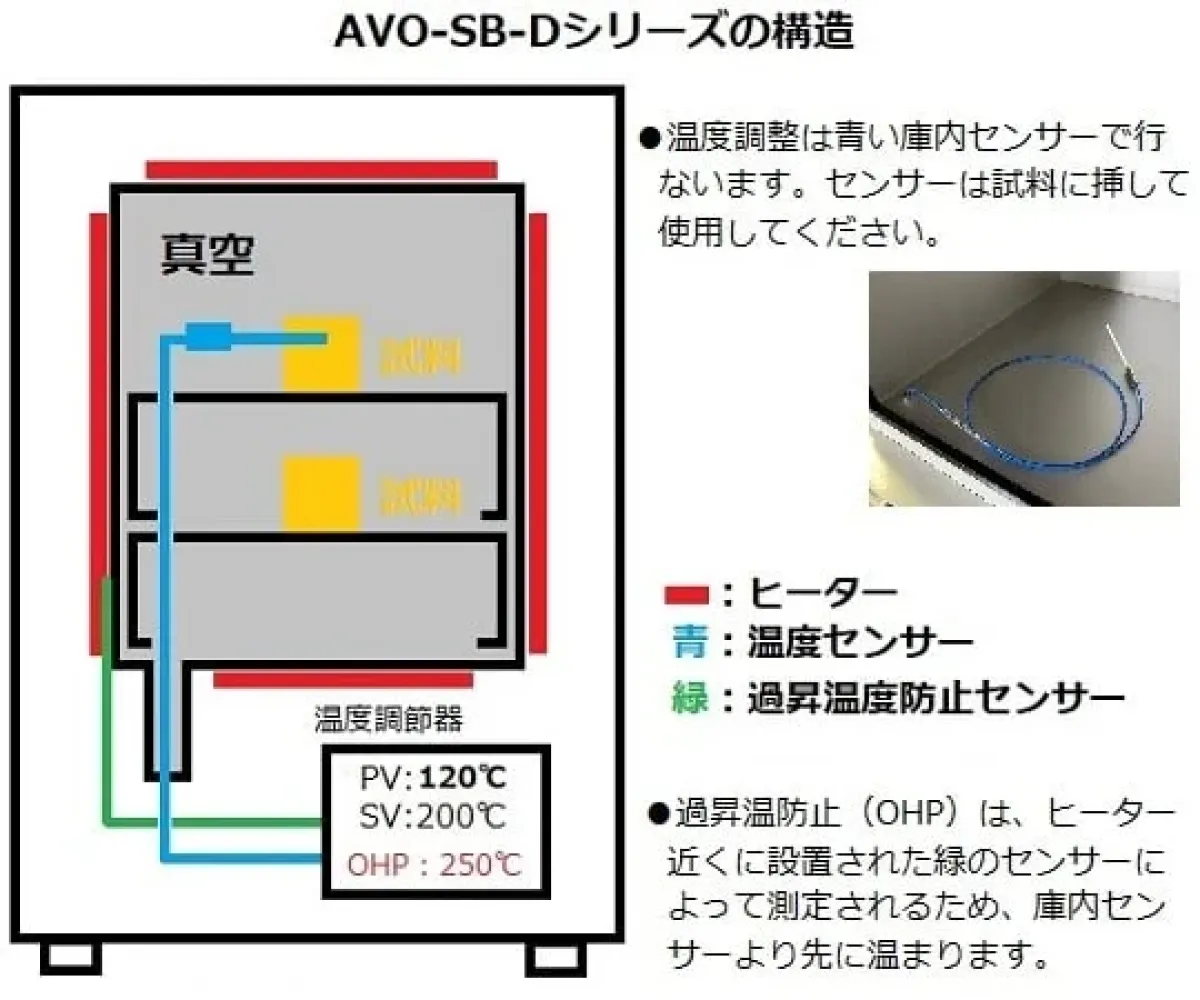

  • The internal sensor directly measures the temperature of the specimen while controlling the temperature, eliminating the gap between the specimen temperature and the set temperature.

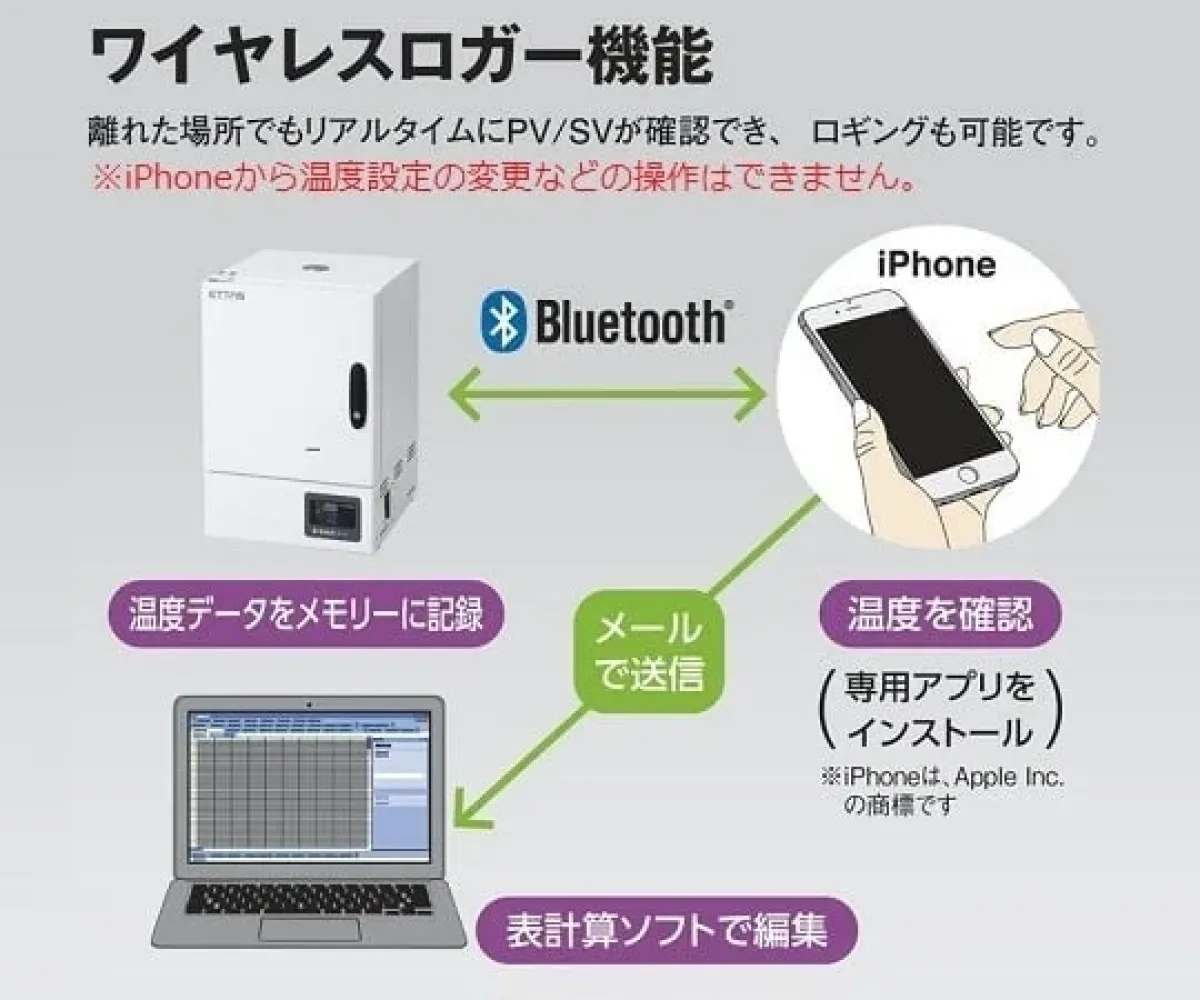

  • Features of Wireless Logger App: You can check measured and set temperatures from a distance.
  • The measured temperature and set temperature are stored in the memory in the board at regular intervals.
  • You can operate it intuitively without a manual.
  • Recorded data that is read out is automatically converted into attached files in CSV format, which can be sent to a computer or other device simply by entering an email address, and the file can be opened with spreadsheet software such as EXCEL to graph, edit and create forms.
  • Even if the recorded data is read, the data is retained in the board even if the power is turned off until it is erased.
  • You can start, stop and delete records from the app.
  • Recording stops automatically when memory is full.

Chia sẻ:

Thông số kỹ thuật

  • Công suất bên trong (L): 30
  • Chức năng bổ sung: Chức năng hẹn giờ, chức năng chương trình và bộ hẹn giờ để xác định ngày và thời gian
  • Bộ cảm ứng: K cặp nhiệt điện lớp (Mẫu để kiểm soát nhiệt độ trực tiếp và ngăn ngừa quá nhiệt 1)
  • Thiết bị an toàn: Chức năng phòng chống quá tải (loại cài đặt kỹ thuật số), chức năng tự chẩn đoán (phát hiện ngắt kết nối nóng và phát hiện lỗi cảm biến), máy cắt quá dòng
  • Tiêu chuẩn: Bluetooth thông minh (Bluetooth 4.2), Khoảng cách/Class2 (khoảng 10 m)
  • Thời gian ghi: 2 giây/10 giây/30 giây/1 phút/10 phút/60 phút
  • Thời gian hiển thị: 2 giây/10 giây/30 giây/giây/60 giây/300 giây
  • Phương pháp ghi: dừng đầy đủ (Dừng ghi trong bộ nhớ đầy đủ)
  • dạng thức ghi: Định dạng CSV
  • *Hệ điều hành tương thích: iOS 11.4 và sau đó
  • *mô hình tương thích: iPhone 5s, 5c, 6, 6 Cộng, 6s Cộng, SE, 7, 7 Cộng, 8, 8 Cộng, X
  • Chức năng bổ sung: hẹn giờ (ON/OFF hẹn giờ, SV bắt đầu/ON/OFF hẹn giờ)/nhiệt độ gradient chương trình lên đến 16 bước x 8 mẫu/ngày/thời gian đặc điểm kỹ thuật hẹn giờ
  • Lỗi xuất: Đầu ra AC100V 1A (khối đầu cuối M4)
  • vật tư
  • *Ngoại thất: Thép nướng sơn
  • *Nội thất: SUS304
  • *kệ bảng: Nhôm
  • *Van, đường ống, phụ kiện: đồng thau (C -3771, C -3604)
  • *Máy đo chân không: đồng thau (C 2680 TW, C 3604 BD)
  • *Đóng gói cửa: cao su silicone
  • *Cửa sổ quan sát: kính cường lực (Độ dày 12mm), tấm bảo vệ làm bằng polycarbonate
  • Kích thước bên ngoài (mm): 453 x 486 x 619
  • Kích thước bên trong (mm): 310 x 310 x 310
  • Công suất nóng: 1360W
  • Cung cấp điện: AC100V 50/60Hz 14 A
  • Chiều dài dây nguồn: 2,5 m
  • Cân nặng: khoảng 45kg
  • Phụ kiện: kệ bảng x 2 miếng
  • Hệ thống sưởi ấm: Có thể hệ thống sưởi ấm cơ thể
  • Phạm vi cài đặt nhiệt độ: 40 đến: 220 °C
  • Phạm vi chân không: 0,1 đến 101kPa
  • Phương pháp điều khiển: Điều khiển PID và đầu ra SSR
  • Đường kính van: đường kính ngoài φ13 mm
  • RoHS3 (EU)2015/863 Certificates can be issued
  •

Kích thước gói:610×520×650 mm 48.15 kg  [Về kích thước đóng gói]
